ASTM A335 P11 Studded Fin Tube With Carbon Steel Stud Fins For Power Plant's HRSGs

ASTM A335 P11 Studded Fin Tube With Carbon Steel Stud Fins For Power Plant's HRSGs

An ASTM A335 P11 Studded Fin Tube with Carbon Steel Stud Fins is a high-performance heat exchanger tube designed for extreme conditions. The p11 core tube and carbon steel stud fins combination provides exceptional heat transfer efficiency, fouling resistance, and mechanical durability in high-temperature industrial heating equipment.

Here are some detailed breakdowns:

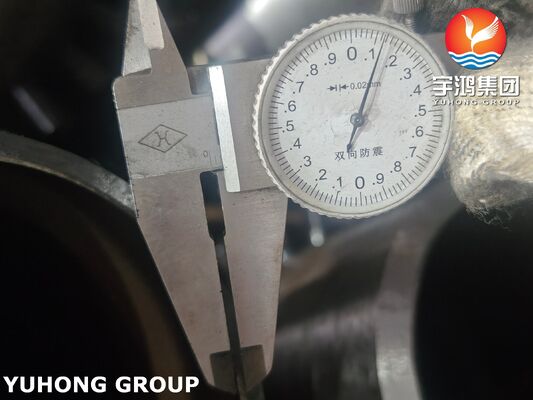

1. Base Tube: ASTM A335 P11

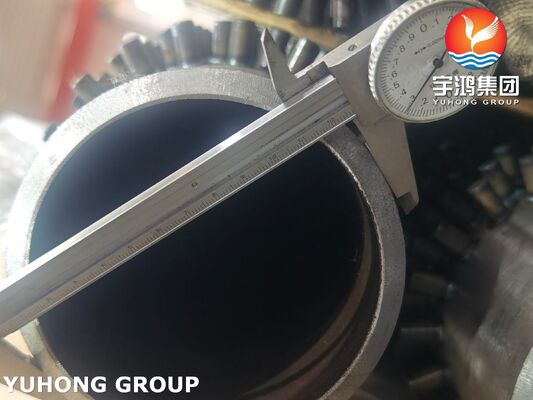

This is the high-performance pipe that forms the core of the tube.

(1). Chemical Composition Requirements

The composition is specified in weight percent (%). The values are maximum unless a range is given.

Note: The standard also includes rules for product analysis tolerances, so slight deviations from the above ranges are permissible for individual product samples.

(2). Mechanical Properties Requirements

These properties are determined from a longitudinal tensile test on a specimen from the heat-treated pipe.

2. Fin

(1). Fin’s Type: Studded Fin Type

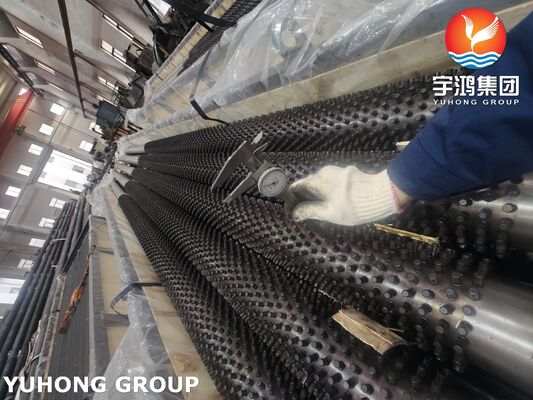

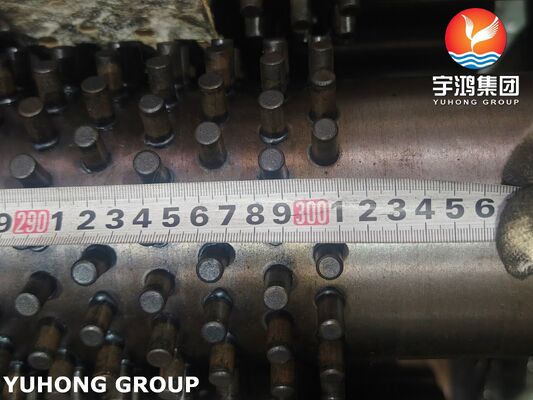

• Short, cylindrical pins (like small rods) are welded directly onto the outer surface of the A335 P11 tube. This is typically done using a resistance welding process for speed and consistency.
• The studs themselves are usually made of a material compatible with the tube and the fins to ensure good weld integrity and thermal performance.

(2). Fin’s Material: Carbon Steel Stud Fins

This is a cost-effective choice because:

• The fins operate at a significantly lower temperature than the base tube (the heat flows from the tube into the fins).
• They are not subjected to the same high internal pressure or corrosive flue gases as the tube interior.

3. Why Use This Specific Design? Key Advantages & Purpose

• Enhanced Turbulence & Heat Transfer: The staggered array of studs and fins creates intense turbulence in the gas flow (flue gas, air, or process gas). This turbulence breaks up the boundary layer of gas on the tube surface, which is the main resistance to heat flow, leading to superior heat transfer coefficients.
• Reduced Ash Fouling: Compared to solid continuous fins, the gaps between the stud fins allow ash and particulates (common in coal/biomass boilers or process heaters) to pass through more easily or be shed by soot blowers. This reduces fouling and maintains efficiency over longer run times.
• Mechanical Strength & Durability: The studs provide robust mechanical attachment for the fins, making the assembly highly resistant to vibration and abrasion from high-velocity gas flows. This is critical in harsh environments like boiler convection passes.
• Material Optimization: It uses expensive alloy steel (P11) only where absolutely needed (for pressure and high-temperature strength) and cheaper carbon steel for the extended surface area, offering a cost-effective solution.

Primary Applications by Industry

1. Power Generation

• Boiler Superheaters & Reheaters: This is the most classic application. In coal-fired, biomass, or waste-to-energy plants, these tubes are installed in the convection pass where flue gases have cooled somewhat but are still very hot (450°C - 600°C / 850°F - 1100°F). They take saturated or wet steam from the boiler drum and "superheat" it to dry, high-energy steam needed to efficiently drive turbines. The P11 material handles the high-pressure, high-temperature steam inside, while the studded fins maximize heat pickup from the gas side.
• Heat Recovery Steam Generators (HRSGs): In combined-cycle gas turbine plants, the exhaust from the gas turbine (500°C - 600°C) is used to generate steam for a secondary steam turbine. Studded fin tubes in the evaporator and superheater sections of the HRSG efficiently recover this heat despite the high gas velocity and potential for fouling.

2. Petrochemical & Refining

• Process Heaters & Fired Heaters: In refineries, large furnaces (e.g., crude heaters, reformer heaters) heat process fluids to very high temperatures. The radiant and convection sections of these heaters use studded fin tubes (often in P11 or higher grades) to maximize fuel efficiency and achieve the required process temperatures.
• Catalytic Cracker Units: For heat recovery from catalyst regenerator flue gas streams, which can be abrasive and fouling.

3. Other Industrial Processes

• Waste Heat Recovery Boilers: In any industry with a high-temperature exhaust stream (cement kilns, metal furnaces, chemical reactors), these tubes are used to create a "waste heat boiler" to generate steam for process use or power generation.
• Air Heaters: For pre-heating combustion air using hot flue gases, improving boiler efficiency.
