Studded Tube
>
ASME SA106 Gr.B Carbon Steel Studded Tubes, Fired Heater Coil, Fired Furnace Tube

ASME SA106 Gr.B Carbon Steel Studded Tubes, Fired Heater Coil, Fired Furnace Tube

Brand Name: Yuhong
Model Number: Studded Tube, Pin Tube, Solid Fin Tube
MOQ: 1PC
Price: Negotiable
Packaging Details: Bundle + Cap , Ply wooden case
Payment Terms: TT, LC
Detail Information
Place of Origin:
China
Certification:
ABS, BV, DNV, CCS, LR
Base Tube:
ASTM A106 / ASME SA106 Gr.B
Fin Material:
Carbon Steel
Stud Hight:
8mm ~ 50.8mm
Stud Diameter:
12.7mm, 15.8mm, 19.05mm
Studded Tube Length:
Max. 34m/pc
Fin Type:
Studded Tube , Solid Fin Tube, Pin Tube
Supply Ability:
10000 tons/month
Highlight:

ASME SA106 studded boiler tubes

,

Carbon Steel studded boiler tubes

,

Fired Heater Furnace Tube

Product Description

ASME SA106 Gr.B Carbon Steel Studded Tubes, Fired Heater Coil, Fired Furnace Tube

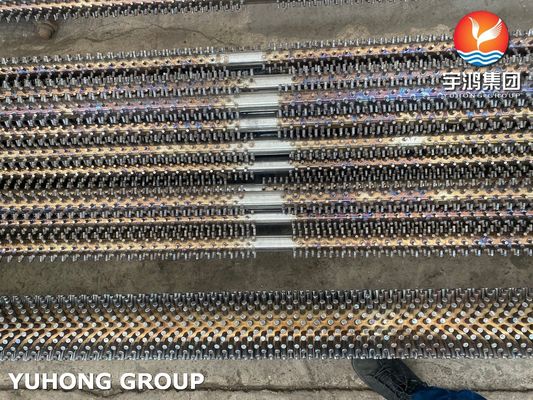

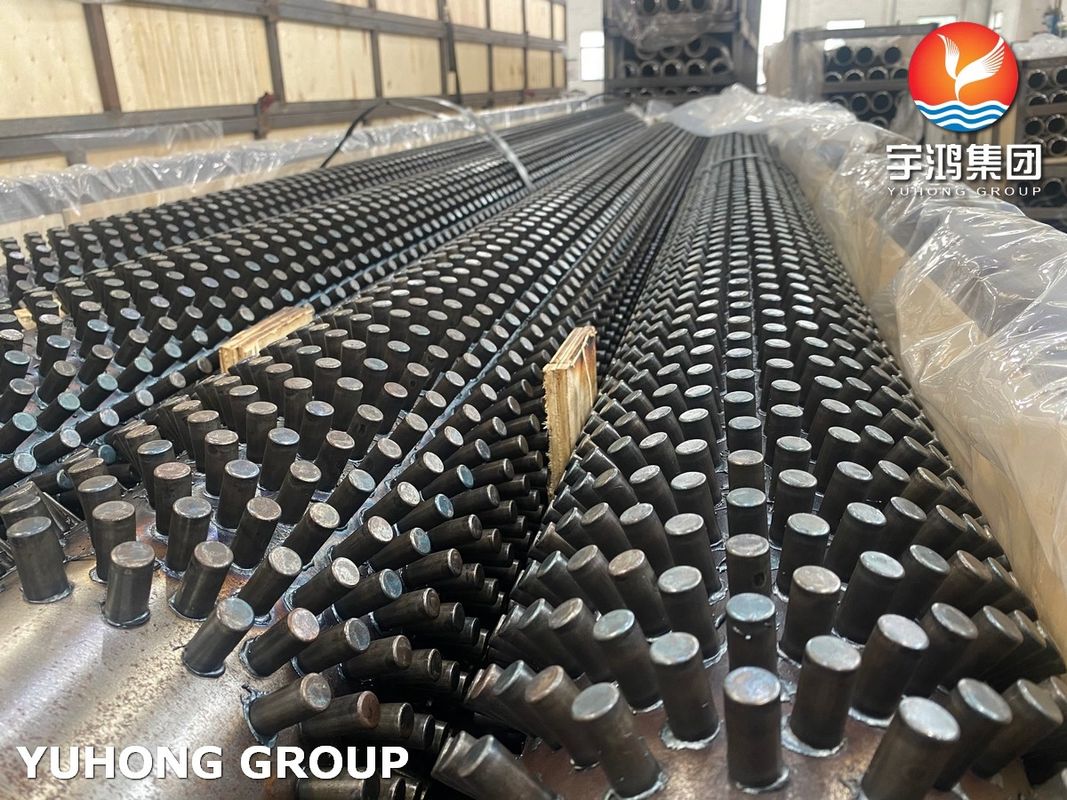

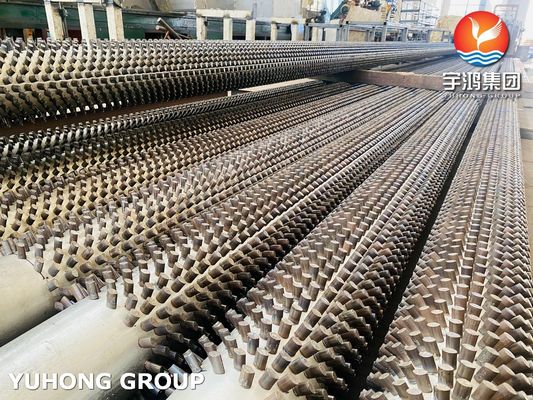

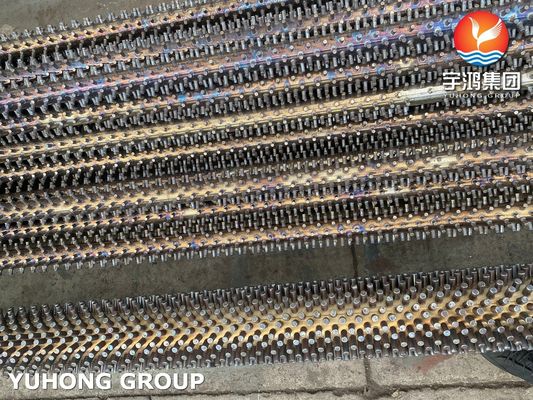

ASTM A106/ ASME SA106 Gr.B Carbon Steel Studded Fin Tube refers to a type of Heat Exchanger Tube. The tube has studs attached to its outer surface, and these studs are typically made of a different material than the tube itself. Studded fin tubes are used to improve the efficiency of heat transfer in applications such as boilers, heat exchangers and air coolers. Studded fin tubes have studs welded on the base metal tube. The studs are arranged in a regular formation throughout the surface of the base tube. Studded fin tubes are usually applied in boilers and oil refineries because they increase the surface area for higher heat transfer. Studded Fin Tubes are mostly used in boilers and furnaces. Mostly in a corrosive environment. Studded fin tubes are widely used for heat transfer in the petrochemical industry for furnaces and boilers in which the surface is exposed to a high corrosive environment and in which dirty gas streams require frequent or aggressive cleaning.



ASTM A106 / ASME SA106 Grade B is a standard specification for seamless carbon steel tube for high-temperature service. Studded fin tubes are typically used in heat exchangers and boilers for enhanced heat transfer efficiency. The studs on the base tubes increase the surface area, allowing for better heat exchange between the fluid inside the tube and the surrounding environment.



Type

Description

Base tube

Fin specification (mm)

 Type

 O.D. (mm)

Fin pitch

Fin height

Fin thick

Welding

HFW fin tube

16-219

3-25

5-30

0.8-3

H/HH Type Fin Tube

25-63

8-30

<200

1.5-3.5

Studed fin tube

25-219

8-30

5-35

φ5-20



Chemical Composition of ASME SA106 Gr.B :

Carbon

Silicon

Manganese

Phosphorous

Sulphur

Molybdenum

Nickel

Chromium

Copper

0.3

min 0.10

0.29-1.06

0.035

0.035

0.15

0.4

0.4

0.4



Mechanical Properties of ASME SA106 Gr.B :

ASTM A106 / ASME SA106

Grade B

Tensile Strength [MPa]

≥415

Yield strength [MPa]

≥240



Applications of ASME SA106 Gr.B Studded Tube :

1>.Radiators

2>.Air Coolers

3>.Air Preheater

4>.Natural Gas Industry

5>.Transportation Systems

6>.Water Supply Systems

7>.Fabrication Industry

8>.Oil and Gas Industry

9>.Offshore and Onshore Pipelines

10>.Economizer,Boilers

11>.Heat ex-changers
12>.Tube Bundles
