ASTM A335 P11 Alloy Steel Seamless Pipe with 11Cr Studded Tube, Pin Tube, Fired Heater, Oil Refinary Application

Brand Name:	Yuhong
Model Number:	Studded Tube, Pin Tube, Oil Furnace Tube , Steam Furnace Tube, Reforming Tube
MOQ:	1PC
Price:	Negotiable
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Pipe:

Alloy Steel Seamless Pipe: ASTM A335 P11, P12, P1, P22, P23, P5, P9, P91, P92

Stud Material:

Carbon Steel, Stainless Steel 11Cr, 13Cr, ASTM A387 Gr.9

Welding Type:

High Frequency Welding

Fin Type:

Studded Tube, Pin Tube, Oil Furnace Tube , Steam Furnace Tube, Reforming Tube

Stud Hight:

8mm~ 50.8mm

Stud Diameter:

12.7mm, 15.88mm, 19.05mm , 25.4mm

Supply Ability:

10000 tons/month

Highlight:

ASTM A335 Studded Tube

P11 11Cr Studded Tube

Alloy Steel Seamless Pipe

Product Description

ASTM A335 P11 Alloy Steel Seamless Pipe with 11Cr Studded Tube, Pin Tube, Fired Heater, Oil Refinary Application

Yuhong Holding Group has more more than 35 years experience for pipeline products, till now we have 3 big joint venture factories, the total production area more than 130000 square meters, and more than 600 workers with 106 production lines give our clients excellent supporting always. The factories already got certificates like : ABS, LR, DNV-GL, BV, KR, CCS, ASME, ISO 9001, ISO14001, ISO18001, ect.

ASTM A335/A335M: Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service.

Manufacturing Process of Studded Tube:

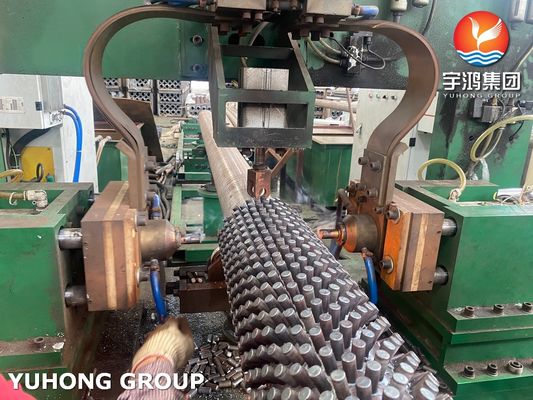

Studs are fully automatically welded onto the tube by resistance welding.

Delivery condition:Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of extruded bimetallic Fin Tube.

Surface Protection: Oil dip, black coating or varnish.

Type of Studs: Cylindrical or elliptical

Specifications of Studded Tube:

Items

General Materials

Popular ASTM /ASME Materials

Core Tube Material

Carbon Steel

Alloy Steel

Heat Resistant Steel,

Stainless Steel

1. Carbon Steel: A106 Gr. B

2. Stainless Steel: TP304/304L,TP316/TP316L, TP347, TP321, TP347

3. Alloy Steel: P5,T5,P9,T9,T11,T22

Studs

Material

Carbon Steel

Stainless Steel

1. Carbon Steel

2. Stainless Steel:

TP409/410,TP304/304L,TP316/TP316L, TP321/TP310S

Dimensions Data Sheet of Yuhong Studded Tube:

General Descriptions of Studded tubes	Popular Specifications we make
Tube OD(mm)	OD38mm~OD219mm
Tube Wall Thickness(mm)	4mm~15mm
Tube Length(mm)	16,000mm Max.
Studs OD(mm)	OD6mm~OD16mm
Studs Height(mm)	10mm~45mm
Studs Type	Circular, elliptical, waist drum type
Please email us for more information as your request.

Main Alloy Steel Studded Tube from Yuhong Group :

ASTM A335 P11 Studded Tube
ASTM A335 P22 Studded Tube
ASTM A335 P5 Studded Tube
ASTM A335 P9 Studded Tube
ASTM A335 P91 Studded Tube

Studded Fin Tube Applications:

Furnace, Fired Heater
Chemical
Petrochemical industry
Power station etc.
