Stainless Steel Seamless Pipe ASTM A312 TP317L with 11Cr Studded Tube , Fired Heater and Furnace Application

Brand Name:	Yuhong
Model Number:	Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube
MOQ:	1PC
Price:	Negotiable
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Pipe Standard:

ASTM A312 , ASME SA 312, ASTM A376, ASME SA376

Base Tube Material:

TP304, TP304L, TP304H, TP309, TP310, TP310H, TP316, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H

Fin Type:

Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube

Application:

Boiler, Steam Heater, Fired Furnace, Fired Heater

Studded Tube Test:

Hammer Hitting Test

Studded Tube Length:

Max.: 34m /pc

Supply Ability:

10000 tons/month

Highlight:

Studded Tube ASTM A312

TP317L Studded Tube

Fired Heater Stainless Steel Seamless Pipe

Product Description

Stainless Steel Seamless Pipe ASTM A312 TP317L with 11Cr Studded Tube , Fired Heater and Furnace Application

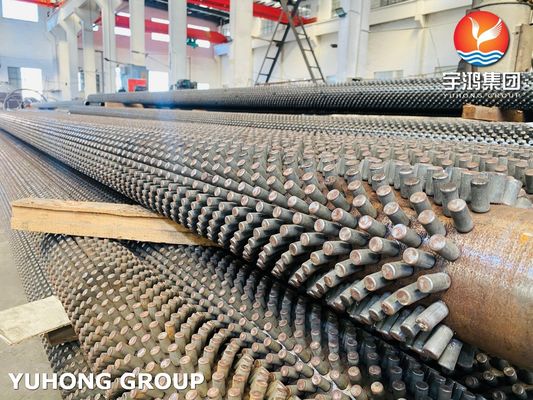

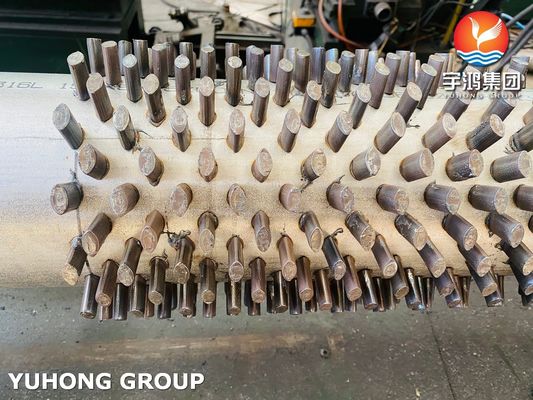

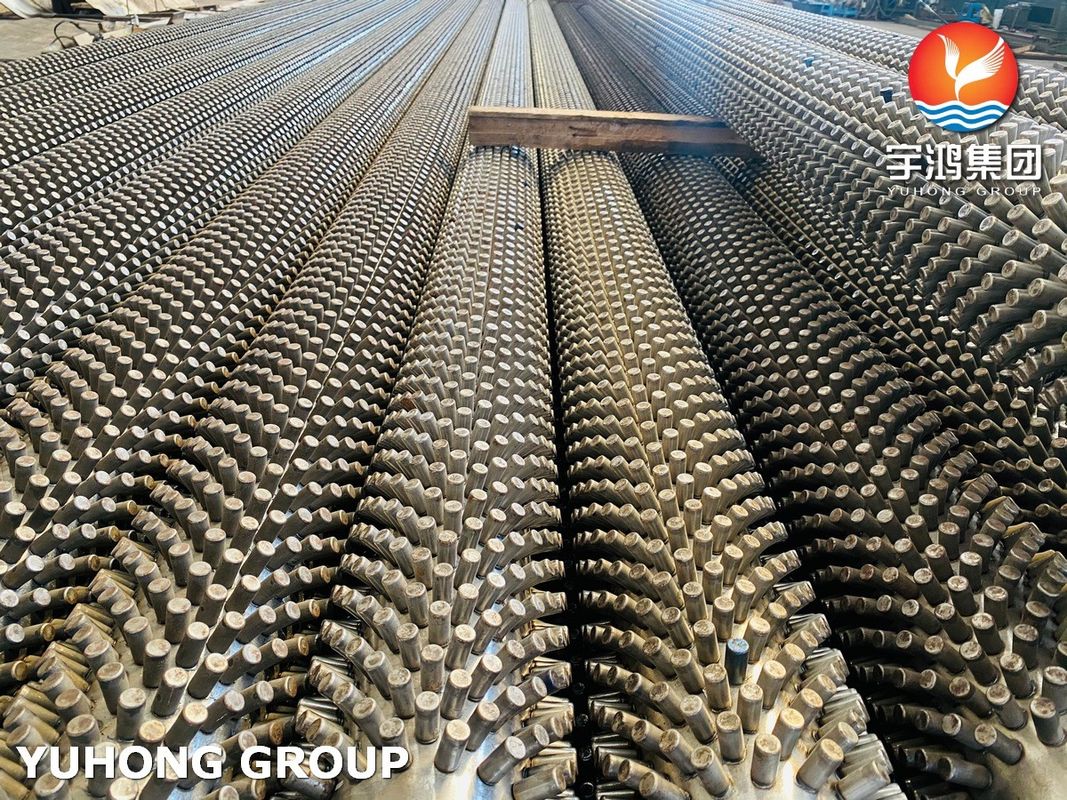

Studded fin tubes are another type of heat exchanger tube that consists of metal studs or pins welded onto the surface of the tube. These studs create additional surface area for heat transfer and help improve heat transfer efficiency in various applications.

Base Tube / Core Tube O.D: 15.88 - 325mm
Fin Height: 6 - 50.8mm	Fin Thickness: 0.8 - 3.0mm	Fin Pitch: As Customer's Request	End: Plain Ends / Beveled Ends
No Fin Area on Both Side: As Customer's Request and Drawing

ASME SA312 TP317L Chemical Composition (%)

Result

≤0.035

≤1.0

≤2.0

≤0.045

≤0.03

18.0~20.0

11.0~15.0

3.0~4.0

ASME SA312 TP317L Tensile Test ASTM A370-20
TensileStrength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥515	≥205	≥35

Yuhong Group's Advantage

We have more than 20,000 square meters workshop, including 4 finning machines for high frequency welding fin tube, daily extrusion capacity up to 700m.
Shanghai Port is our nearest seaport and airport, less than 2 hours' drive away from our workshop, convenient transportation.
Due to high rigidity, studded tubes can be used even under extreme temperature and pressure conditions.

High Frequency Welding Fin Tube Applications

Air Cooler,
Charge Air Chiller,
Condenser,
Evaporator,
Fluid Cooler,
Gas Cooler,
Oil Cooler,
Radiator,
Refrigeration,
Steam to Air Heat Exchanger,
superheater etc.
