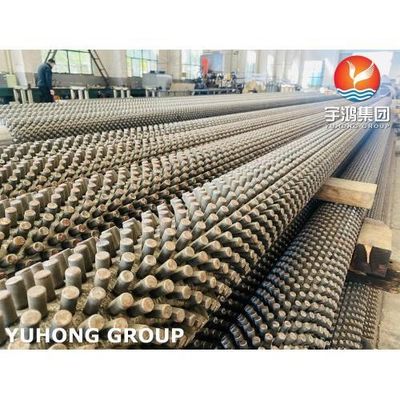

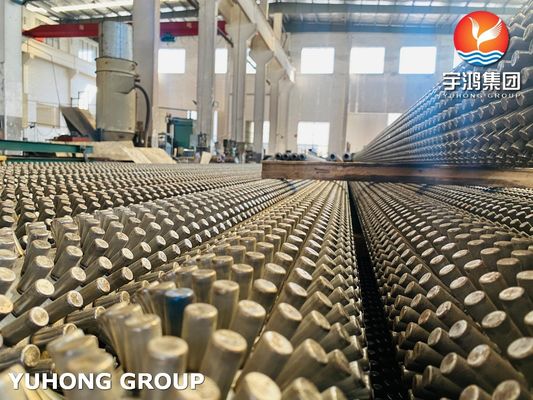

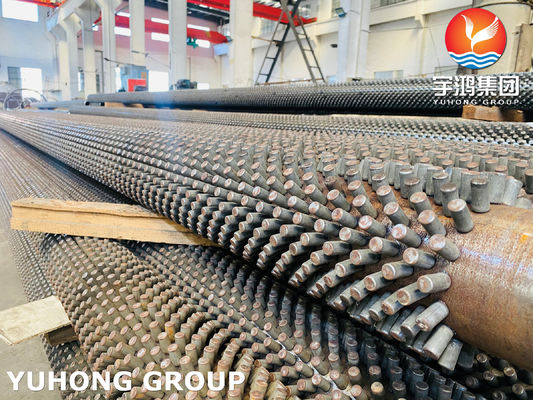

ASTM A335 P9 Studded Tube, With 11Cr Studs Material , Fired Heater , Furnace Application

Brand Name:	Yuhong
Model Number:	Studded Tube , Pin Tube, Oil Furnace Tube , Steam Furnace Tube, Reforming Tube
MOQ:	1PC
Price:	Negotiable
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Pipe:

ASTM A335 P9, ASME SA335 P9, ASTM A213 T9, ASME SA213 T9

Fin Type:

Studded Tube , Pin Tube , Solid Tube

Fin Material:

SS409, SS410 , 1Cr13, 2Cr13, 11Cr, 13Cr

Testing:

Hammar Hitting Test

Application:

Boiler, Fired Heater Coils, Radiator, Convection Tube Cois

Studded Tube OD:

50~ 325mm

Supply Ability:

10000 tons/month

Highlight:

ASTM A335 studded pipe

studded pipe P11 P9

Studded steel fin tube

Product Description

ASTM A335 P9 Studded Tube, with 11Cr Studs Material , Fired Heater , Furnace Application

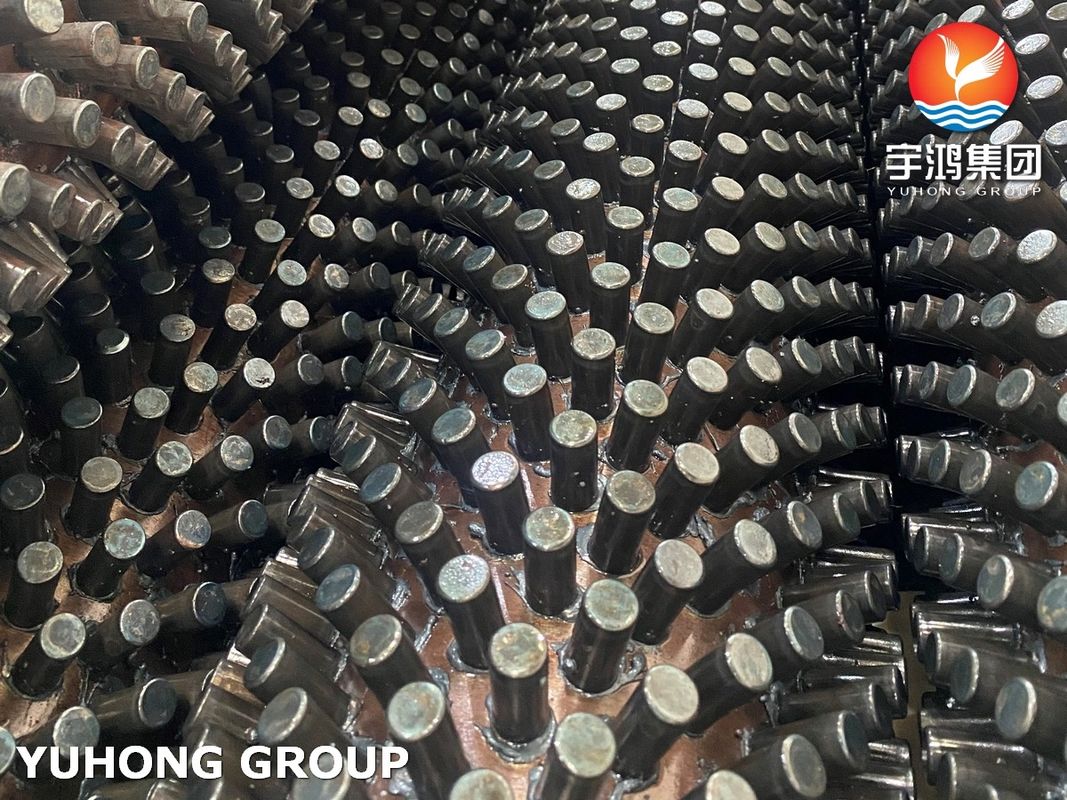

What is a Studded Tube?

Studded Fin Tubes are a type of metal tubes. These tubes have studs welded onto the metal tubes. These studs are arranged in a specific formation throughout the total tube. They are usually used in boilers and refineries. They increase the surface area for higher heat transfer, so they are also used for reheating.

The steel studs are automatically resistance welded to the tubes, producing high quality forged welds. The welding process enables the combination of any grade for studs and tubes: carbon, low alloy, stainless steel and high nickel alloys. Alloy steel tubes are stress-relieved after studding, according to the relevant specifications for the class and grade of steel used.

Studded Fin Tubes are used as an alternative to fin tubes in heat exchangers mainly in the petrochemical industry in which the surface is exposed to particular corrosion and aggression. Studded Fin Tube is a standard frequency electric-resistance-welded studded type surface. Studded fin tubes normally weld round carbon steed studs on carbon, alloy or stainless steel tubes.

Items	General Materials	Popular ASTM /ASME Materials
Bare Tube Material	Carbon Steel Alloy Steel Heat Resistant Steel Stainless Steel	1. Carbon Steel: A106 Gr. B 2. Stainless Steel: TP304/304L,TP316/TP316L, TP347 3. Alloy Steel: P5,T5,P9,T9,T11,T22
Studs Material	Carbon Steel Stainless Steel	1. Carbon Steel 2. Stainless Steel TP409/410,TP304/304L,TP316/TP316L, TP321/TP321L
Fins Type	Round,Oval,Pin

Tube OD	38~219mm
Tube WT	4~15mm
Tube Length	18000mm Max.
Studs OD	6~16mm
Studs Height	10~45mm

Studded Tube application:

1. Heat Exchangers;

2. Boilers;

3. Air Coolers;

4. Petrochemical refineries;

5. Power plants;

6. Chemical industries;

7. Steel plants;

8. Power Plants;
