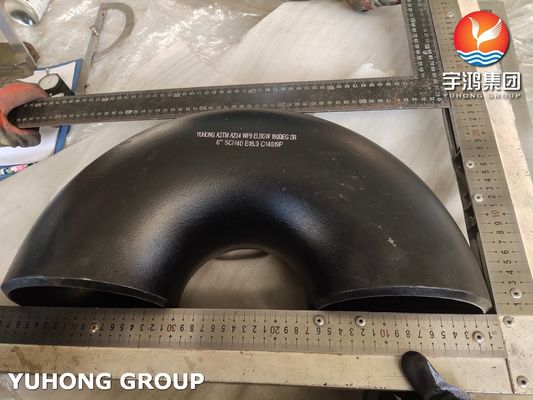

An ASTM A234 WP9 CL1 Seamless 180 Degree Return Bend is a high-performance, U-shaped pipe fitting made from a seamless 9% chromium, 1% molybdenum alloy steel with a standard wall thickness. It is specifically engineered for use in critical piping systems that operate under high pressure and high temperatures.

Here are some detailed breakdowns:

1. Material: ASTM A234 WP9 CLASS 1

(1). Chemical Composition

The chemical composition for A234 WP9 is given in percentage by weight (%).

Key Takeaway: The core of this alloy is the 9% Chromium and 1% Molybdenum, which gives it the common name 9Cr-1Mo steel, renowned for its high-temperature performance.

(2). Mechanical Properties

The mechanical properties are determined from a test specimen in the heat-treated condition (normalized and tempered).

Key Takeaway: The material has a high minimum yield and tensile strength, ensuring it can withstand high internal pressures. The elongation value indicates good ductility, and the hardness limit ensures the material is suitable for fabrication.

3. Heat Treatment

This is a critical part of achieving the specified mechanical properties. ASTM A234 requires that WP9 fittings be supplied in the normalized and tempered condition.

• Normalizing: Heated to a temperature above its critical transformation temperature (typically around 1650-1750°F / 900-955°C) and then air-cooled. This refines the grain structure.
• Tempering: Reheated to a specific lower temperature (typically between 1250-1350°F / 675-730°C) and then cooled. This relieves internal stresses from normalizing and optimizes the combination of strength and toughness.

4. 180 Degree Return Bend

This is crucial for high-pressure and high-temperature applications because it creates a more uniform, reliable, and stronger fitting with no weak points like a weld seam.

Performance Characteristics of ASTM A234 WP9 CL1 Seamless 180 Degree Return Bend:

• High-Temperature Strength
• Excellent Creep Resistance
• Good Ductility
• Controlled Hardness

Primary Application Category: High-Temperature Service

The key feature of the WP9 (9% Chromium, 1% Molybdenum) material is its excellent strength and resistance to oxidation (scaling) at elevated temperatures. This makes it a go-to choice for systems operating in the 540°C to 650°C (1000°F to 1200°F) range.

Specific Industries and Systems

1. Power Generation Plants (Fossil Fuel & Nuclear)

This is the most common application. The return bend is used to create complex tubing layouts that must withstand extreme conditions.

• Boiler Systems: In the superheater and reheater sections where steam is heated to its highest temperatures and pressures. The 180-degree return bend is essential for creating continuous tube loops within the boiler walls and convection passes.
• Steam Piping: For high-pressure main steam and hot reheat steam lines that carry steam from the boiler to the turbine.
• Heat Exchangers: Used in the tube bundles of heat exchangers and economizers where the flow needs to be reversed.

2. Petroleum Refineries & Petrochemical Plants

In these facilities, the fitting is used in processes that involve cracking and reforming hydrocarbons at high temperatures.

• Furnace Piping: Within the tubes of process furnaces and heaters where hydrocarbons are heated to very high temperatures.
• Catalytic Cracking Units: In transfer lines that carry hot, corrosive catalysts and gases.
• Hydrogen Service: Suitable for certain high-temperature hydrogen-containing environments due to its alloy content.

3. Other Industrial Processes

Any industrial process requiring reliable high-temperature piping.

• Chemical Processing Plants: For handling high-temperature process streams.
• Pulp and Paper Mills: In recovery boilers where black liquor is burned at high temperatures.
