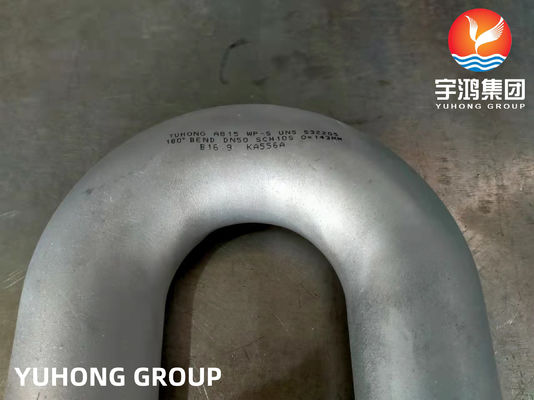

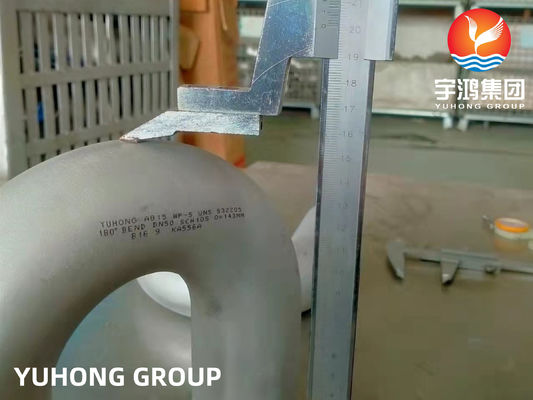

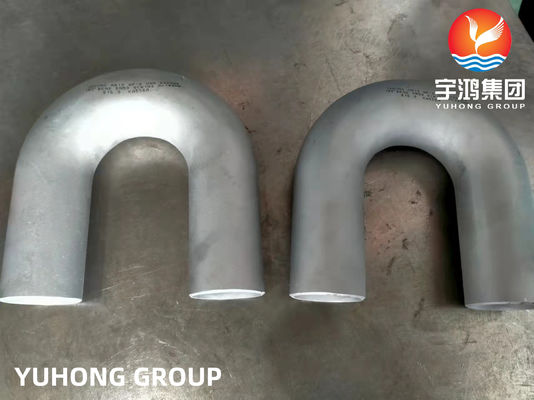

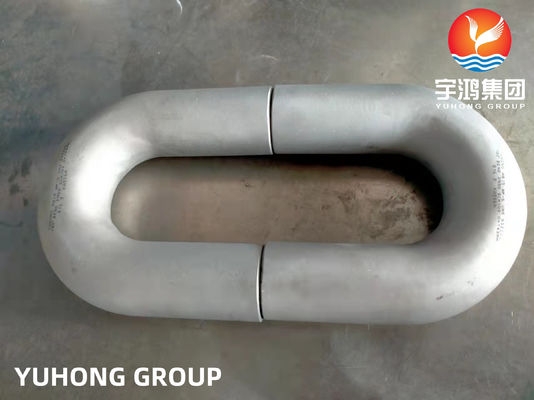

ASTM A815 UNS S32205 Duplex Steel U Bend Return , Heat Exchanger , Boiler

Brand Name:	Yuhong
Model Number:	180 DEG. ELBOW
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material:

UNS S32205

Standard:

ASTM A815

Radius:

LR ( Long Radius ) , SR ( Short Radius )

Testing:

UT , PT , PMI

Size:

1/2 Inch - 98 Inch

Application:

Heat Exchanger , Boiler , Furnace , Fired Heater , Convection Section

Supply Ability:

10000 Tons/Month

Highlight:

ASTM A815 Return Bend

UNS S32205 Return Bend

U Bend Return 98 inch

Product Description

ASTM A815 UNS S32205 Duplex Steel U Bend Return , Heat Exchanger , Boiler

ASTM A815 UNS S32205 Duplex Stainless Steel Pipe U Bends can be welded or seamless and they are made up of a corrosion-resistant, strong and high-temperature capable duplex steel material. These Duplex Stainless Steel U Bends are known for their increased tensile strength and better resistance to pitting and crevice corrosion compared to other duplex steel grades. The higher molybdenum content makes them more durable than standard stainless steel alloys, making them be used in harsh environments without influencing quality. Our YUHONG GROUP is a manufacturer, supplier of Duplex S31803 / S32205 Stainless Steel Pipe U Bends which repel localized corrosion, especially crevice corrosion and pitting, and are more durable than stainless steel.

EQUIVALENT GRADES:

STANDARD	UNS	WERKSTOFF NR.
Duplex 2205	S31803 / S32205	1.4462

Dimensions	ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560,
Thickness	SCH10 - SCH XXS available with NACE MR 01-75
Sizes	DN15-DN1200
Connection	Welding
Bending Radius	R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom
Manufacturing process	Press, Forge, Push, Cast, etc.
Types	Tees, Crosses, Reducers, Elbows, Stub Ends, Pipe Bends, End Caps, Etc.

Chemical Propeties:

C	Mn	Si	N	P	Cr	Fe	Ni	S	Mo
0.03 max	2 max	1 max	0.8 to 0.2	0.03 max	21 to 23	63.54 min	4.5 to 6.5	0.02 max	2.5 to 3.5

Mechanical Properties:

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
7800 kg/m3	1350 °C (2460 °F)	80000 Psi, 550 MPa	116000 Psi, 800 MPa	15 %

Applications:

Plumbing
Oil and Gas Pipeline
Chemical Industry
Water Supply Systems
Fabrication Industry
Food Processing Industry
Structural Pipe
Petroleum Industry
Power sector
Hardware tools
Metallurgy Industry
Construction Industry
Shipbuilding Industry

ASTM A815 UNS S32205 Duplex Steel U Bend Return , Heat Exchanger , Boiler 0
