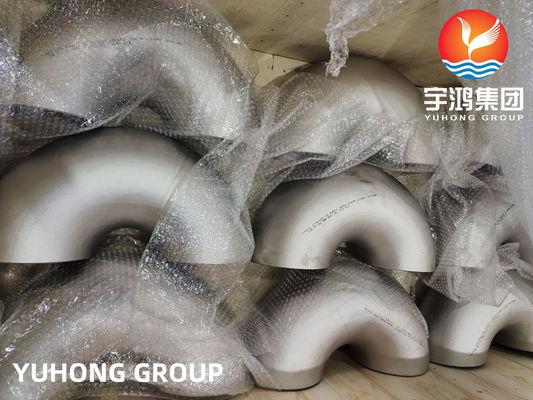

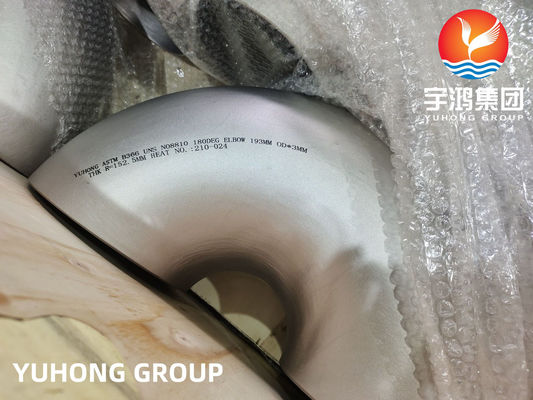

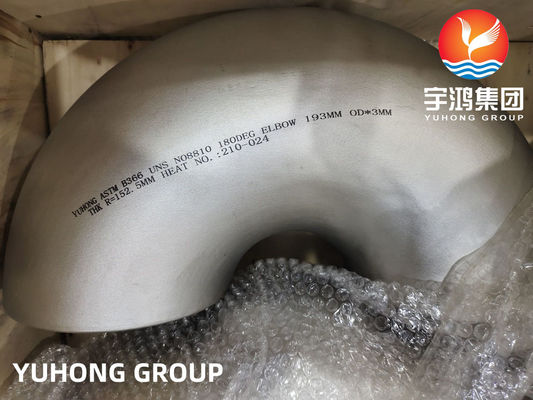

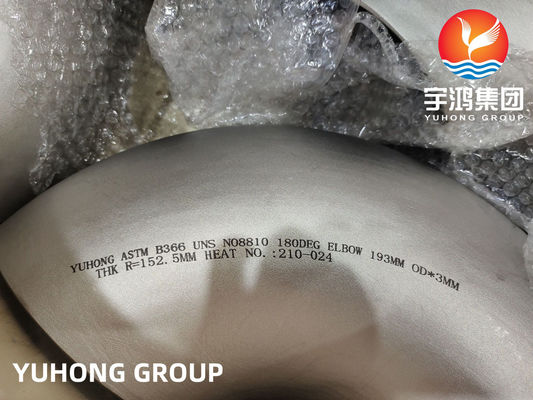

U Bend Return , ASTM B366 Incoloy 800H 180 Deg. Elbow, Heat Exchanger

Brand Name:	Yuhong
Model Number:	180 DEG. ELBOW
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material:

INCOLOY 800H, NO8810

Standard:

ASTM B366

Radius:

LR ( Long Radius ) , SR ( Short Radius )

Testing:

UT , PT , PMI

Size:

1/2 Inch - 98 Inch

Application:

Heat Exchanger , Boiler , Furnace , Fired Heater , Convection Section

Supply Ability:

10000 Tons/Month

Highlight:

Return Bend ASTM B366

Return Bend Incoloy 800H

Heat Exchanger ASTM B366

Product Description

U Bend Return , ASTM B366 Incoloy 800H 180 Deg. Elbow, Heat Exchanger

ASTM B366 is a specification for nickel-iron-chromium alloy fittings, including elbow butt weld fittings, made from Incoloy 800H material. Incoloy 800H is a high-temperature alloy that offers excellent resistance to oxidation, carburization, and other forms of high-temperature corrosion. These fittings are commonly used in applications such as chemical processing, heat treating, and power generation.

Common types of ASTM B366 Incoloy 800H elbow:

90-degree long radius elbow: This fitting has a longer radius, providing a smoother flow and reducing pressure drop in the piping system.
90-degree short radius elbow: This fitting has a shorter radius, making it more compact and suitable for tight spaces.
45-degree long radius elbow: This fitting allows for a gradual change in direction and is often used when a 90-degree turn is not possible.
45-degree short radius elbow: This fitting has a smaller radius, making it suitable for tight spaces and reducing pressure drop.

Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min
800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min

Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)
800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205
825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220

Applications:

1. Chemical Processing
2. Petrochemical Industry
3. Power Generation
4. Oil and Gas Industry
5. Pharmaceutical Industry
6. Food Processing Industry

U Bend Return , ASTM B366 Incoloy 800H 180 Deg. Elbow, Heat Exchanger 0
