ASTM A106 Gr.B Studded Tubes for Process Fired Heaters

Product Overview

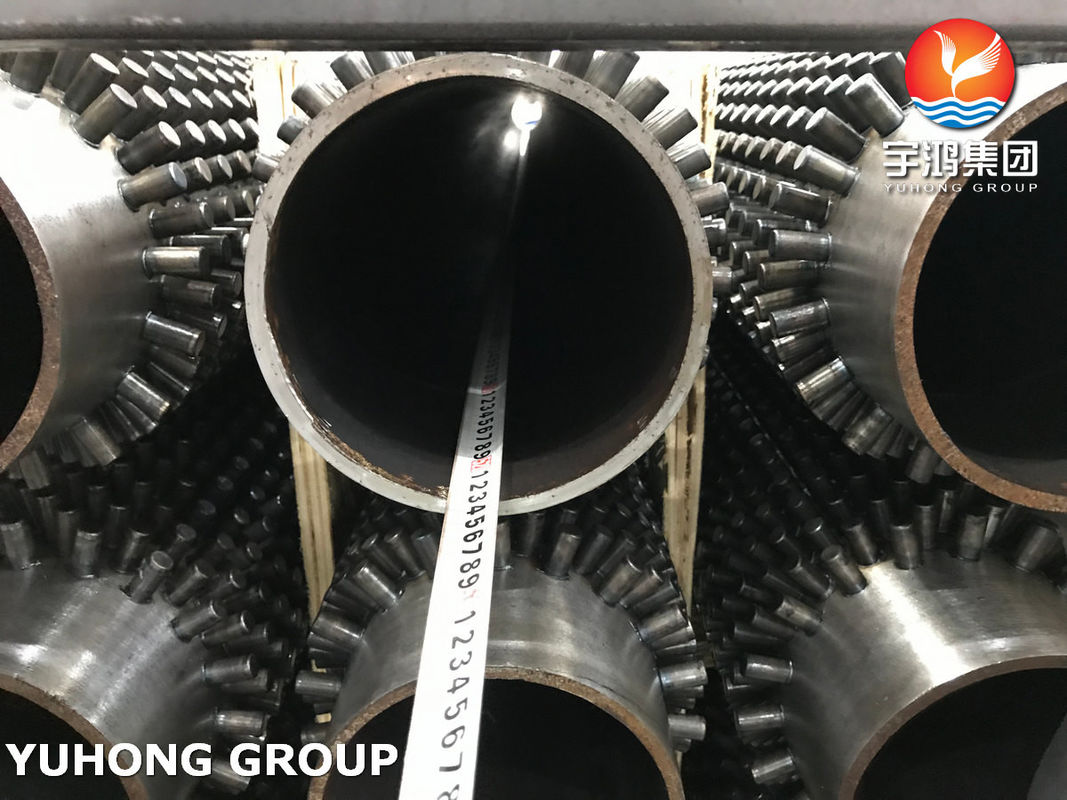

ASTM A106 Gr.B studded tubes are designed for heat-transfer duties in the convection sections of process fired heaters used in refineries, petrochemical plants, and other high-temperature process facilities. Manufactured with ASTM A106 Gr.B seamless carbon steel base tubes and welded metal studs, they provide an enlarged external heat-transfer surface for recovering energy from hot flue gas.

In fired-heater convection sections, studded tubes help improve gas-side heat transfer where conventional bare tubes may provide insufficient surface area within the available installation space. The stud arrangement can be tailored to the furnace design, flue-gas conditions, tube layout, and required heat duty. Stud material, diameter, height, pitch, welding method, and inspection requirements are specified according to the approved drawings and project requirements.

The base tube complies with ASTM A106 Gr.B when specified and verified by material test documentation. Each finished studded tube can be manufactured to the required dimensions, stud configuration, end preparation, and inspection scope, supporting reliable integration into process heater coils and replacement projects.

Key Product Features

• High-temperature carbon steel base tube: ASTM A106 Gr.B seamless pipe for suitable high-temperature service conditions.

• Enhanced gas-side heat transfer: Welded studs increase the external surface available for heat exchange.

• Application-specific configuration: Stud height, diameter, pitch, arrangement, and stud material can be selected to suit the heater design.

• Designed for demanding furnace environments: Appropriate for convection sections where thermal cycling, flue-gas exposure, and mechanical integrity must be considered during engineering.

• Project-based quality control: Base tube traceability, dimensional checks, stud-weld inspection, and specified testing can be included in the inspection plan.

Application & Compliance

Where Are ASTM A106 Gr.B Studded Tubes Used?

The final application suitability depends on design temperature and pressure, tube-side fluid, flue-gas composition, corrosion conditions, thermal stresses, and the heater designer's calculations. ASTM A106 Gr.B should not be selected solely on the basis of its material designation.

ASTM A106 Gr.B Chemical Composition

The table below gives the commonly specified chemical composition limits for ASTM A106 Gr.B. Acceptance is based on the applicable edition of ASTM A106/A106M and the material test certificate.

For Grade B, the applicable specification also limits the combined content of chromium, copper, molybdenum, nickel, and vanadium. The governing ASTM edition and the mill test certificate should be checked for the exact requirements. These figures apply to the base tube, not automatically to the stud material. <Cite refs={["turn559423search24","turn559423search5"]} />

ASTM A106 Gr.B Mechanical Properties
