ASME SA312 Stainless Steel 304 Studded Tube , For Shell-and-tube Heat Exchanger

Brand Name:	Yuhong
Model Number:	Studded Tube
MOQ:	1PC
Price:	Negotiable
Packaging Details:	Steel Frame Case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product Name:

Stainless Steel Studded Tube

Base Tube:

ASTM A312 / ASME SA312 TP304

Stud Material:

Stainless Steel / Other Material

Stud Hight:

5 Mm - 35 Mm

Stud Diameter:

φ5 - 20 Mm

Studded Tube Length:

Max. 34m/pc

Supply Ability:

10000 tons/month

Highlight:

304 Stainless Steel Studded Tubes

ASME SA312 Studded Tubes

Product Description

ASME SA312 Stainless Steel 304 Studded Tube , For Shell-and-tube Heat Exchanger

ASME SA312 304 Stainless Steel Studded Tubes are specialized heat exchanger tubes designed for enhanced thermal performance in high-temperature and high-pressure environments. These tubes are manufactured according to the ASME SA312 standard and are made from 304 stainless steel, a widely used material known for its excellent corrosion resistance, durability, and strength.

Key Features:

Material Composition:
304 stainless steel is an austenitic alloy composed primarily of chromium (18-20%) and nickel (8-10.5%) with a low carbon content. This composition provides excellent corrosion resistance, particularly against oxidation and chemical exposure.
Studded Design:

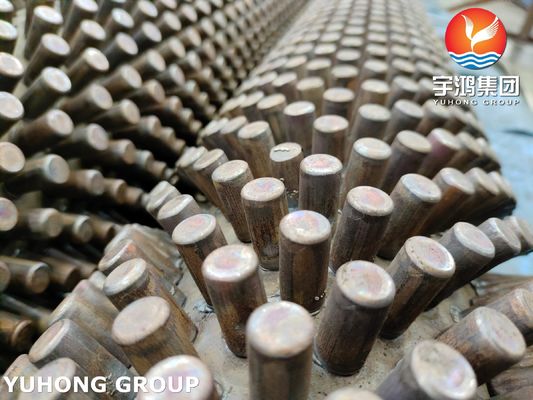

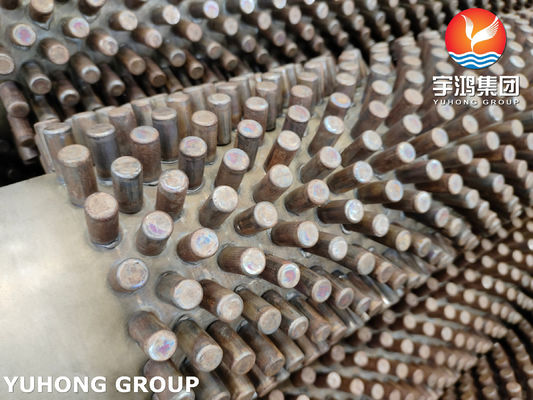

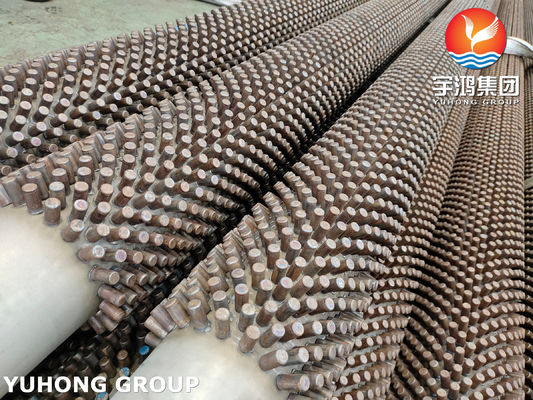

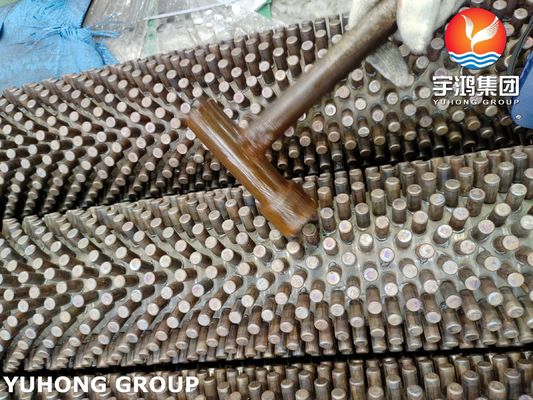

The studded tubes are equipped with welded studs or protrusions on their surface, which significantly enhance the heat transfer efficiency. The studs increase the surface area, allowing for better heat dissipation in applications like boilers, heat exchangers, and furnaces.
Manufacturing Standards:
These tubes conform to the ASME SA312 specification, ensuring high-quality manufacturing processes, precise dimensional tolerances, and reliable material performance.
High-Temperature Resistance:
304 stainless steel studded tubes are suitable for applications involving temperatures up to 870°C (1600°F), making them ideal for heat-intensive processes.
Corrosion Resistance:
The chromium content in 304 stainless steel offers excellent resistance to rust, pitting, and other forms of corrosion, even in harsh industrial environments.

Type	Description	Base tube	Fin specification (mm)
Type	Type	O.D. (mm)	Fin pitch	Fin height	Fin thick
Welding	HFW Fin Tube	16-219	3-25	5-30	0.8-3
	H/HH Type Fin Tube	25-63	3-258-30	<200	1.5-3.5
	HFW Studded Fin Tube	25-219	8-30	5-35	φ5-20

Applications:

Petrochemical and Chemical Processing: For heat exchangers and reactors requiring high thermal efficiency and corrosion resistance.
Power Generation: Used in boilers and economizers in power plants to improve heat transfer.
Oil and Gas: For gas coolers, condensers, and other high-pressure thermal systems.
Refineries: In high-temperature furnaces and heat recovery systems.
Pulp and Paper Industry: For black liquor recovery boilers and heat transfer equipment.

ASME SA312 Stainless Steel 304 Studded Tube , For Shell-and-tube Heat Exchanger 0
