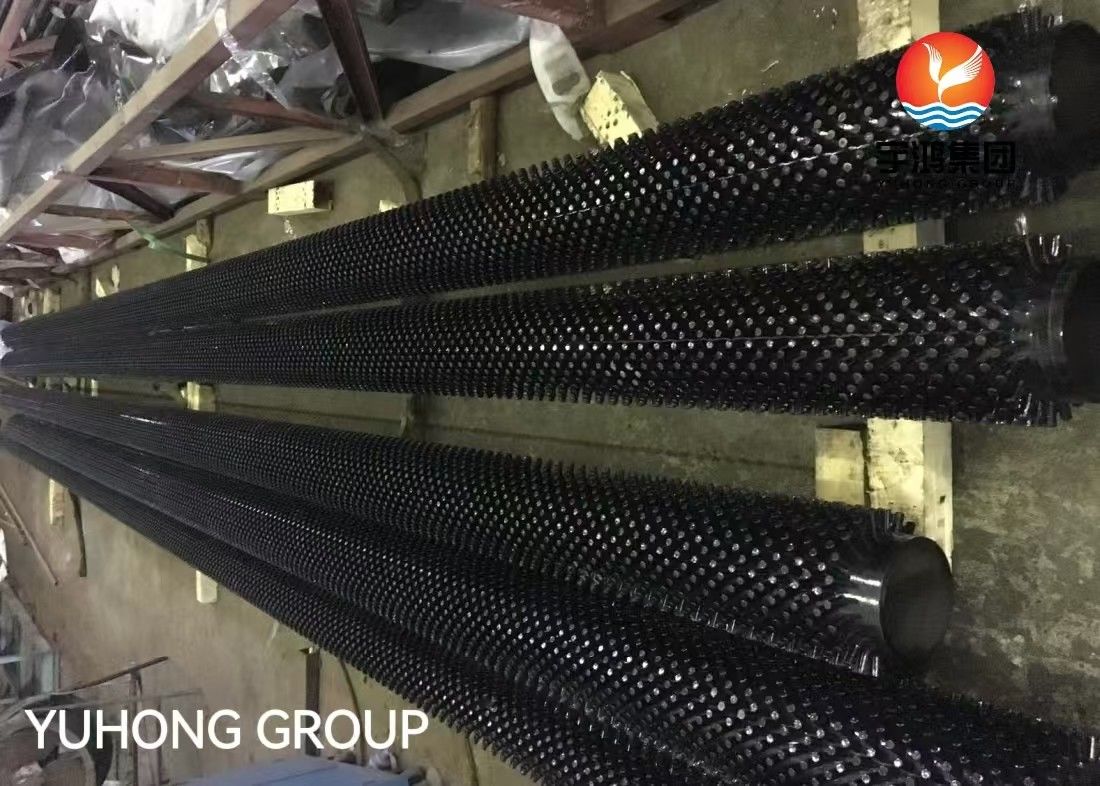

ASTM A335 P9 Alloy Steel Studded Fin Tube In Waste Heat Recovery Boiler And Super Heater

A335 P9 Studded Fin Tube Application

1. Boiler and heat exchanger
   Used in waste heat recovery boiler, waste heat boiler, gas boiler, waste heat recovery device, gas turbine exhaust system.
2. Petrochemical industry
   Used in catalytic cracking unit (FCCU), reforming unit, hydrotreating unit, etc. Improve heat transfer efficiency and optimize reaction conditions. Resistant to high temperature and corrosive media. Typical equipment: reactor, regenerator, heat exchanger.
3. Power industry
   Used in coal-fired power plants, waste incineration power plants, etc. Improve the boiler thermal efficiency. Resistant to wear from fly ash and particulate matter. Typical equipment: boiler water wall, superheater, economizer.
4. Metallurgical industry
   Used in blast furnace, hot blast furnace, heating furnace, etc. Improve the heat exchange efficiency of hot blast furnace and resist the corrosion and wear of high temperature flue gas. Typical equipment: hot blast stove, waste heat recovery device.

A335 P9 Studded Fin Tube Strength

• Efficient heat transfer: The nail head increases the surface area and turbulence effect, significantly improving the heat transfer efficiency.
• Wear-resistant and durable: Nail head to protect the base tube, extend the service life.
• Strong adaptability: Different materials and designs can be selected according to working conditions.
• Reduce scaling: The turbulent effect of the nail head reduces scaling and deposition.

A335 P9 Studded Fin Tube FAQ

1.What are the temperature limits for A335 P9 studded fin tubes?

• A335 P9 material can typically withstand temperatures up to 1,000°F (538°C). However, the exact temperature limit depends on the specific application and operating conditions.

2. How are studded fin tubes manufactured?

• Studded fin tubes are made by welding studs onto the base tube (A335 P9 in this case). The studs are usually made of the same or compatible material to ensure uniform thermal expansion and corrosion resistance.

3. What are the key specifications for A335 P9 studded fin tubes?

• Material: ASTM A335 P9 (base tube), studs (compatible material).
• Stud arrangement: Customizable based on heat transfer requirements.
• Dimensions: Tube diameter, wall thickness, stud height, and spacing can be customized.
• Standards: ASTM A335 for the base tube, with additional standards for welding and testing.

4. How do I select the right studded fin tube for my application?

• Consider the following factors:
• Operating temperature and pressure
• Corrosive environment
• Required heat transfer efficiency
• Tube dimensions and stud arrangement
• Compatibility with other system components

5. What maintenance is required for A335 P9 studded fin tubes?

• Regular inspection for corrosion, stud wear, and tube integrity.
• Cleaning to remove soot, ash, or other deposits that may reduce heat transfer efficiency.
• Monitoring for leaks or damage in high-stress areas.

​
