ASME SA423 GR1 Carbon Steel Boiler Tube For Boilers Steam Generators

Brand Name:	Yuhong
Model Number:	Boiler Tube
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case + Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material Grade:

Standard:

ASTM A423 , ASME SA423

External Diameter:

>38.1

Ends:

PE , BE

Tube Material:

Nickel Alloy , Alloy , Stainless Steel , Duplex Stainless Steel , Carbon

Application:

Boiler

Supply Ability:

10000 Tons/Month

Highlight:

Steam Generators Carbon Steel Boiler Tube

Boilers Carbon Steel Boiler Tube

ASME SA423 GR1 Carbon Boiler Tube

Product Description

ASME SA423 GR1 Carbon Steel Boiler Tube For Boilers , Steam Generators

ASME SA423 Gr. 1 is a carbon steel alloy, specifically formulated for high-pressure and temperature applications such as in steam boilers, heat exchangers, and other critical systems.

The material primarily consists of carbon, with trace elements like manganese, silicon, phosphorus, sulfur, and others, depending on the specific alloy grade.

This material conforms to the ASME SA423 specification, which defines the requirements for carbon steel tubes used in the construction of heat exchangers, superheaters, and other heat transfer equipment in power plants and industrial applications.

SA423 Gr. 1 carbon steel tubes typically exhibit good tensile strength, yield strength, and toughness at elevated temperatures.

The material is designed to withstand high-pressure conditions, with good resistance to internal and external stresses.

Chemical Composition:

Carbon: 0.18% - 0.23%
Manganese: 0.30% - 0.60%
Phosphorus: ≤ 0.035%
Sulfur: ≤ 0.035%
Silicon: 0.10–0.35%
Copper:≤ 0.25%
Chromium:≤ 0.20%
Nickel:≤ 0.20%

Mechanical Properties:

Tensile Strength: 415 - 550 MPa (60 - 80 ksi)
Yield Strength: 205 MPa (30 ksi) min.
Elongation: 30% min. (in 8 inches)
Hardness: 150 HB (Brinell Hardness) max.
Impact Toughness: Not typically specified, but the material is designed to withstand impacts at elevated temperatures.

Applications:

1. Boiler Systems

2. Heat Exchangers

3. Pressure Vessels

4. Power Plants

5. Chemical and Petrochemical Industries

6. Waste Heat Recovery Systems

7. Marine and Shipbuilding

8. Industrial Heating Equipment

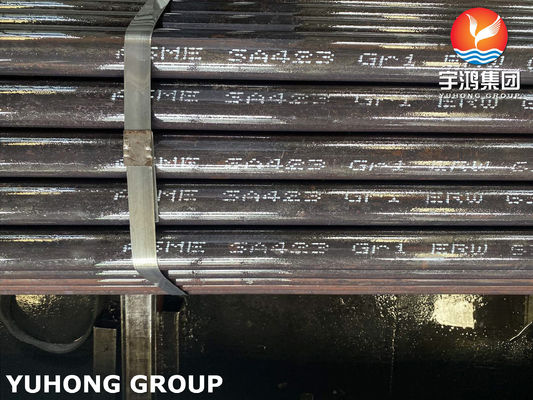

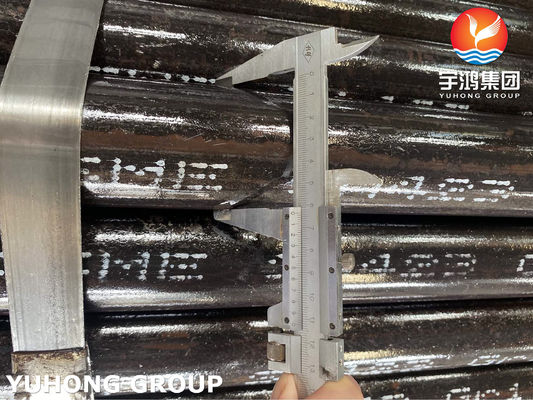

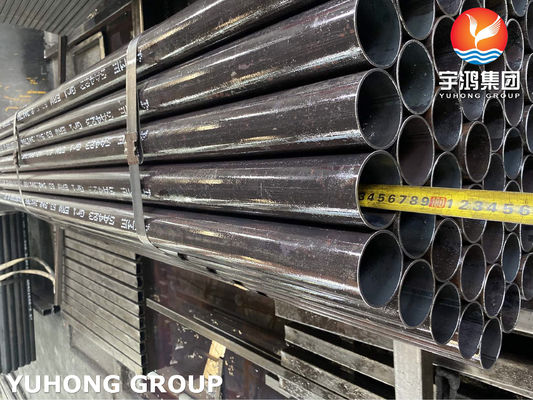

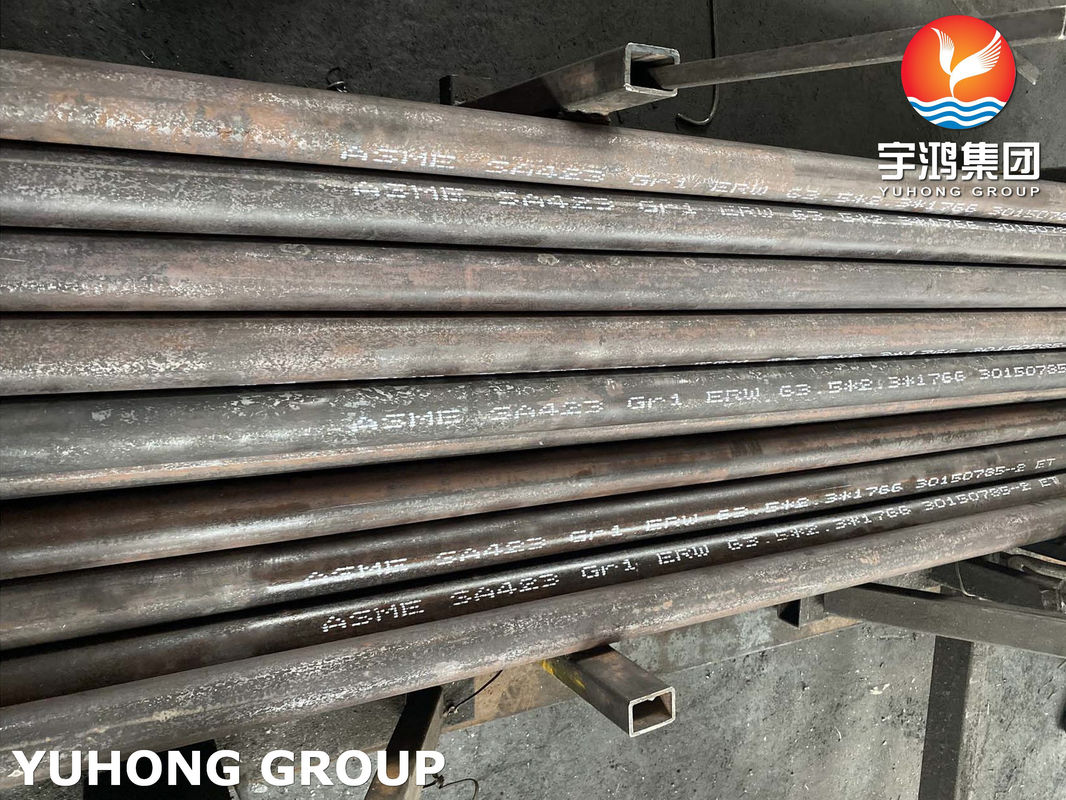

ASME SA423 GR1 Carbon Steel Boiler Tube For Boilers Steam Generators 0
