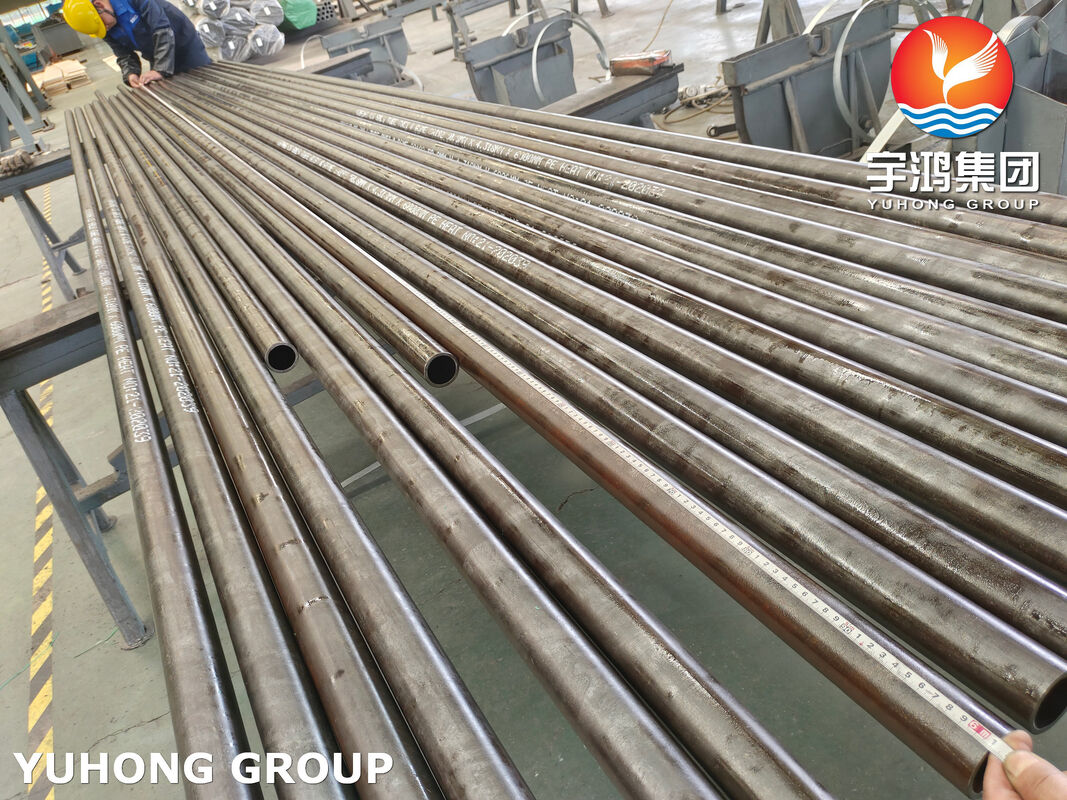

ASTM A192 / ASME SA192 Carbon Steel Seamless Tube Boiler Tube Superheater Tube

Brand Name:	YUHONG
Model Number:	ASME SA192 Carbon Steel Boiler Tube
MOQ:	1000kgs
Packaging Details:	Ply-wooden Case /Iron Case
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Product Name:

Carbon Steel Boiler Tube

Standard Grade:

ASTM A192, ASME SA192

1/2" To 5"

Thickness:

BWG10-25

Length:

Single Random, Double Random & Cut Length

Shape:

Straight, U Bend, Shaped

Plain End, Beveled End

Highlight:

ASTM A192 Carbon Steel Seamless Tube, ASME SA192 Boiler Tube Bending

Product Description

ASTM A192 / ASME SA192 Carbon Steel Boiler Tube Seamless Steel Boiler Tubing

ASTM A192/ASME SA192 is a single-grade seamless carbon steel boiler tube spec—no Grade B. ASME SA192 is required for ASME code; ASTM-only marking is insufficient. It covers tube OD, not pipe OD, with standard size limits. Chemistry closely matches A179, requires killed steel, has a narrow Mn range, but no impact, hardness, or grain-size requirement. ASME limits service to about 1000°F due to graphitization. Hydrostatic or NDE is manufacturer’s option; flattening is mandatory. Hot-finished tubes need no heat treatment; cold-drawn tubes require stress relief at 1200°F minimum.

Procurement Checklist

When ordering ASTM A192 bent boiler tubes, provide the following:

Quantity (pieces or meters)
OD and Wall Thickness (e.g., 50.8 mm x 5.0 mm)
Length (straight length or bent drawing)
Bending Details (radius, angle, plane, tolerances)
End Preparation (plain, beveled, threaded)
Certification Requirements (3.1, 3.2, or client-specific)
Packing

Comparison with Similar Grades

Grade	Standard	Key Difference
ASTM A192	Boiler Tubes	Low carbon, moderate strength, seamless
ASTM A106 Gr. B	Pipe for High Temp	Similar chemistry but for piping (larger sizes)
ASTM A179	Heat Exchanger Tubes	Cold drawn, lower carbon, tighter tolerances
ASTM A210 Gr. A1	Boiler Tubes	Higher carbon, higher strength
EN 10216-2 P235GH	European Standard	Comparable pressure vessel grade

Tip: A192 is often specified when the application requires a balance of strength, weldability, and code compliance for boiler service.

Chemical Composition % of ASTM A192 / ASME SA192 Carbon Steel Seamless Tube Boiler Tube Superheater Tube

Standard	Chemical Compostion %
Standard	C	Si	Mn	P	S
ASTM A192 / ASME SA1920	0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035

Mechanical Properties of ASTM A192 / ASME SA192 Carbon Steel Seamless Tube Boiler Tube Superheater Tube

Hardness (HRB)	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)
≤77	≥180	≥325	≥35

Testing & inspection

Hydrostatic test OR nondestructive electric test is at the manufacturer’s option. If you require hydrostatic specifically, you must say so. Otherwise you may receive NDE only.

Flattening test is mandatory for A192. Flaring test is not required for A192, but it is required for A179. Dual-certified A179/A192 tubes will therefore have both.

No weld repairs. Because A192 is seamless, welding repair of defects is generally not permitted. Defective sections are cut off or rejected.

NDE method is not fixed. If NDE is used, the manufacturer may choose eddy current or ultrasonic. If you need a specific method, specify it.

Applications

Power plant boilers
Industrial boilers
Superheaters and reheaters
Water walls
Economizers
Heat exchangers
High-pressure steam and water service

ASTM A192 / ASME SA192 Carbon Steel Seamless Tube Boiler Tube Superheater Tube
