ASTM A335 P9 Studded Fin Tube For Fired Heater Steam Boiler

Brand Name:	Yuhong
Model Number:	Studded Fin Tube
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply - Wooden Case + Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Pipe:

Alloy Steel Seamless Pipe: ASTM A335 P11, P12, P1, P22, P23, P5, P9, P91, P92

Welding Type:

High Frequency Welding

Fin Type:

Studded Tube, Pin Tube, Oil Furnace Tube , Steam Furnace Tube, Reforming Tube

Fin Height:

5~30mm

Fin Material:

Carbon Steel

Fin Pitch:

8~30mm

Supply Ability:

10000 Tons/Month

Highlight:

Steam Boiler Studded Fin Tube

ASTM A335 Studded Fin Tube

Fired Heater Studded Fin Tube

Product Description

ASTM A335 P9 Studded Fin Tube For Fired Heater,Steam Boiler

ASTM A335 GR.P9 Studded Fin Tube are made from high-alloy steel and are designed for high-temperature and high-pressure applications.ASTM A335 G.P9 Studded Fin Tube maintain excellent strength and hardness at elevated temperatures, making them suitable for use in boilers and heat exchangers.

This material exhibits high resistance to corrosion, making it ideal for use in chemical processing and petrochemical environments.This material have good weldability, allowing for easy connections with other materials, suitable for complex structural applications and can withstand significant mechanical loads under high pressure, ensuring system stability and safety.

Chemical positions:

ASTM A335 P9
C	Mn	P	S	Si	Cr	Mo
≤0.15%	0.30~0.60%	≤0.025%	≤0.025%	0.50~1.00%	8.0~10.0%	0.90~1.10%‌

Mechanical properties of ASTM A335:

Property	Tensile Strength	Yield Strength	Elongation	Hardness	Modulus of Elasticity	Poisson's Ratio
Value	415 - 550 MPa (60 - 80 ksi)	240 MPa (35 ksi) minimum	20% minimum	85 HRB maximum, 200 HB maximum	~200 GPa (29 x 10^6 psi)	~0.3

Specifications For Various Types Of Finned Tubes:

Yuhong Group Fin Tube Specification
Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1-5	<17	~0.4
Extruded	Single metal combined metal	8-51	1.6-10	<17	0.2-0.4
	Low fin tube t-type fin tube	10-38	0.6-2	<1.6	~0.3
	Bamboo tube corrugated tube	16-51	8~30	<2.5	/
Wound	L/KL/LL type fin tube	16-63	2.1-5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
	H/HH type fin tube	25-63	8~30	<200	1.5-3.5
	Studded fin tube	25-219	8~30	5~30	φ5-20

Advantages:

Excellent Sealing Performance
Corrosion Resistance
High Strength and Durability
Easy Installation
Enhanced Heat Transfer
Versatility
Low Maintenance

Applicatons:

Heat Exchangers
Cooling Systems
Piping Systems
Marine and Offshore Equipment
Power Generation Equipment
Food and Beverage Processing Equipment
Refrigeration Equipment

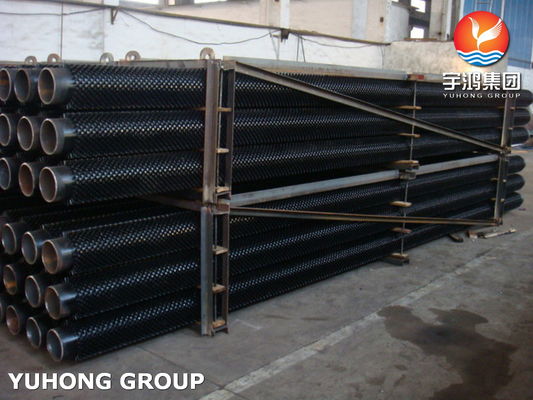

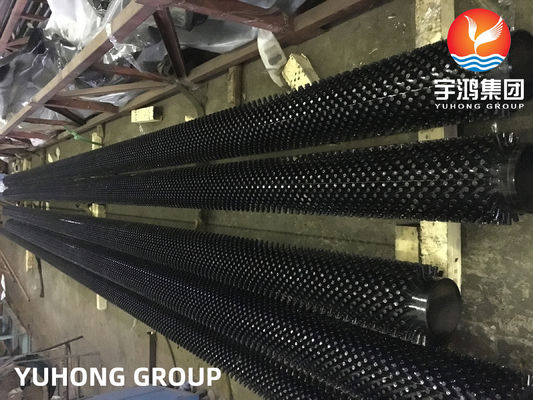

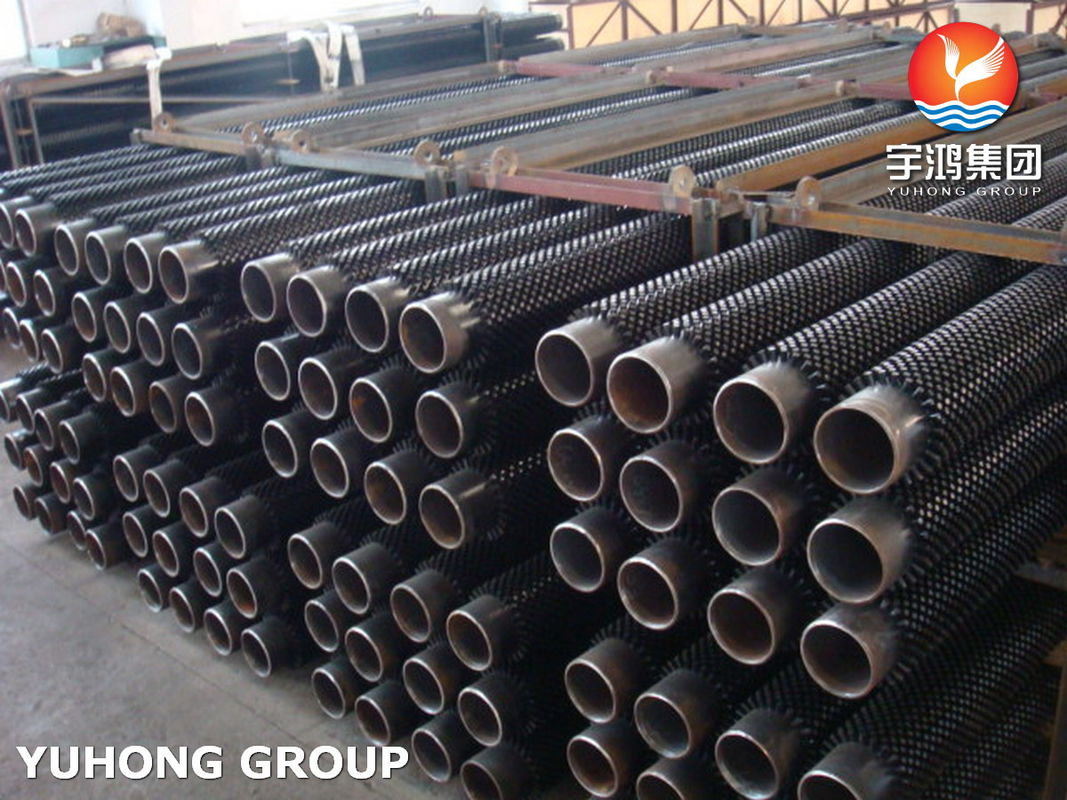

ASTM A335 P9 Studded Fin Tube For Fired Heater Steam Boiler 0
