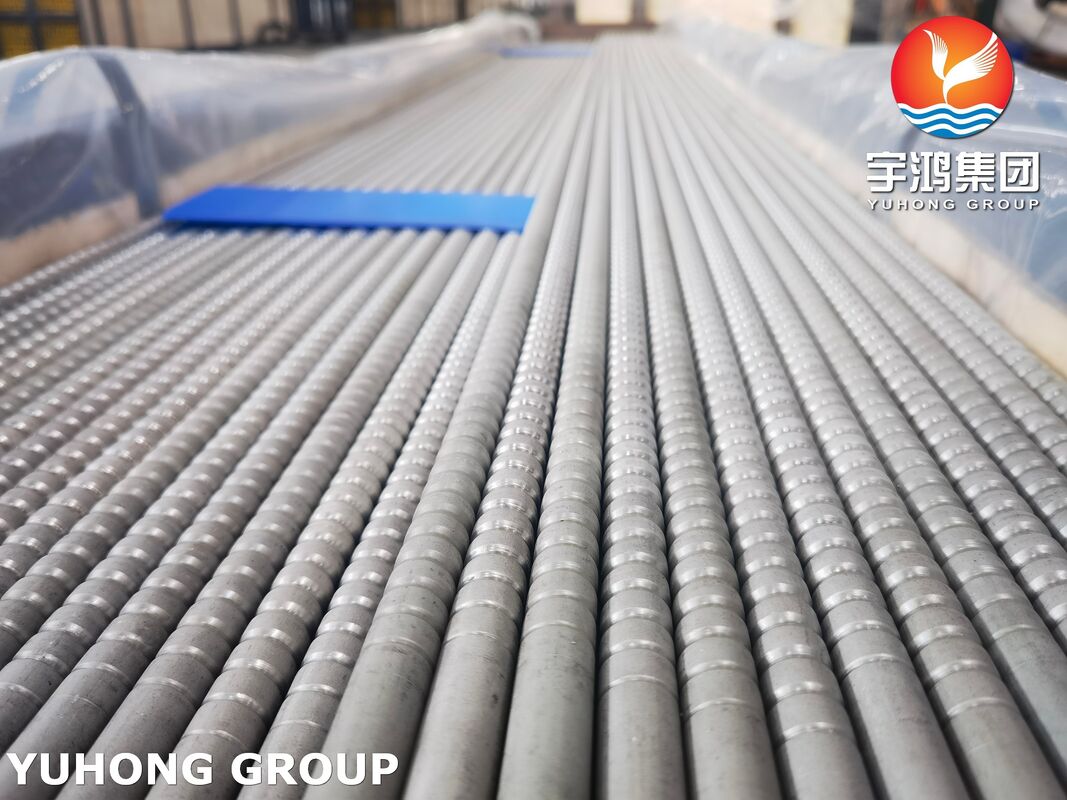

ASTM A269 TP316L Corrugated Fin Tubes for Heat Exchangers

ASTM A269 TP316L corrugated fin tubes are designed for heat exchangers that require enhanced heat-transfer performance, corrosion resistance, and a compact thermal design. Manufactured using TP316L austenitic stainless steel tubing, these tubes feature a corrugated or specially formed heat-transfer surface that promotes fluid mixing and can improve heat transfer compared with a smooth tube under suitable operating conditions.

TP316L contains chromium, nickel, and molybdenum, providing good general corrosion resistance and improved resistance to pitting and crevice corrosion compared with common 304-series stainless steels in many environments. Its low carbon content also helps reduce the risk of sensitization during welding when appropriate fabrication procedures are followed.

Corrugated fin tubes can be customized according to the required tube diameter, wall thickness, corrugation geometry, tube length, heat duty, allowable pressure drop, and installation arrangement. They are suitable for selected industrial heat exchangers, condensers, process cooling systems, and other thermal equipment where the balance between heat-transfer efficiency, pressure loss, corrosion resistance, and mechanical integrity is critical.

The ASTM A269 TP316L designation applies to the tubing material. Final corrugated geometry, fabrication details, inspection requirements, and thermal performance should be defined by the approved drawing and project specification.

• Enhanced heat-transfer potential: Corrugated geometry can promote secondary flow and fluid mixing, increasing the heat-transfer coefficient in suitable flow conditions.

• Corrosion-resistant stainless steel: TP316L offers good general corrosion resistance, with molybdenum improving resistance to localized corrosion in many environments.

• Compact heat-exchanger design: Enhanced heat transfer may help meet a specified heat duty within the available equipment envelope, subject to thermal calculations.

• Customizable geometry: Corrugation pitch, depth, profile, tube diameter, wall thickness, and length can be tailored to the design.

• Low-carbon material: TP316L is suitable for many fabricated and welded assemblies when the correct welding procedure and post-fabrication requirements are followed.

• Project-based quality assurance: Material traceability, dimensional inspection, pressure testing, and additional examinations can be specified for the order.

The table below summarizes commonly specified chemical composition limits for ASTM A269 TP316L. Final acceptance should be based on the applicable edition of ASTM A269/A269M and the material test certificate.

The chromium content supports the formation of a protective passive surface layer. Nickel contributes to the stability and ductility of the austenitic structure, while molybdenum improves resistance to pitting and crevice corrosion in many environments. The low carbon limit helps reduce sensitization risk during suitable fabrication processes.

These composition limits apply to the specified TP316L tubing material. Any separate fin material or additional fabricated component must be verified against its own material requirements. <Cite refs={["turn813134search4","turn813134search5"]} />

Common minimum mechanical requirements for annealed TP316L tubing are summarized below. Confirm the exact requirements against the applicable standard edition, product form, and purchase specification.
