Enhanced Heat Transfer Tube

Enhanced Heat Transfer Tube, ASTM A213 TP316L, Corrugated Type For Heat Exchanger

All Category

Stainless Steel Heat Exchanger Tube

Duplex Stainless Steel Heat Exchanger Tube

Super Duplex Stainless Steel Heat Exchanger Tube

Nickel Alloy Steel Heat Exchanger Tube

Copper Alloy Steel Heat Exchanger Tube

Titanium Alloy Steel Heat Exchanger Tube

Alloy Steel Heat Exchanger Tube

Carbon Steel Heat Exchanger Tubes

Nickel Alloy Steel Boiler Tube

Duplex Stainless Steel Boiler Tube

Carbon Steel Boiler Tube

Sales Dept. (Marketing Director)

sales@steelseamlesspipe.com

+8613819835483

008613819835483

Contact Now

Enhanced Heat Transfer Tube, ASTM A213 TP316L, Corrugated Type For Heat Exchanger

Brand Name:	Yuhong
Model Number:	Stainless Steel Corrugated Tube,Corrugated Tube, Enhance Heater Transfer Tube
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Mateiral:

ASTM A213 TP316L, TP316H, TP316Ti, 1.4401, 1.4404

Applicable Industry:

Heat Exchanger, Condenser , Air Cooler

Hystrostatic Test

Fin Type:

Corrugated Tube

Length Of Fin Tube:

Max.: 34 M/pc

Fin OD:

15mm ~ 165.2mm

Supply Ability:

10000 Tons/Month

Highlight:

TP316Ti Heat Transfer Tube

TP316H Heat Transfer Tube

ASTM A213 corrugated stainless steel pipe

Product Description

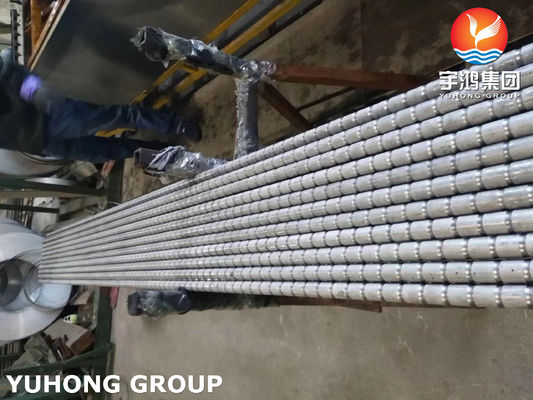

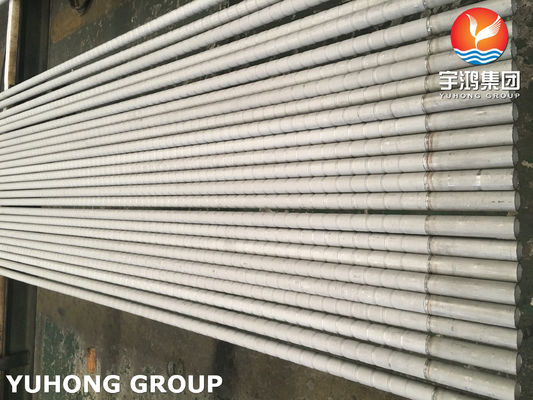

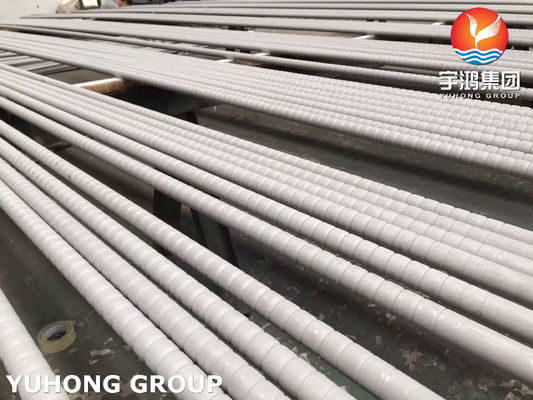

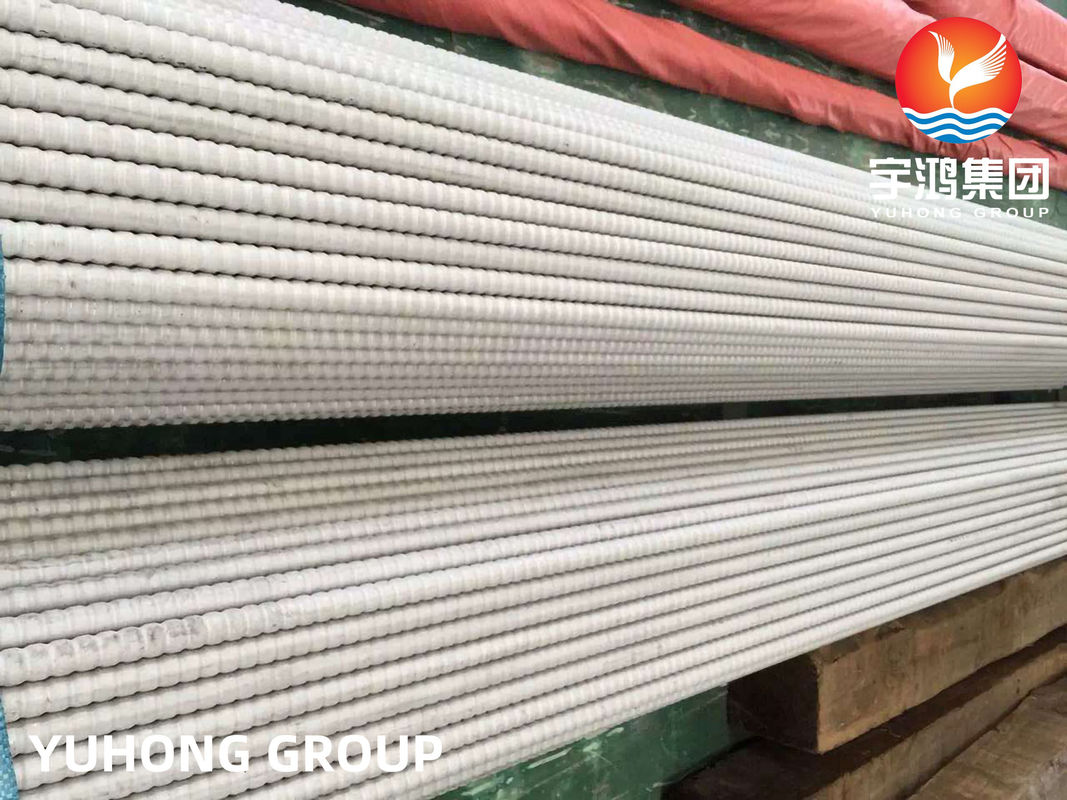

Enhanced Heat Transfer Tube, ASTM A213 TP316L, Corrugated Type for Heat Exchanger

Yuhong Group stainless steel corrugated tubes are a type of tubing that features a corrugated or ribbed outer surface. These tubes are commonly used in various industrial and commercial applications due to their unique properties and advantages, more and more designer like to use stainless steel corrugated tubes in heat exchanger and condenser .

Specifications:

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS
SS 316L	S31608	1.4404	/	X2CrNiMo17-12-2	SUS 316L	/

Grade TP316L is a low-carbon austenitic stainless steel with excellent corrosion resistance, especially against sulfuric and chloric acids.

This material offers excellent corrosion resistance, good weldability, and high and low-temperature performance, making it commonly used in the chemical processing, petrochemical, pharmaceutical, food and beverage, and marine industries. TP316L is a versatile and reliable material suitable for a wide range of industrial and commercial applications.

Chemical Composition OF ASTM A213 TP316L Corrugated Tube:

Grade	C	Mn	Si	P	S	Cr	Ni	Mo	N	Fe
TP316L	≤0.03%	≤2.00%	≤0.75%	≤ 0.045%	≤0.030%	16.00-18.00%	10.00–14.00%	2.00–3.00%	≤ 0.10%	Balance

Mechanical PropertiesOF ASTM A213 TP316L Corrugated Tube:

Grade

Ultimate Tensile Strength

Yield Strength

(0.2% Offset)

Elongation

Hardness

TP316L

485 MPa (70,000 psi) minimum

170 MPa (25,000 psi) minimum

40% minimum in 50 mm

≤ 95 HRB

Applications:
1. Heat Exchangers;
2. Plumbing and Gas Lines;
3. Automotive industry;
4. HVAC systems;
5. Medical and pharmaceutical industry;
6. Agriculture;
7. Solar Water Heaters
8. Chemical processing.
