Expension Wave Tube , ASTM A312 TP310S Enhanced Heat Transfer Application

Brand Name:	Yuhong
Model Number:	Corrugated Fin Tube
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Material Grade:

TP310S

Base Tube Material Standard:

ASTM A312, ASME SA312

Type:

Expension Wave Tube

Application:

Heat Exchanger, Furnace

Supply Ability:

10000 Tons/Month

Highlight:

ASTM A312 Heat Transfer Tube

Heat Transfer Tube TP310S

Expension Wave Tube 515MPa

Product Description

Expension Wave Tube , ASTM A312 TP310S Enhanced Heat Transfer Application

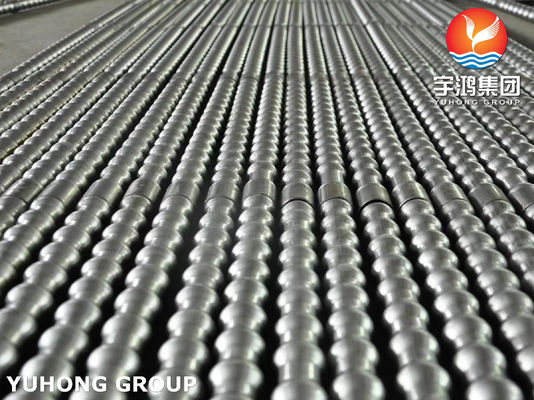

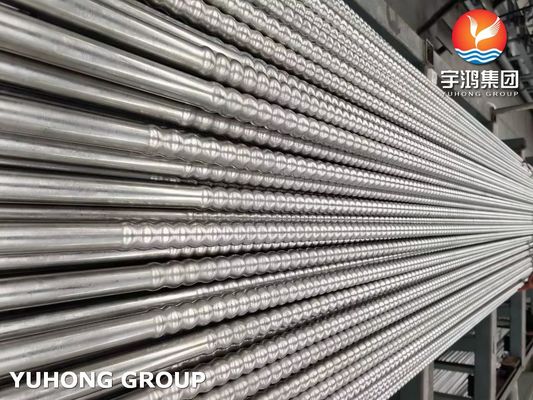

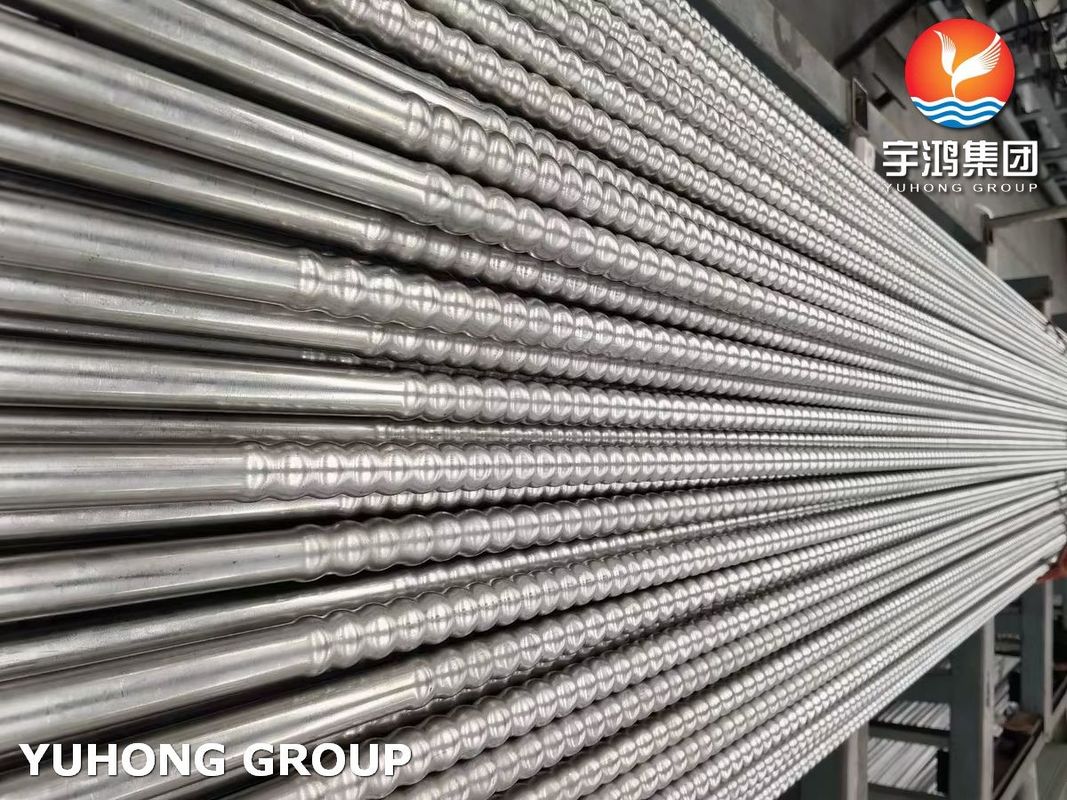

An Expansion Wave Tube is a type of heat exchanger component designed to absorb thermal expansion and contraction stresses, ensuring the integrity and efficiency of the heat exchanger system. When constructed from ASTM A312 TP310S stainless steel, the tubes benefit from the high-temperature and corrosion-resistant properties of this specific grade of stainless steel.

Grade 310S also has good formability, allowing for the manufacture of complex tube shapes.The excellent corrosion resistance, high-temperature strength, and workability of TP310S stainless steel ensure the reliability and longevity of Expansion Wave Tubes in demanding industrial conditions.

Chemical Composition:

Grade	Cr	Ni	C	Mn	Si	P	S	Fe
TP310S	24-26%	19-22%	0.08% max	2% max	1.5% max	0.045% max	0.03% max	Balance

Mechanical Properties:

Grade

Tensile Strength

Yield Strength
(0.2% Offset)

Elongation

Hardness

TP310S

Minimum 515 MPa

(75,000 psi)

Minimum 205 MPa

(30,000 psi)

Minimum 35% in 50 mm

(2 inches)

Maximum 95 HRB

(Rockwell hardness)

Applications:

1. Heat Exchangers:

High-Temperature Applications: Ideal for heat exchangers in industries that operate at high temperatures, such as power generation, chemical processing, and oil and gas refining.
Thermal Expansion Compensation: Used to accommodate thermal expansion and contraction, reducing stress and preventing damage to the heat exchanger.

2. Furnace Components:

Radiant Tubes: Employed in furnaces as radiant tubes due to their ability to withstand high temperatures and resist oxidation.
Retorts and Muffles: Suitable for use in furnace retorts and muffles, providing durability and resistance to thermal cycling.

Expension Wave Tube , ASTM A312 TP310S Enhanced Heat Transfer Application 0
