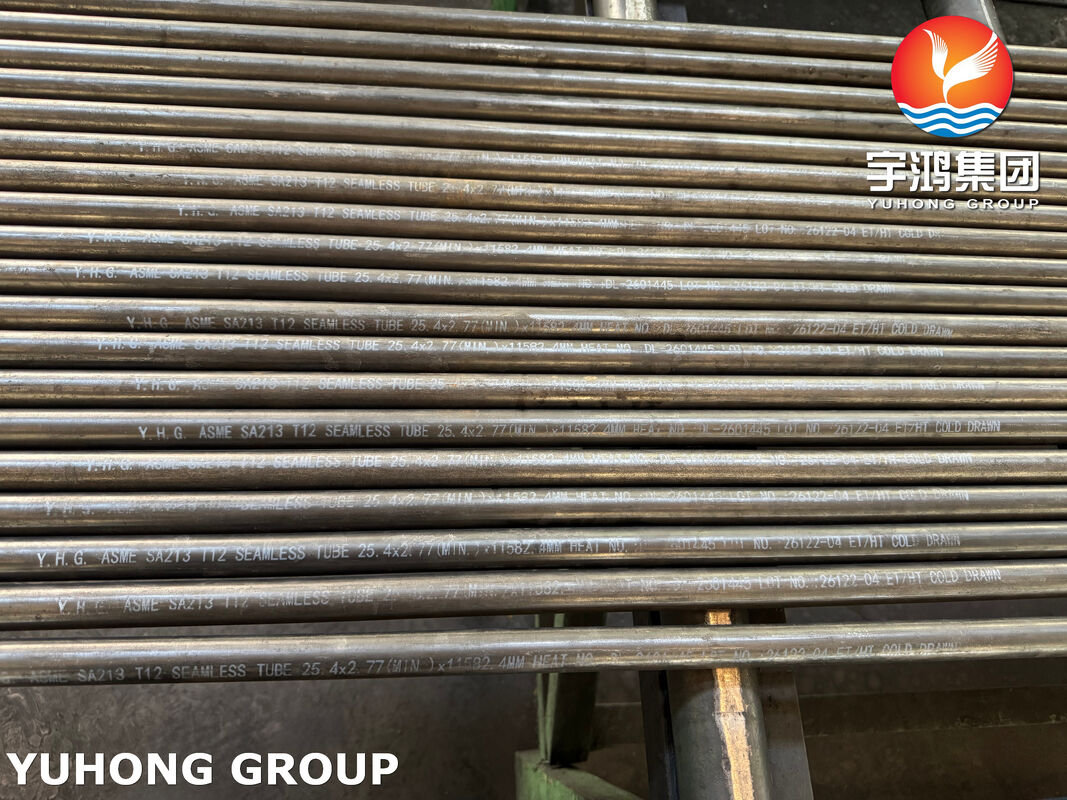

ASME SA213 T12 Alloy Steel Seamless Tube - High Temperature High Pressure Boiler Tube

ASME SA213 T12 Alloy Steel Seamless Tube For Thermal Power Plant Superheater

​

1. Product Overview

ASME SA213 T12 Alloy Steel Seamless Tube is a premium ferritic pearlitic Cr-Mo low alloy seamless tube engineered for extreme high-temperature and high-pressure industrial service. Complying with ASME SA213 and equivalent ASTM A213 standards, this grade (UNS K11562, 1Cr-0.5Mo) is specifically manufactured for boiler, superheater, reheater, and heat exchanger systems in power generation, petrochemical, and thermal energy projects. Unlike ordinary carbon steel tubes, SA213 T12 seamless tubes deliver stable mechanical performance and outstanding creep resistance under long-term elevated temperature conditions, making it one of the most widely used medium-temperature pressure-bearing alloy tubes worldwide.

All our SA213 T12 seamless alloy steel tubes are 100% seamless manufactured, processed with standardized normalizing and tempering heat treatment, free of welding seams and structural defects. Strict chemical composition control and precision dimensional tolerance ensure full compliance with international pressure vessel and thermal system operation specifications.

2. Core Standard & Material Identification

Executive Standard: ASME SA213 / ASTM A213M (Consistent international technical specifications)

Grade: T12 Low Alloy Cr-Mo Steel

UNS Number: K11562

Equivalent Grade: EN 13CrMo4-5 (1.7335), JIS STBA22, GB 15CrMoG (similar alternative for regional projects)

Product Type: Hot Finished / Cold Drawn Seamless Alloy Steel Tube

Main Application: High-temperature boiler heating surfaces, superheater tubes, reheater coils, heat exchanger tubes, and high-pressure steam pipeline components

3. ASME SA213 T12 Chemical Composition(WT%)

The balanced chemical formula of SA213 T12 alloy steel ensures excellent high-temperature oxidation resistance, creep strength, and structural stability:

Chromium enhances high-temperature oxidation and corrosion resistance, while molybdenum significantly improves long-term creep resistance and thermal stability, preventing permanent deformation under continuous high-pressure and high-temperature working conditions.

4. Mechanical Properties

ASME SA213 T12 seamless tubes feature reliable mechanical strength and ductility, meeting strict pressure equipment operation requirements:

• Tensile Strength: ≥ 415 MPa (60 ksi)
• Yield Strength: ≥ 220 MPa (32 ksi)
• Elongation: ≥ 30% (50mm gauge length)
• Max Hardness: 163 HBW
• Max Working Temperature: Up to 550°C (1022°F)

5. Key Features & Advantages

ASME SA213 T12 seamless alloy tubes stand out among boiler tube grades due to their cost-performance and stable comprehensive properties:

• Superior High-Temperature Creep Resistance: Maintains stable structural strength under long-term high-temperature and high-pressure cyclic operation, effectively avoiding thermal fatigue and creep deformation.
• Excellent Thermal Stability: Reliable oxidation and corrosion resistance in steam and high-temperature flue gas environments, extending service life of thermal system components.
• Good Process Performance: Ideal weldability and machinability; suitable for cutting, bending, and welding processing (post-weld heat treatment recommended for critical pressure parts).
• Strict Seamless Structure: No welding gaps, uniform wall thickness, consistent internal and external quality, effectively resisting high-pressure impact and medium erosion.
• Cost-Effective Grade: More economical than high-alloy grades like T22 and T91, perfectly matching medium-temperature boiler and heat exchanger working conditions.

6. Industrial Applications

As a core thermal system material, SA213 T12 alloy steel seamless tube is widely applied in global energy and chemical industries:

• Power plant boiler superheater, reheater, and economizer tubes
• Subcritical and medium-pressure boiler heating surface tubes
• High-temperature heat exchangers, condensers, and thermal oil pipeline systems
• Petrochemical high-pressure steam pipelines and reaction furnace tubes
• Industrial furnace heating tubes and high-temperature pressure header components
