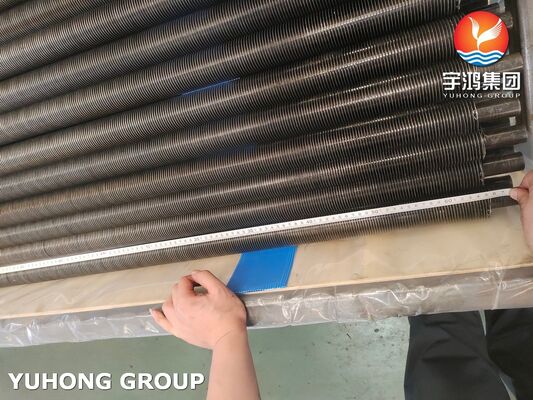

ASTM A179 Carbon Steel Embedded G Fin Tube with Mechanical Cold-Forming Process for Boiler Systems Economizers

Brand Name:	YUHONG
Model Number:	Embedded G Fin Tubes
MOQ:	Depend
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	1000 tons/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001-2015,ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS

Fin Tubes Type:

Embedded G Fin Tubes

Embedded G Fin Tubes Material:

ASTM A179 Carbon Steel Base Tubes, Al1100 Fins

Embedded G Fin Tubes Forming:

Mechanical Cold‑forming Process,Feature: G‑shape Groove

Embedded G Fin Tubes Size:

By Costomers' Requirements

Embedded G Fin Tubes Application:

Air-cooled Heat Exchangers & Air Coolers,Air Cooled Condensers (ACC) In Power Plants,Oil Coolers & Hydraulic System Coolers,Furnace Waste Heat Recovery Equipment And Others

Embedded G Fin Tubes Packing:

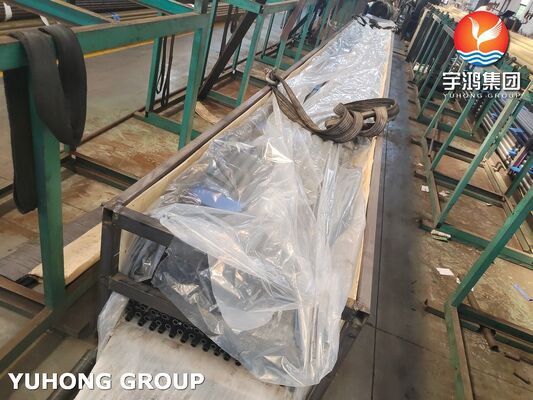

Ply-wooden Case With Iron Frame

Packaging Details:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

ASTM A179 Carbon Steel Embedded G Fin Tube

Mechanical Cold-Forming Process Extruded Fin Tube

Boiler Systems Economizers Finned Tube

Product Description

ASTM A179 Carbon Steel Embedded G Fin Tubes For Boiler Systems Economizers

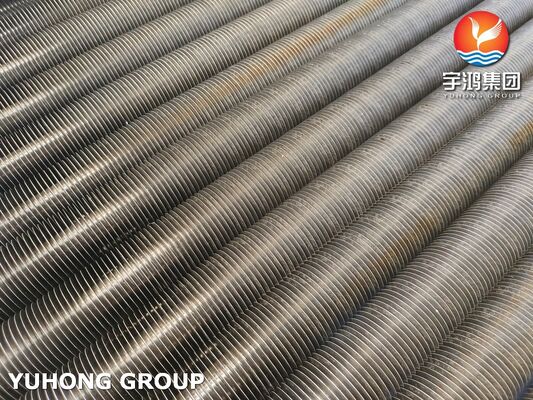

Embedded G fin tubes are manufactured via a mechanical cold-forming process that creates a permanent, high-strength bond between the fin strip and base tube—no welding or brazing is used. The spiral "G-groove" is precision-machined onto the outer surface of the base tube. A continuous metal fin is tension-wound into the groove, and then the sidewalls of the groove are cold-rolled/backfilled to firmly lock the fin root. This mechanical interlocking ensures excellent thermal conductivity and resistance to vibration and thermal cycling.

ASTM A179 cold-drawn low-carbon seamless tube is the most popular and cost-effective base tube choice for embedded G finned tubes (especially steel-aluminum embedded G finned tubes, most widely used; cost-effective; ≤260°C). ASTM A179 specification covers minimum-wall-thickness tubular heat exchangers, condensers, and similar heat transfer apparatus. Its core advantages lie in four key aspects: processing adaptation, heat transfer, structure, and cost.

Chemical Composition (%) Maximum

Grade	C	Mn	P	S
A179	0.06-0.18	0.27-0.63	0.035	0.035

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
A179	47ksi (325 MPa)	26ksi (180 MPa)	35%

Product Definition & Advantages

The mechanical forming of embedded G finned tubes creates a permanent, highly conductive bond that requires no welding and provides excellent vibration and thermal cycling resistance for medium- to high-temperature heat transfer applications.

Key Advantages:

Excellent bond strength: mechanical interlocking prevents fins from detaching under vibration and thermal cycling
Excellent thermal conductivity: tight, zero-gap contact minimizes thermal resistance
High temperature resistance: suitable for medium to high temperature applications
Versatility: suitable for most metals; compatible with high-pressure systems

Application Industries

Power & Energy
Petrochemical & Natural Gas
Metallurgy & Building Materials
HVAC & Refrigeration
Other Industries & Environmental Protection
