Carbon Steel Embedded G Fin Tube , ASTM A179 With ASTM B209 Al 1060, Heat Exchanger Application

Brand Name:	Yuhong
Model Number:	G Fin tube , Embedded Fin tube , Embedded G type fin tube
MOQ:	1PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case +Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Material Grade:

A179, A192, A-1, C, A214, 10#, 20#, St35.8, St37.8

Base Tube Material Standard:

ASTM A178, ASTM A179, ASME SA179, ASTM A210, ASME SA210

Type:

Straight Tube , U Bend Tube , Coil Tube

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

G Fin Tube , Embedded Fin Tube , Embedded G Type Fin Tube

Fin Material:

Aluminum ,Copper, Stainless Steel, Carbon Steel

Supply Ability:

10000 tons/month

Highlight:

Carbon Steel Embedded G Fin Tube

Embedded G Fin Tube ASTM B209

Al1060 ASTM A179 Heat Exchanger

Product Description

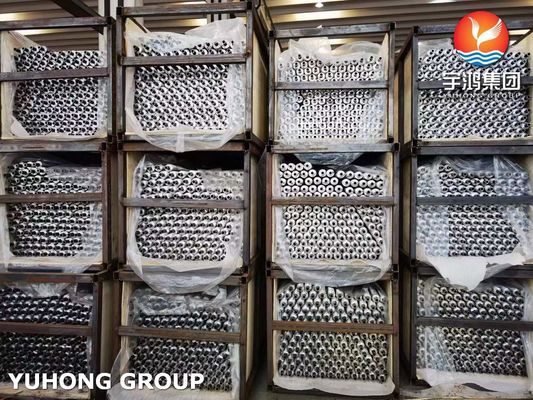

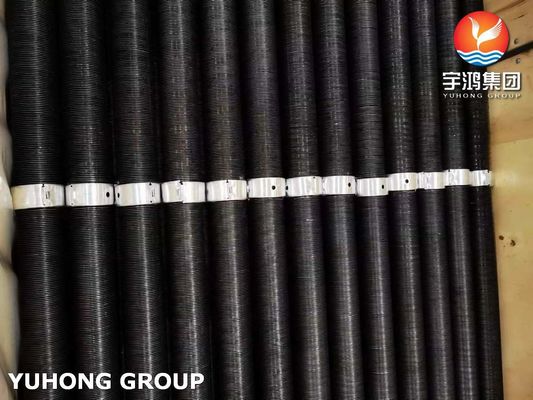

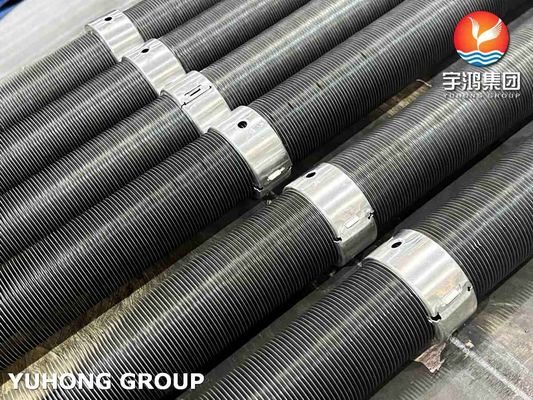

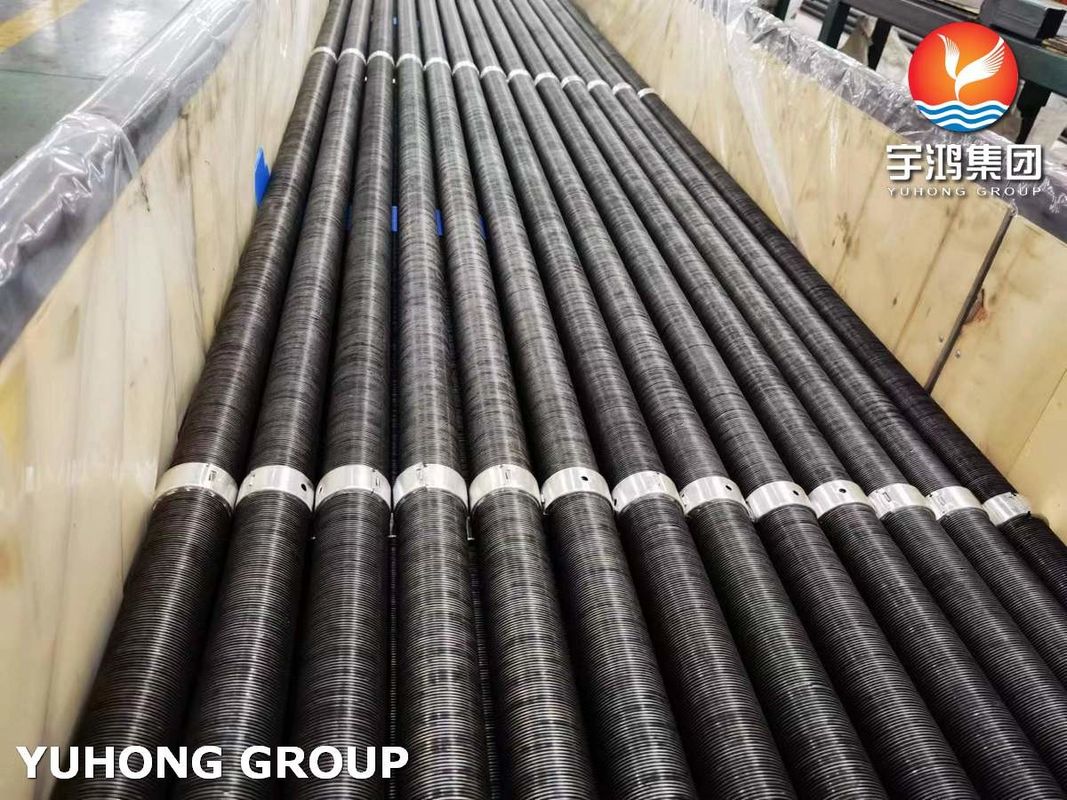

Carbon Steel Embedded G Fin Tube , ASTM A179 with ASTM B209 Al 1060, Heat Exchanger Application

Yuhong Holding Group has more than 35 years experience for steel pipe and tube , fin tube , main application for Petrochemical , Oil refinary, Furnace, heating, boiler, heat exchanger, air cooler,.., till now YUHONG brand products already exported more than 85 countries, which like UK, ITALY, SPAIN , USA, MEXICO , COLOMBIA , BRAZIL, SAUDI ARANBIA , OMAN, QATAR, U.A.E, KOREA, ...., YUHONG brand already won good reputation in the market .

Embedded G type fin tube: The G shaped fins increase the surface area of the tube, allowing for better heat exchange between the fluid inside the tube and the surrounding environment. This results in improved thermal performance and more efficient heat transfer compared to traditional smooth tubes.Additionally, embedded G fin tubes are well known for their resistance to fouling. The fin design helps to disrupt the flow of air or gas around the tube, reducing the accumulation of dust, dirt, and other contaminants that can hinder heat transfer. This resistance to fouling helps maintain optimal performance over time and reduces the need for frequent cleaning and maintenance.

Base Tube/ Core Tube O.D: 15.88-76.2mm
Fin height: 6-19mm
Fin thickness: 0.2-0.6mm
Fin pitch: as customer's request.
End: Plain Ends
No fin area on both side: As Customer's request and drawing

ASTM A179 Chemical Composition (%)

Result

0.06~0.18

0.27~0.63

≤0.035

ASTM A179 Tensile Test ASTM A370-20
TensileStrength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥325	≥180	≥35

Yuhong Group Advantage:

We have more than 20,000 square meters workshop, including 10 finning machines for Embedded G type fin tube, daily extrusion capacity up to 8000m.
Shanghai Port is our nearest seaport and airport, less than 2 hours’ drive away from our workshop, convenient transportation.
Due to high rigidity, studded tubes can be used even under extreme temperature and pressure conditions.

APPLICATIONS : G-FIN; L-FIN; LL-FIN; KL-FIN; EXTRUDED-FIN FINNED TUBES
Tension wound finned tubes, embedded finned tubes and extruded finned tubes are main devices for air coolers and the common application fields as below:
1.Heat exchangers for power plants (electric, nuclear, thermal and geothermal power plants)
2.Steam condensate systems
3.Chemical and petrochemical industry
4.Food processing plants and refrigeration technology
5.Industrial (steel mills, incinerators, gas compression facilities).

Ratings & Review

Overall Rating

4.3

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

33%

4 stars

67%

3 stars

2 stars

1 stars

All Reviews

S*.

Thailand Jan 19.2026

Helpful (9)

Very professional team, easy to talk to. We had some specific size requirements and they nailed it. The TP304 stainless tube with aluminum fins works like a charm for heat dissipation. Thumbs up!

A*a

Morocco Nov 20.2025

Helpful (1)

The material compliance with ASTM A269 and the use of TP316L grade give us confidence in its durability and safety.

Mahmoud

Egypt Oct 14.2025

Helpful (3)

no leaks, no fin damage, performance stable.
