Monel 400 Embedded G Fin Tube , Base Tube ASME SB163 NO4400, Fin Material Al 1060

Brand Name:	Yuhong
Model Number:	G Fin tube , Embedded Fin tube , Embedded G Type Fin Tube
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case + Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Material Grade:

NO4400 , Monel 400 , 2.4360

Base Tube Material Standard:

ASTM B163 , ASME SB163

Type:

Straight Tube , U Bend Tube , Coil Tube

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

G Fin Tube , Embedded Fin Tube , Embedded G Type Fin Tube

Fin Material:

Aluminum , Copper , Stainless Steel , Carbon Steel

Supply Ability:

10000 Tons/Month

Highlight:

Monel 400 G Fin Tube

G Fin Tube ASME SB163

Base Tube Al 1060

Product Description

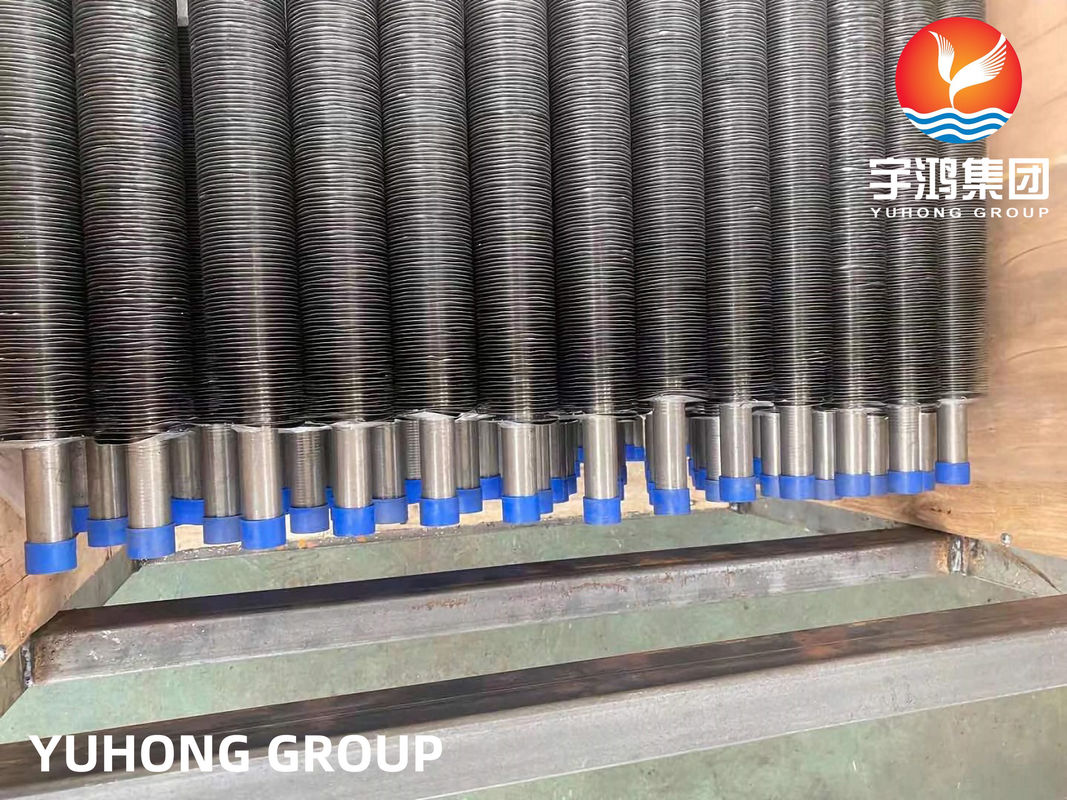

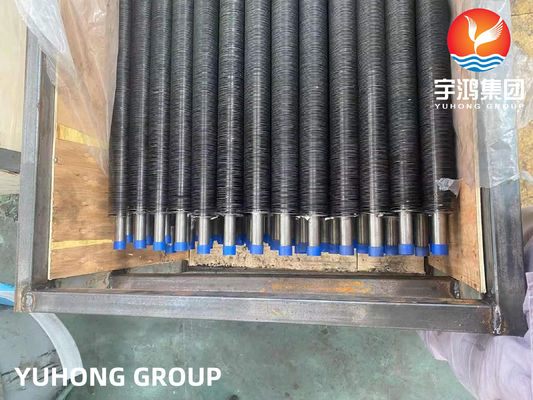

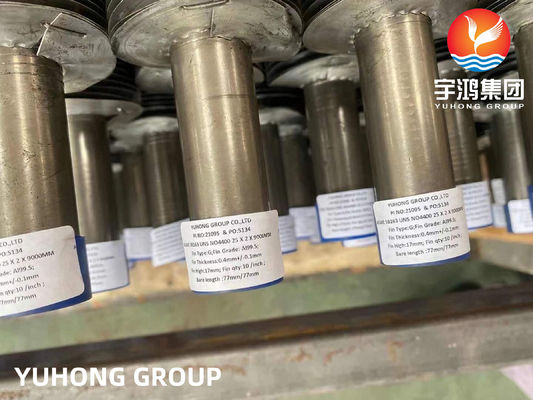

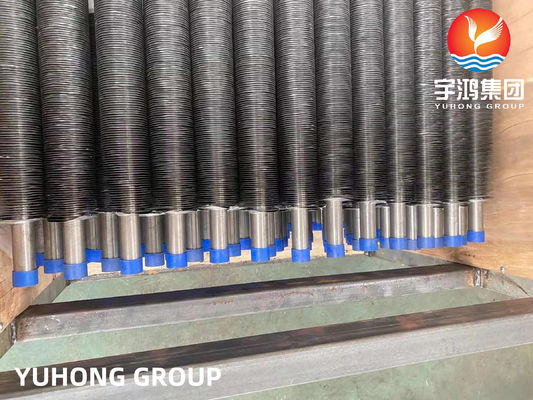

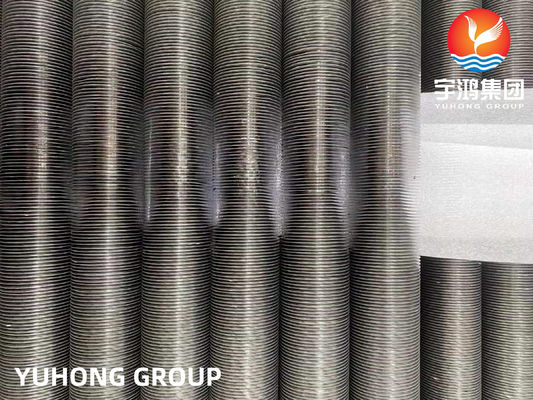

Monel 400 Embedded G Fin Tube , Base Tube ASME SB163 NO4400, Fin Material Al 1060

Embedded G fin tubes, or G-type fin tubes, are a specific type of finned tube where the fins are mechanically embedded or wrapped into the tube. This type of finned tube is known for its strong mechanical bond between the fins and the tube, which ensures good heat transfer and durability. The "G" typically refers to the fin being embedded into a groove cut into the tube surface.

Embedded G fin tubes are widely used in industries where efficient heat transfer, durability, and reliable performance are essential. Their robust construction and enhanced heat transfer capabilities make them valuable components in various heating and cooling systems across different sectors.

Base Tube Material:

Monel 400 (UNS N04400), is one solid solution Nickel Copper Alloy, this material can be hardened only by cold working(drawing or rolling). It has reasonable strength and toughness over a wide temperature range and excellent resistance to lots of corrosive environments. UNS N04400 is widely used in many fields, especially marine and chemical processing.

Material Equivalent:

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Monel 400	2.4360	N04400	NW 4400	NA 13	МНЖМц 28-2,5-1,5	NU-30M	NiCu30Fe

Chemical Composition:

C	Mn	Si	S	Cu	Fe	Ni
0.3 max	2 max	0.5 max	0.24 max	28 – 34	2.5 max	63 min

Mechanical Properties:

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.8 g/cm3	1350 °C (2460 °F)	Psi – 80,000 , MPa – 550	Psi – 35,000 , MPa – 240	40 %

Applications:

Chemical processing
Steam systems
Refineries
Energy plants
Reactors
Heat exchangers
Gas pipeline
Waste Equipment

Monel 400 Embedded G Fin Tube , Base Tube ASME SB163 NO4400, Fin Material Al 1060 0
