ASME SA210 Gr.A-1 Embedded G Type Fin Tube, Aluminum ASTM B209 Gr.1060, Cooling Tower And Heat Exchanger Application

Brand Name:	Yuhong
Model Number:	Embedd G Type fin Tube , G Fin Tube , Embedded Fin Tube
MOQ:	1PC
Price:	Negotiable

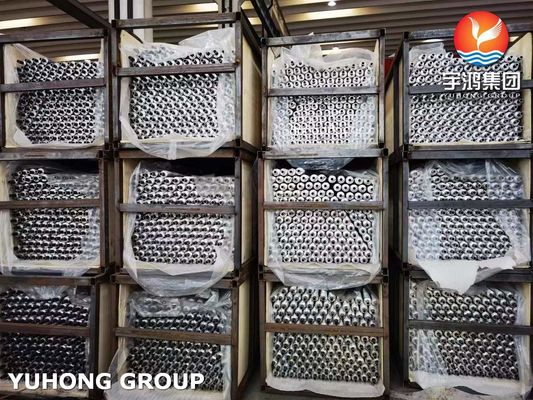

Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	TT, LC

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Material:

ASTM A210 Gr.A-1, ASME SA210 Gr.A-1

Fin Material:

ASTM B209, ASME SB209 Aluminum 1060, 1100

Fin Type:

Embedded G Type Fin Tube , G Fin Tube , Embedded Fin Tube

Application:

Air Cooler, Cooling Tower , Heat Exchanger

Fin Tube Length:

Max.: 34m/pc

Fin Thickness:

0.2~0.5mm

Fin Hight:

12.7~18mm

Supply Ability:

10000 tons/month

Highlight:

ASME SA210 g type finned tube

Embedded g type finned tube

Gr1060 Cooling Tower Tube

Product Description

ASME SA210 Gr.A-1 Embedded G Type Fin Tube, Aluminum ASTM B209 Gr.1060, Cooling Tower and heat exchanger application

Embedded fins (G Fins) are made by winding aluminium or copper strip into a helical groove machined on the outer surface of the tube.
The fin strip is wound into a machined groove and securely locked into place by back filling with base tube material. This ensures that maximum heat transfer is maintained at high tube metal temperatures.

1. MAXIMUM WORKING TEMPERATURE 400°C
2. ATMOSPHERIC CORROSION RESISTANCE LOW
3. MECHANICAL RESISTANCE RESISTANC MEDIUM
4. FIN MATERIALS ALUMINIUM, COPPER, CARBON STEEL
5. BASE TUBE MATERIALS Stainless Steel, Carbon Steel, Alloy Steel, Titanium, Copper, Duplex Stainless Steel, Inconel etc. (all material in the theoretical limit).

ASME SA210 Gr.A-1 Embedded G Type Fin Tube, Aluminum ASTM B209 Gr.1060, Cooling Tower And Heat Exchanger Application 0

Standard: ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes

Steel Grade: Grade A-1; Grade C

Delivery Condition: Annealed, Normalized, Normalized and Tempered

ASME SA210 Gr.A-1 Chemical Composition (%)

Result

≤0.27

≤0.10

≤0.93

≤0.035

ASME SA210 Gr.A-1 Tensile Test ASTM A370-20
TensileStrength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥415	≥255	≥35

Applications:

Heat exchangers for power plant:Electric, nuclear, thermal and geothermal power plants;
High corrosive systems: Condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids;
Petrochemical industries;
Food processing ;
Refrigeration industries;
Natural gas treatment--LNG Gas Station.

ASME SA210 Gr.A-1 Embedded G Type Fin Tube, Aluminum ASTM B209 Gr.1060, Cooling Tower And Heat Exchanger Application 1
