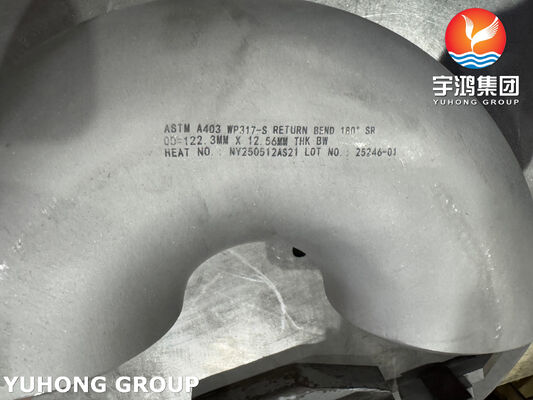

A403 WP317-S 180° Return Bend is a seamless, butt-weld stainless steel pipe fitting designed to reverse fluid flow by 180° (U-bend shape), fully compliant with ASTM A403/A403M material spec, ASME B16.9 dimensions, and Class S (seamless, no mandatory NDE beyond standard checks) requirements.

1. The material: ASTM A403 WP317-S

(1). Chemical Composition of ASTM A403 WP317

The table below outlines the required chemical composition for WP317 stainless steel.

(2). Mechanical Properties of ASTM A403 WP317

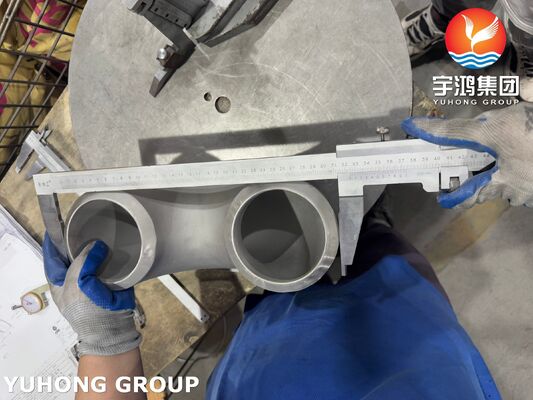

2.180° Return Bend:

U-shaped fitting where two ends are parallel and opposite; available as Long Radius (LR, R=1.5D) or Short Radius (SR, R=1.0D). It replaces two 90° elbows for a compact flow reversal.

3. Key specs & features

• Connection: Butt-weld ends (beveled per ASME B16.25 for full-penetration welding).
• Heat treatment: Solution annealed (typically 1040°C/1900°F followed by water quenching).

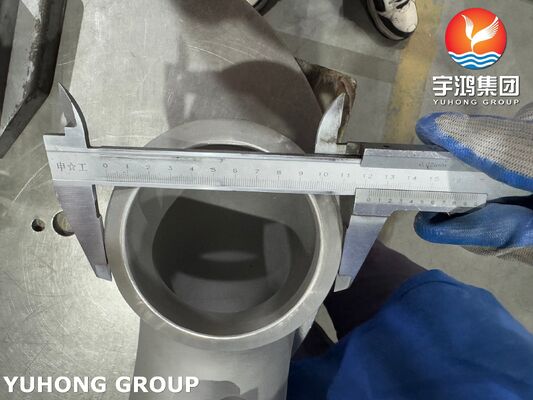

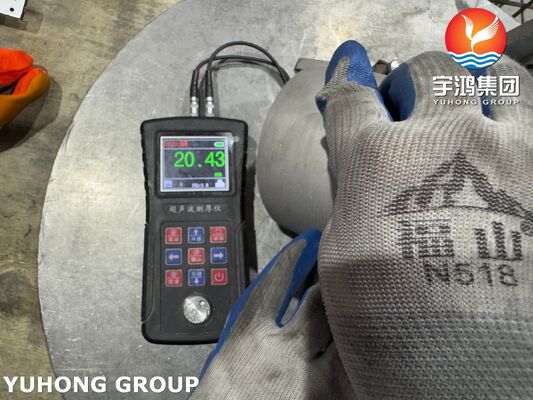

• Typical dimensions: NPS ½ to 24 (seamless), schedules 5S, 10S, 40S, 80S, STD, XS, etc.

Main Advantages & Applications of A403 WP317S 180° Return Bend

1. Main Advantages

• Superior corrosion resistance: WP317 has higher Mo (3.0–4.0%) than 316, greatly improving resistance to pitting, crevice corrosion, and chloride stress corrosion — much better than 304/316 in aggressive environments.
• Seamless fitting (ClassS)
  • No weld seam inside the fitting
  • Stronger, more reliable under pressure
  • Lower risk of leakage
  • Better surface finish & flow
• 180° flow reversal in one fitting: Replaces two 90° elbows, making layout more compact, cleaner, and cost-effective.
• Butt-weld design: Full penetration welds = strong, permanent, low-maintenance piping system.
• High temperature & pressure capability: Suitable for high-temperature & high-pressure process lines.

2. Primary Applications

• Chemical Processing Industry: For handling corrosive chemicals and acids.
• Power Generation: In boilers, heat exchangers, and high-temperature steam lines.
• Oil & Gas Industry: For piping systems that transport corrosive media or operate under high pressure.
• Heat Exchangers: The 180° return bend is a fundamental component in creating the compact, U-shaped tube bundles found in shell and tube heat exchangers, optimizing space and directing fluid flow.
