| Brand Name: | Yuhong |
| Model Number: | Wound KL Fin Tube |
| MOQ: | Depend |
| Price: | Negotiable |
| Payment Terms: | TT, LC |
| Supply Ability: | 1000 tons/month |

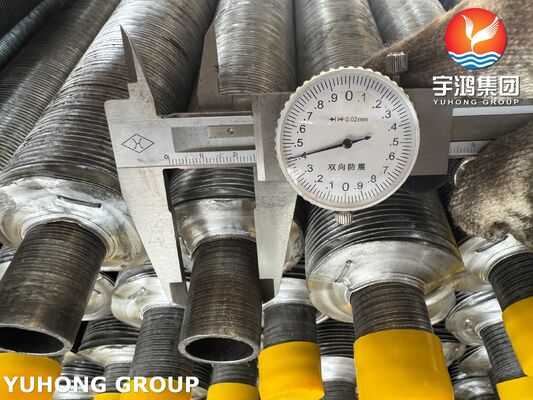

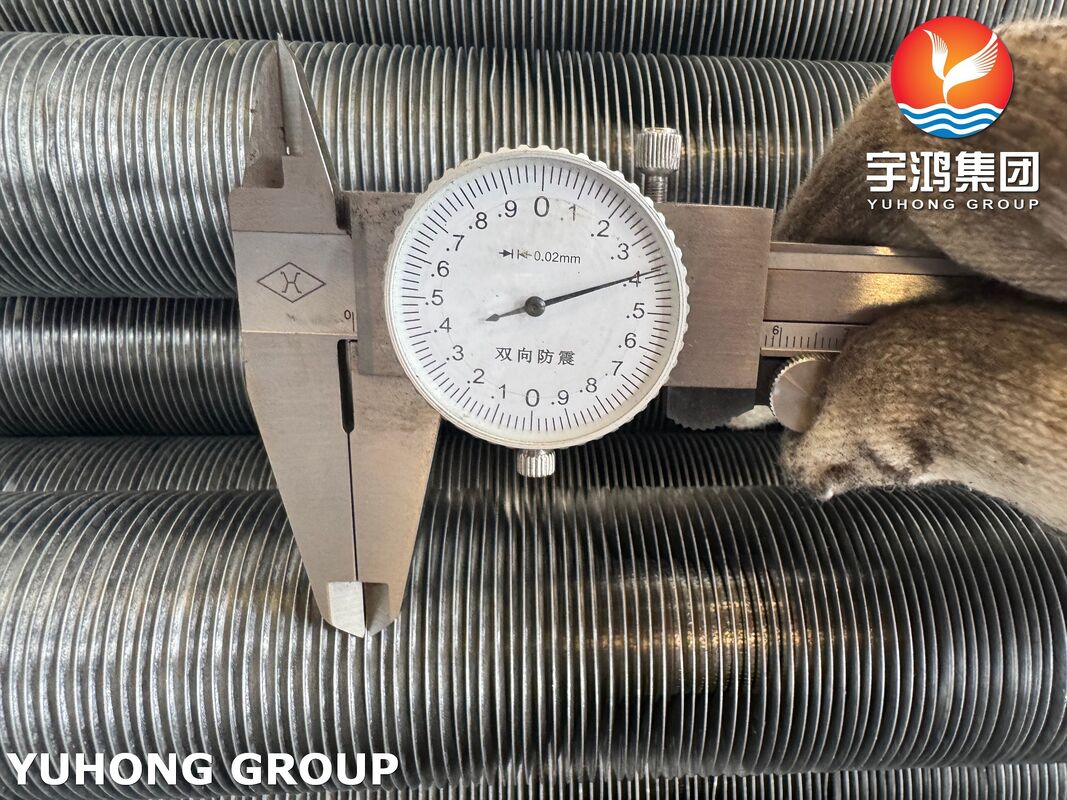

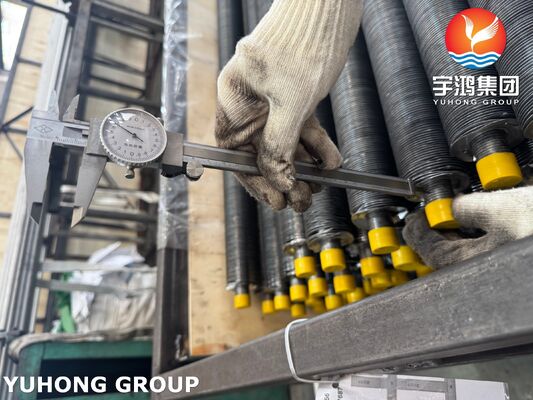

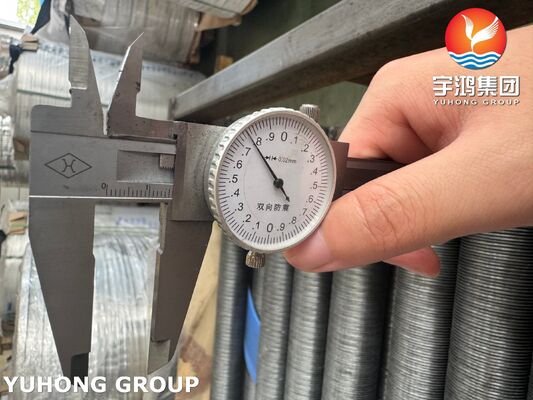

Wound KL Fin Tube Carbon Steel ASTM A179 For HVAC And Refrigeration
Chemical Composition (%) max
| Grade | C | Mn | P | S |
| A179 | 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 |
Mechanical Properties
| Grade | Tensile Strength min | Yield Strength min | Elongation in 2" or 50mm min |
| A179 | 47ksi (325 MPa) | 26ksi (180 MPa) | 35% |
Advantages of Base Tubes A179 For HVAC And Refrigeration
Excellent thermal conductivity: ASTM A179 is cold‑drawn low carbon steel with min. wall thickness, providing stable and efficient heat transfer, ideal for condensers, evaporators and heat exchangers.
Good formability and weldability:easy to machine, expand and weld, making it highly suitable for manufacturing.
Suitable for moderate pressure and temperature: meets the working conditions of most HVAC, refrigeration, chillers, dry coolers and air‑cooled heat exchangers.
Most important is the cost‑effective,lower cost compared with copper and stainless steel, while satisfying performance requirements, helping to reduce unit production cost.
Key Advantages
High heat transfer efficiency suitable for heat exchange applications
Good thermal contact and mechanical stability
Suitable for medium temperature and pressure conditions
Cost-effective for HVAC and refrigeration systems
High durability and strong vibration resistance
Typical Application
Air‑cooled heat exchangers
Refrigeration units, chillers and dry coolers
Heat pumps and industrial process cooling systems
Condensers and evaporators for HVAC systems
