Wound L Type Fin Tube ASTM A249 TP304 For Heat Exchanger , Air Cooler

Brand Name:	Yuhong
Model Number:	L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Material:

TP304

Base Tube Standard:

ASTM A249 , ASME SA249

Type:

Wound, L Type, LL Type, KL Type

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube

Fin Material:

Aluminum , Copper , Stainless Steel , Carbon Steel

Supply Ability:

10000 Tons/Month

Highlight:

steel fin tube For Heat Exchanger

steel fin tube ASTM A249

HVAC Systems ASTM A249 TP304

Product Description

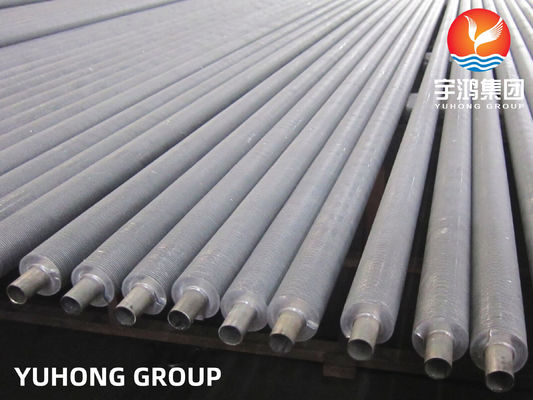

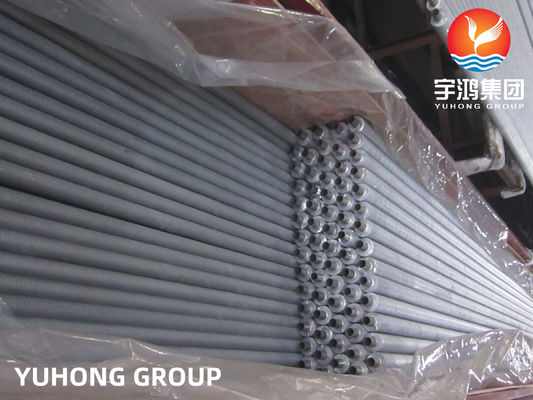

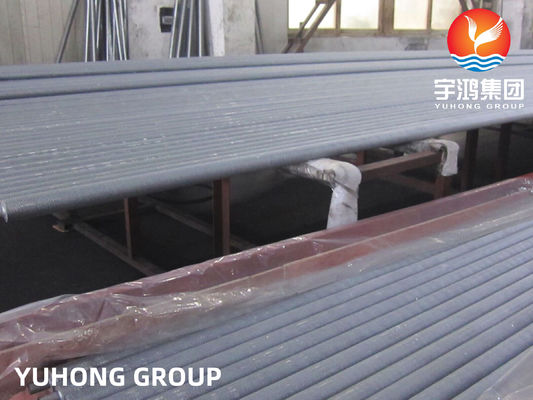

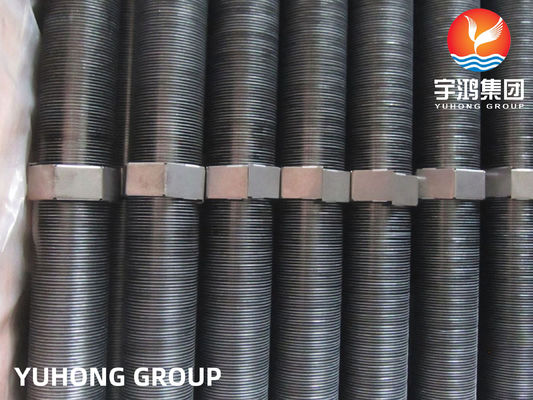

Wound L Type Fin Tube ASTM A249 TP304 For Heat Exchanger , Air Cooler

Grade TP304 is a widely used austenitic stainless steel known for its excellent corrosion resistance, formability, and weldability. It is a member of the 300 series of stainless steels and is composed mainly of chromium and nickel, which provide its outstanding properties.

Wound L Type Fin Tube ASTM A249 TP304 is a specialized heat exchanger component that combines the properties of Grade TP304 stainless steel tubing with the efficient heat transfer benefits of L type fins.

Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Wound	L / KL / LL Type Fin Tube	16-63	2.1-5	<17	~0.4

Chemical Composition:

Grade	Cr	Ni	C	Mn	P	S	Si	N
SA179	18.0–20.0%	8.0–10.5%	≤ 0.08%	≤ 2.00%	≤ 0.045%	≤ 0.030%	≤ 0.75%	≤ 0.10%

Mechanical Properties:

Tensile Strength	515 MPa (75,000 psi) minimum
Yield Strength	205 MPa (30,000 psi) minimum
Elongation	40% minimum in 50 mm
Hardness	≤ 90 HRB

Key Features

Corrosion Resistance: Excellent resistance to a wide range of corrosive environments.
Strength: Good mechanical properties with high tensile and yield strength.
Weldability: Easily weldable by most standard welding methods.
Formability: Good formability, making it suitable for various manufacturing processes.
Hygienic Properties: Suitable for applications requiring high hygiene standards due to its smooth surface and ease of cleaning.

Applications:

1. Heat Exchangers

Shell and Tube Heat Exchangers: Used in situations where efficient thermal transfer between two fluids is essential, such as in chemical processing and power plants.
Air-Cooled Heat Exchangers: Ideal for systems where air is used to cool fluids, common in industrial and HVAC applications.
Plate-Fin Heat Exchangers: Suitable for compact heat exchanger designs where high efficiency and space savings are critical.

2. Air Coolers

Industrial Air Coolers: Used in various industrial processes to cool air or gases, including those in petrochemical and refinery applications.
HVAC Systems: Employed in heating, ventilation, and air conditioning systems for buildings and facilities.
Power Plant Coolers: Used in power plants for cooling air in turbine and generator systems.

3. Food and Beverage Industry

Sanitary Heat Exchangers: Used in processes requiring high hygiene standards due to the stainless steel's resistance to corrosion and ease of cleaning.
