ASTM A213 TP316L Wound With Aluminum 1060 Aluminum L Type Fin Tube , Air Cooler, Cooling Tower

Brand Name:	Yuhong
Model Number:	L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Material:

TP316L

Base Tube Standard:

ASTM A213 , ASME SA213

Type:

Wound, L Type, LL Type, KL Type

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube

Fin Material:

Aluminum , Copper , Stainless Steel , Carbon Steel

Supply Ability:

10000 Tons/Month

Highlight:

ASTM A213 Fin Tube

Fin Tube TP316L

Aluminum 1060 Tube L Type

Product Description

ASTM A213 TP316L Wound With Aluminum 1060 Aluminum L Type Fin Tube , Air Cooler, Cooling Tower

TP316L stainless steel typically exhibits excellent corrosion resistance, high strength at elevated temperatures, and good mechanical properties. It is commonly used in industries requiring resistance to corrosive environments, such as chemical processing, pharmaceuticals, food processing, and marine applications.

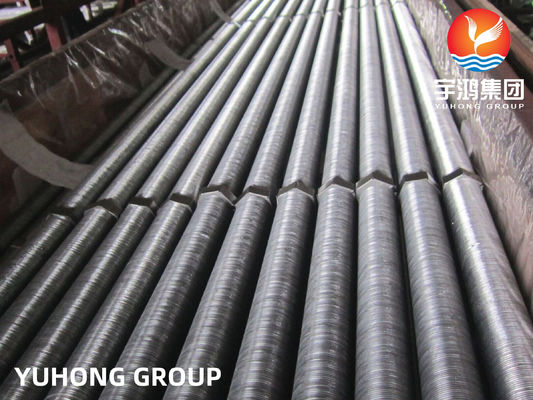

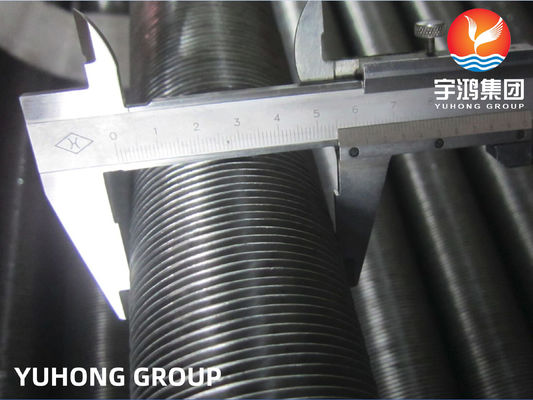

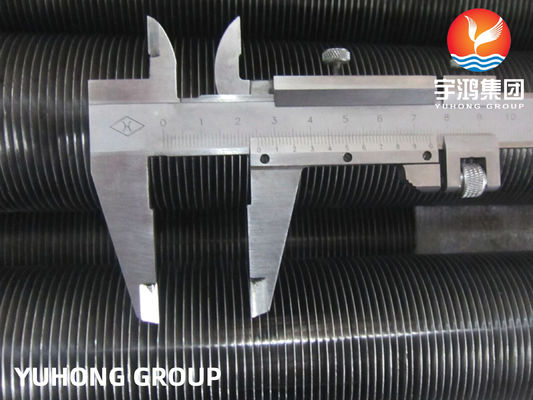

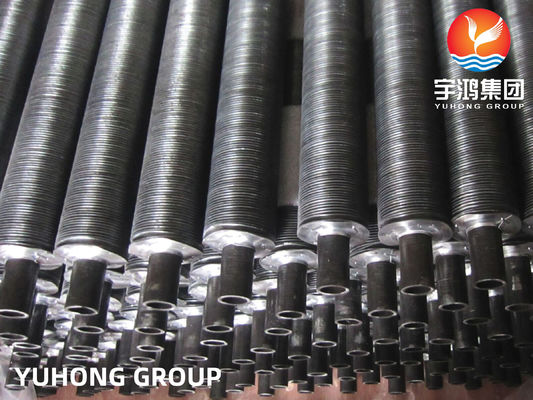

L type fin tubes are made of a thin aluminum fin strip which is tightly wound helically around the circumference of the ASTM A179 base tube. The strip is then tightly wound around the tube, with the foot bearing on the outer surface of the tube. L Type Fin Tube is a type of fin tube used in heat exchangers to increase the surface area for heat transfer between the fluid inside the tube and the fluid outside the tube.

Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Wound	L / KL / LL Type Fin Tube	16-63	2.1-5	<17	~0.4

Chemical Composition:

Grade

TP316L

≤0.03%

≤2.00%

≤0.75%

≤ 0.045%

≤0.030%

16.00-18.00%

10.00–14.00%

2.00–3.00%

≤ 0.10%

Balance

Mechanical Properties:

Tensile Strength	485 MPa (70,000 psi) minimum
Yield Strength	170 MPa (25,000 psi) minimum
Elongation	40% minimum in 50 mm
Hardness	≤ 95 HRB

Applications:

Heat Exchangers: These tubes are designed for applications where efficient heat transfer between fluids is critical, such as in HVAC systems, refrigeration units, power generation plants, and industrial process heat exchangers.
Air Conditioning: Particularly in air conditioning units where the transfer of heat between air and refrigerants is essential.
Industrial Processes: Used in various industrial processes where reliable and efficient heat transfer is required.
Oil and Gas: Sometimes used in oil refineries and petrochemical plants for process heating and cooling.
