| Brand Name: | Yuhong |
| Model Number: | Embedded G Finned Tube with Al1060 Fins |
| MOQ: | 200~500 KGS |
| Price: | Negotiable |
| Payment Terms: | TT, LC |
| Supply Ability: | According to Clients' requirements |

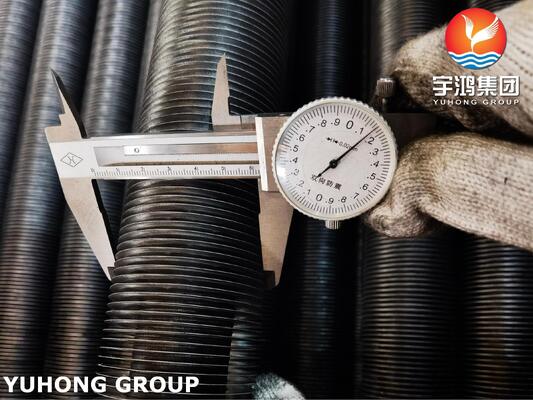

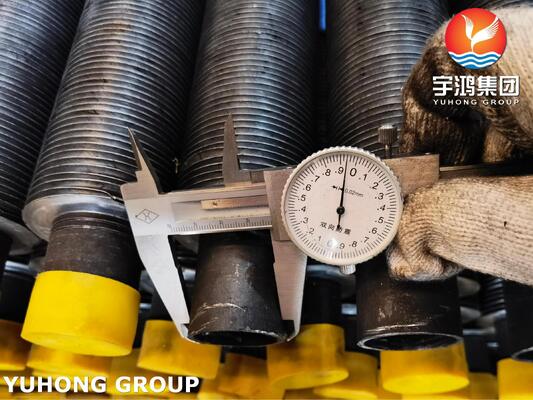

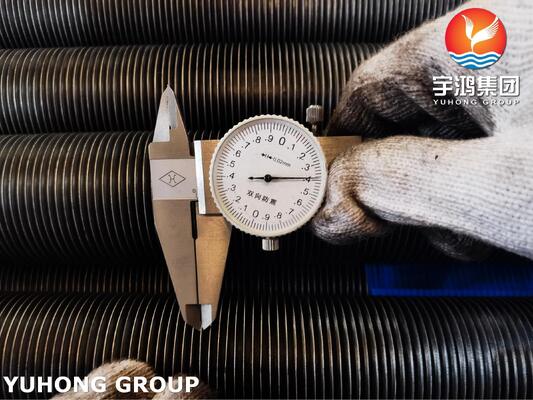

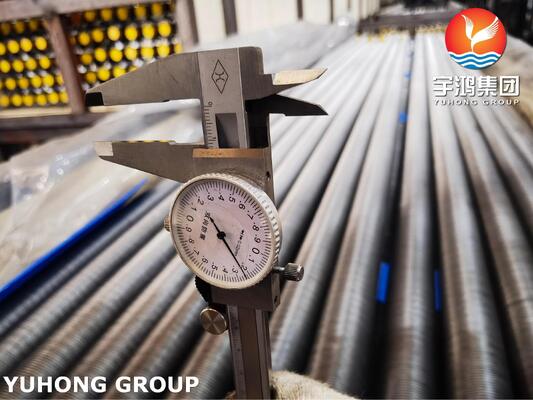

ASME SA179 G Type Embedded Finned Tube with Aluminum Fins For Air Cooler
ASME SA179 G Type Embedded Finned Tube with Aluminum Fins is a high-efficiency heat transfer component: it uses an ASME SA179 low‑carbon steel base tube with aluminum fins mechanically embedded into spiral grooves on the tube’s outer surface. It is widely used in heat exchangers, condensers, air coolers, and HVAC systems.
1. Base Tube: ASME SA179 seamless cold drawn low carbon steel tubes
(1) ASTM A179 (ASME SA179) Chemical Composition (wt%)
| Element | Requirement | Notes |
| Carbon (C) | 0.06 – 0.18 | Low carbon for ductility & weldability |
| Manganese (Mn) | 0.27 – 0.63 | Improves strength & toughness |
| Phosphorus (P) | ≤ 0.035 | Max impurity limit |
| Sulfur (S) | ≤ 0.035 | Max impurity limit |
| Silicon (Si) | ≤ 0.25 | Deoxidizer, residual only |
| Other alloys | Not permitted | Plain low carbon steel |
(2) ASTM A179 Mechanical Properties (Minimum Requirements)
| Property | Value | Unit |
| Tensile Strength | ≥ 325 | MPa (≥ 47 ksi) |
| Yield Strength | ≥ 180 | MPa (≥ 26 ksi) |
| Elongation (in 50 mm / 2 in) | ≥ 35 | % |
| Hardness | ≤ 72 | HRB |
| Modulus of Elasticity | ~200 | GPa |
| Poisson’s Ratio | ~0.29 | — |
2. Embedded Fin Tube/G Type Fin
Refers to the embedded fin design (fin root is pressed/locked into a spiral groove on the tube), creating a strong mechanical bond with low contact thermal resistance.
Advantages of using Aluminum Fins:
3. Key advantages of using ASME SA179 G Type Embedded Finned Tube with Aluminum Fins
4. Typical Specifications
| Parameter | Common Range |
| Base Tube OD | 12–50 mm (1/2–2 in) |
| Fin Height | <17 mm |
| Fin Pitch | 2.1–5 mm |
| Fin Thickness | ~0.4 mm |
| Fin Material | Aluminum (1060, 1100, 3003) |
| Base Tube | ASME SA179 seamless low carbon steel |
5.The application of ASME SA179 G Type Embedded Finned Tube with Aluminum Fins
