Application of ASME SA335 P9 Studded Fin Tubes in High-Temperature Flue Gas Environments

Product Overview

The ASME SA335 P9 studded fin tube represents the pinnacle of high-temperature heat transfer technology, seamlessly integrating exceptional creep strength, outstanding oxidation and corrosion resistance, highly efficient heat exchange performance, and superior anti-fouling capabilities. Rooted in its precisely engineered 9Cr-1Mo-V alloy composition and reinforced by a robust studded structure, this product demonstrates unmatched stability and durability under the harshest industrial conditions—characterized by high temperatures and heavy particulate loads. It not only significantly improves thermal efficiency and extends equipment service life but also enables more compact designs and reduced maintenance demands, offering substantial operational and economic benefits. As industries worldwide advance toward greater efficiency, cleanliness, and sustainability, the ASME SA335 P9 studded fin tube stands out as an ideal solution for high-temperature heating surfaces. Its proven reliability and forward-looking design make it a preferred choice across power generation, petrochemical, and metallurgical applications, where performance, safety, and long-term value are paramount.

Material Properties

ASME SA335 P9 is a chromium‑molybdenum alloy steel seamless pipe that conforms to the American Society of Mechanical Engineers (ASME) standards. Its chemical composition is based on 9%Cr-1%Mo-V, and it exhibits the following key characteristics:

- High-temperature strength: Maintains good creep resistance and long‑term strength within the 550-650 °C range.

- Strong oxidation and corrosion resistance: Forms a dense oxide layer in high-temperature oxidizing atmospheres, effectively resisting flue-gas corrosion.

- Good weldability and workability: Facilitates on‑site installation and maintenance.

- Moderate thermal expansion coefficient: Reduces thermal stress concentration and improves structural stability.

This material is widely used in critical components such as superheaters, reheaters, and high-temperature economizers in supercritical and subcritical boilers.

Structural Features

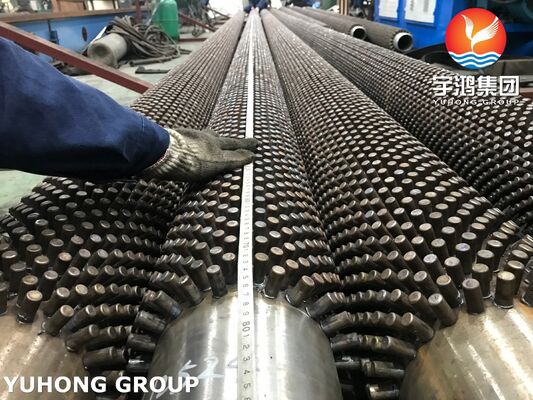

Studded fin tubes are fabricated by welding or integrally forming evenly spaced metal studs onto the outer surface of a base tube, typically made of carbon or alloy steel. Their structural characteristics include:

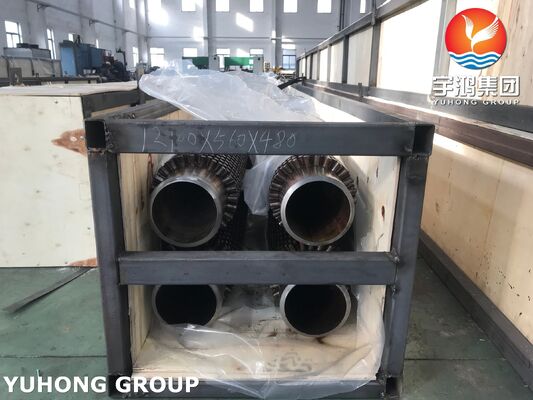

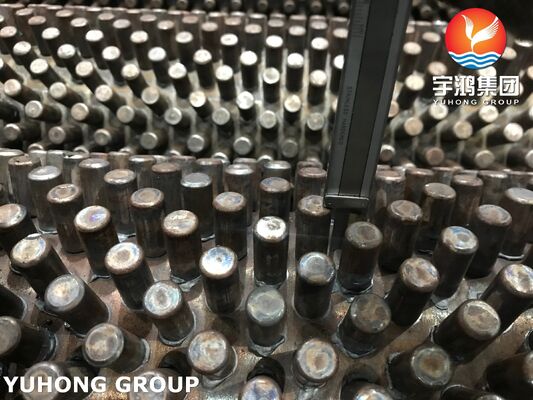

- Studs are arranged in an array pattern, generally 15-30 mm in height and about 3-6 mm in diameter.

- Spacing can be adjusted to suit different flue-gas velocities and ash-deposition conditions.

- The connection between the base tube and studs is robust, providing a short heat‑transfer path and low contact thermal resistance.

Core Advantages

1. Excellent High-Temperature Performance Compatibility

   The SA335 P9 material itself is suitable for long-term service temperatures above 600 °C. Combined with the studded structure, it enables efficient heat transfer on the high-temperature flue-gas side while ensuring the structural integrity of the base tube, preventing failure due to thermal fatigue or creep.

2. Significantly Enhanced Heat-Exchange Efficiency

   - Studs markedly increase the heat-transfer surface area (3-5 times that of bare tubes).

   - Turbulence induced by the studs improves the convective heat-transfer coefficient.

   - Particularly suitable for waste-heat recovery in low-to medium-temperature flue-gas sections, boosting overall system thermal efficiency.

3. Superior Anti-Fouling and Self-Cleaning Capability

   - The stud arrangement provides larger gaps that are less prone to blockage, making it suitable for high-dust flue‑gas environments (e.g., coal-fired or biomass boilers).

   - Vortices generated as flue gas flows around the studs produce a self-cleaning effect, reducing the frequency of shutdowns for ash removal.

   - Can be used in conjunction with steam soot blowers for even higher cleaning efficiency.

4. High Structural Strength and Long Service Life

   - Studs are firmly welded to the base tube, providing good overall rigidity and strong resistance to vibration and thermal shock.

   - The creep resistance of SA335 P9 ensures no deformation or cracking during long-term high-temperature operation.

   - Actual service life can exceed 10 years, significantly lowering replacement costs.

5. Space and Material Cost Savings

   - For the same heat-exchange requirement, studded tubes require less layout space compared with spiral or rolled fin tubes.

   - Reduces equipment footprint and optimizes boiler/heater layout.

   - Although the initial investment is slightly higher, the overall energy efficiency and maintenance costs offer better economic benefits.

6. Wide Applicability

Broad Applications

- Back-end heating surfaces of coal-fired/gas-fired power-plant boilers

- Convection sections of heaters in the petrochemical industry

- Waste-heat boilers (SHRT) in steel plants

- High-temperature economizers in waste-to-energy systems
