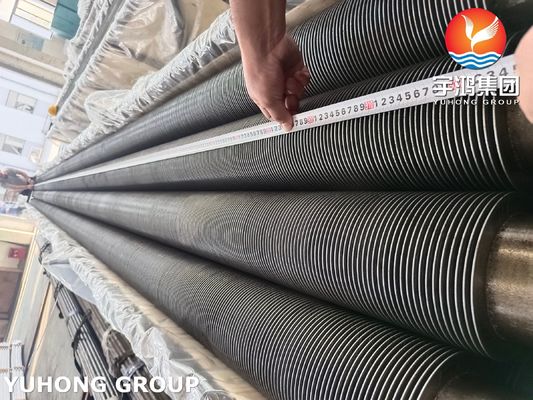

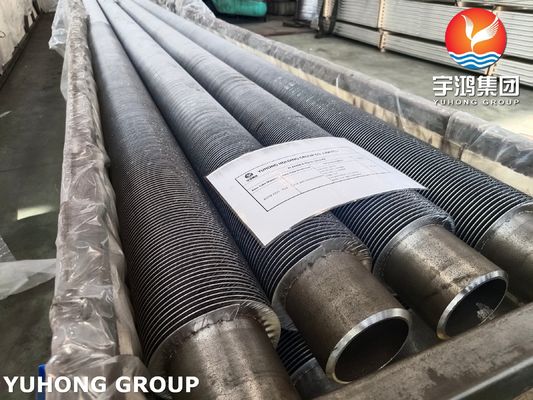

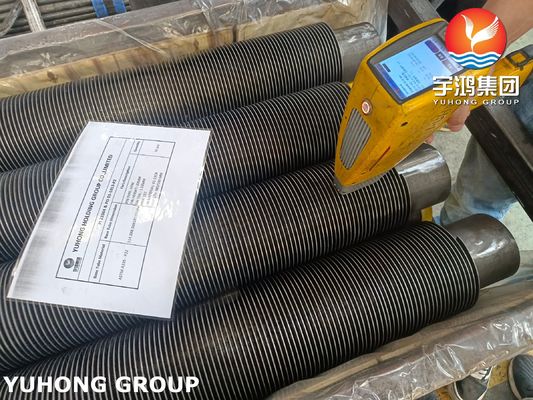

ASTM A335 P22 Alloy Steel Seamless Tube HFW Fin Tube For Power Generation

ASTM A335 P22 Alloy Steel Seamless Tube HFW Fin Tube For Power Generation

The ASTM A335 P22 Alloy Steel Seamless Tube High-Frequency Welding Fin Tube is a specialized heat transfer component designed for use in high-temperature and high-pressure environments. These fin tubes combine the strength and heat resistance of ASTM A335 P22 alloy steel with the efficiency of high-frequency welding technology, making them an ideal choice for critical applications in industries such as power generation, petrochemical, chemical processing, and waste heat recovery systems.

Material Overview

• Base Tube Material:
  The base tube is made from ASTM A335 P22 alloy steel, a ferritic alloy steel with enhanced chromium and molybdenum content. This material is designed for high-temperature service and delivers excellent mechanical properties, creep resistance, and corrosion resistance in aggressive environments.

  • Chemical Composition (Typical):

    • Carbon (C): 0.05–0.15%
    • Manganese (Mn): 0.30–0.60%
    • Silicon (Si): 0.50% max
    • Chromium (Cr): 1.90–2.60%
    • Molybdenum (Mo): 0.87–1.13%
    • Phosphorus (P): 0.025% max
    • Sulfur (S): 0.025% max

  • Mechanical Properties:

    • Tensile Strength: Minimum 415 MPa
    • Yield Strength: Minimum 205 MPa
    • Elongation: Minimum 30%

• Fin Material:
  The fins are typically made from carbon steel, stainless steel, or aluminum, depending on the specific application and operating conditions. These materials ensure good thermal conductivity, corrosion resistance, and durability.

Manufacturing Process

The high-frequency welding (HFW) process is a key technology used to attach the fins to the seamless tube. This process ensures a strong and reliable bond between the fins and the tube, providing efficient heat transfer capabilities.

1. Base Tube Preparation:
   The seamless tube is cleaned, straightened, and inspected to ensure it meets dimensional and surface quality requirements.

2. Fin Preparation:

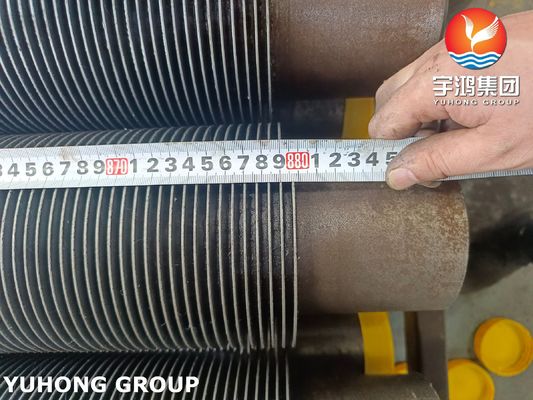

   Fins are formed into helical shapes with precise dimensions to maximize the surface area for heat transfer. The fins can be adjusted in height, thickness, and pitch based on the design requirements.

3. High-Frequency Welding (HFW):

   • The fins are helically wound around the seamless tube.
   • A high-frequency current is applied to generate localized heat at the interface between the tube and the fin edge.
   • Pressure is applied to create a strong metallurgical bond between the fin and tube.

4. Post-Weld Processing:

   • The welded tube is inspected and tested for weld integrity.
   • Heat treatment may be applied to relieve stresses or enhance material properties.
   • The tube is finished to meet the required dimensions and specifications.

Key Features and Advantages

• Superior Heat Transfer Efficiency:

  • The helical fins provide a larger surface area for effective heat transfer.
  • The high-frequency welded joint ensures excellent thermal conductivity between the fins and the base tube.

• High-Temperature and Pressure Resistance:

  • ASTM A335 P22 alloy steel is specifically designed for high-temperature applications, making it suitable for demanding conditions in power plants and industrial environments.
  • The tube can withstand extreme pressures without deformation or failure.

• Corrosion and Oxidation Resistance:

  • The chromium and molybdenum content in P22 alloy steel provides excellent resistance to oxidation and corrosion, even at elevated temperatures.
  • Suitable for environments involving aggressive gases, steam, and other corrosive media.

• Durability and Mechanical Strength:

  • The strong metallurgical bond between the fins and tube enhances durability, even under vibration and thermal cycling conditions.
  • The seamless tube construction provides uniform strength and reduces the risk of failure.

• Customizable Design:

  • Fins can be tailored in terms of height, thickness, and pitch to optimize performance for specific applications.
  • Tube diameter, wall thickness, and length can also be customized based on requirements.

• Cost-Effective Solution:

  • High thermal efficiency allows for more compact and efficient heat exchanger designs, reducing material and operational costs.
  • The durability of the fin tube minimizes maintenance and replacement costs over time.

Applications

The ASTM A335 P22 Alloy Steel Seamless Tube High-Frequency Welding Fin Tube is widely used in various heat transfer systems across different industries, including:

1. Power Generation:

   • Economizers, superheaters, and reheaters in boilers.
   • Heat Recovery Steam Generators (HRSGs) in combined cycle power plants.

2. Petrochemical and Refining:

   • Heat exchangers and condensers in refineries.
   • Air-cooled heat exchangers and process heaters in petrochemical plants.

3. Chemical Processing:

   • Waste heat recovery systems.
   • Heat exchangers for chemical reactors and distillation columns.

4. Waste Heat Recovery:

   • Systems for capturing and utilizing waste heat from industrial furnaces and exhaust gases.

5. HVAC Systems:

   • Air preheaters and industrial heating systems.

Why Choose ASTM A335 P22 High-Frequency Welding Fin Tubes?

• Proven Performance: Designed for extreme operating conditions in critical applications.
• Durability: High resistance to fatigue, corrosion, and oxidation ensures long service life.
• Customization: Tailored designs to meet specific operational and environmental needs.
• Cost Efficiency: Enhanced heat transfer efficiency reduces energy consumption and operational costs.
