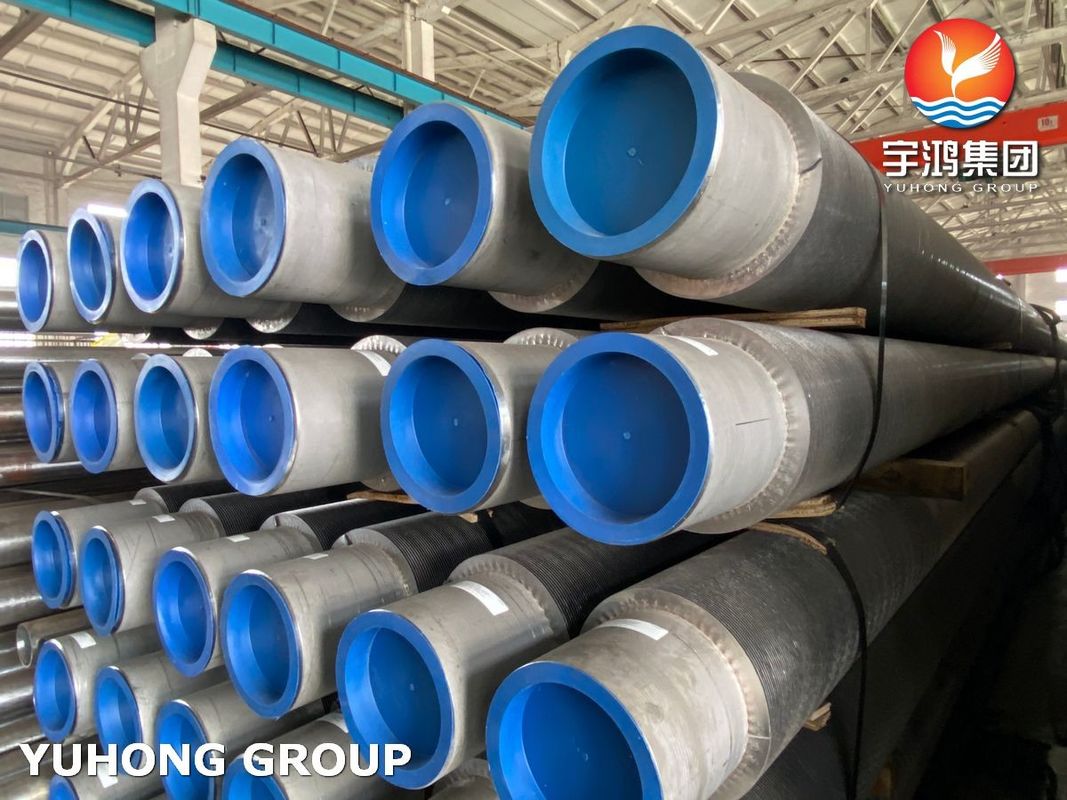

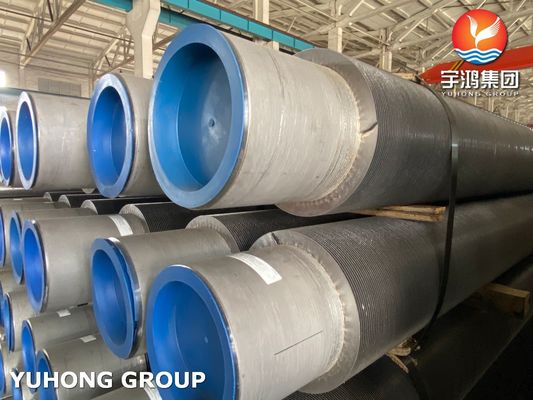

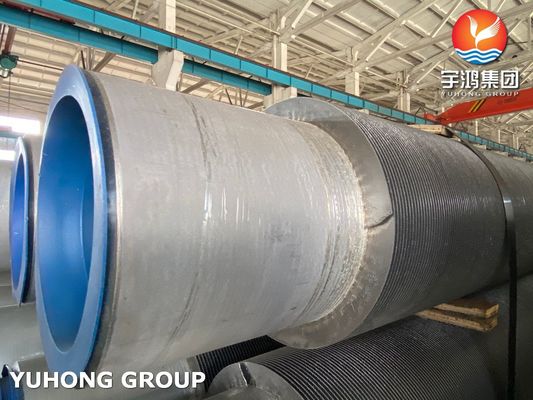

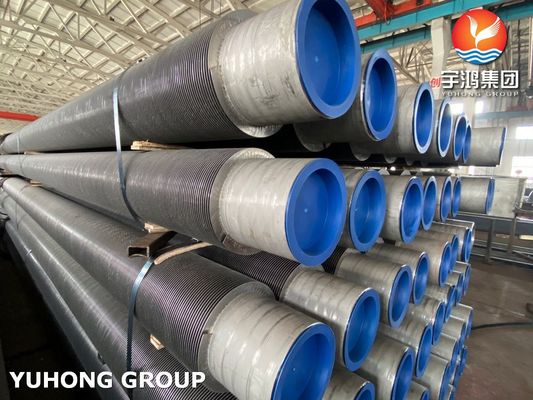

High Frequency Welding Base Tube ASTM A312 TP304 Fin Material ASTM A240 SS 304

High Frequency Welding Base Tube ASTM A312 TP304 Fin Material ASTM A240 SS 304


High Frequency Welding Fin Tube (HFW Fin Tube) also called solid type fin tube, use steel or stainless steel strip or steel round bar directly welded on the pipe /tube surface. This type fin tube can improving heat transfer efficiency much more than bare tube. Due to the tight welding of the fins to the base pipe / tube, these finned tubes are often used in vibrating conditions. HFW Fin tube has many types: Serrated Fin Tube , Flat Fin Tube, Studded Fin Tube .

Base pipe/tube material

Stainless Steel:

• ASME SA213/ASTM A213, ASME SA249/A249, ASME SA312/A312: TP304, TP304L, TP304H, TP310S, TP310H, TP316L, TP316H, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H, TP904L

Duplex/Super Duplex Steel:

• ASME SA789/A789 , ASME SA790/A790: S31803, S32205, S32750, S31500, S32304, S32900

Carbon Steel:

• ASME SA106/ASTM A106 Gr B, Gr C, ASME SA179/ASTM A179, ASME SA192/ASTM A192, ASTM A214, ASTM A210 Gr.A1 , Gr.C.

Alloy Steel:

• ASME SA213/ASTM A213 T1, T11, T12, T22, T23, T5, T9, T91, T92 ;
• ASME SA335/ASTM A335 P1, P11, P12, P22, P23, P5, P9 , P91, P92 , 16Mo3, 15Mo3, 13CrMo-4, 12Cr1MoVG.

Nickel Alloy Steel:

• Hestalloy: C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35.
• Monel: 400, 401, 404, R-405, K500.
• Inconel: 600, 601, 617, 625, 690, 718, 740, X-750.
• Incoloy: 800, 800H, 800HT, 825, 840.

Pure Nickel:

• Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105.
• Copper Alloy Steel: ASTM B111(70400, C70600, C71500, C71640, C68700, C44300)

Fin Material: Alloy Steel , Stainless Steel , Carbon Steel. Stainless Steel High Frequency Welded fins tube, carbon steel High Frequency Welded fins tube, Duplex High Frequency Welded fins tube Super Duplex High Frequency Welded fins tube, Air cooler fins tube, Air preheater fins tube. Extruded fins tube, Serrated fin tubes.

Yuhong Group's Advantage

1. We have more than 20,000 square meters workshop, including 4 finning machines for high frequency welding fin tube, daily extrusion capacity up to 700m.
2. Shanghai Port is our nearest seaport and airport, less than 2 hours' drive away from our workshop, convenient transportation.
3. Due to high rigidity, studded tubes can be used even under extreme temperature and pressure conditions.

High Frequency Welding Fin Tube Applications

1. Air Cooler,
2. Charge Air Chiller,
3. Condenser,
4. Evaporator,
5. Fluid Cooler,
6. Gas Cooler,
7. Oil Cooler,
8. Radiator,
9. Refrigeration,
10. Steam to Air Heat Exchanger,
11. superheater etc.
