| Brand Name: | Yuhong HFW Finned Tubes |
| Model Number: | ASTM A213 TP347H |
| MOQ: | Depend the size of finned tubes |
| Price: | Negotiable |
| Payment Terms: | TT, LC |
| Supply Ability: | 1000 tons/month |
| Attribute | Value |
|---|---|
| Product | Fin Tube |
| Fin Tube Type | HFW / Solid Welded Helical Fin Tubes |
| HFW Finned Tubes Material | ASTM A213 TP347H |
| Fins Material | 11%Cr |
| HFW Finned Tubes Length | According to clients' need |
| HFW Finned Tubes Size and details | According to clients' need |
| HFW Finned Tubes Packing | Ply-wooden Case With Iron Frame |
| HFW Finned Tubes Use | Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, etc |

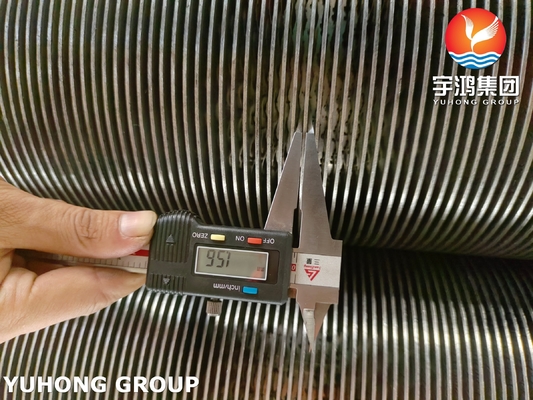

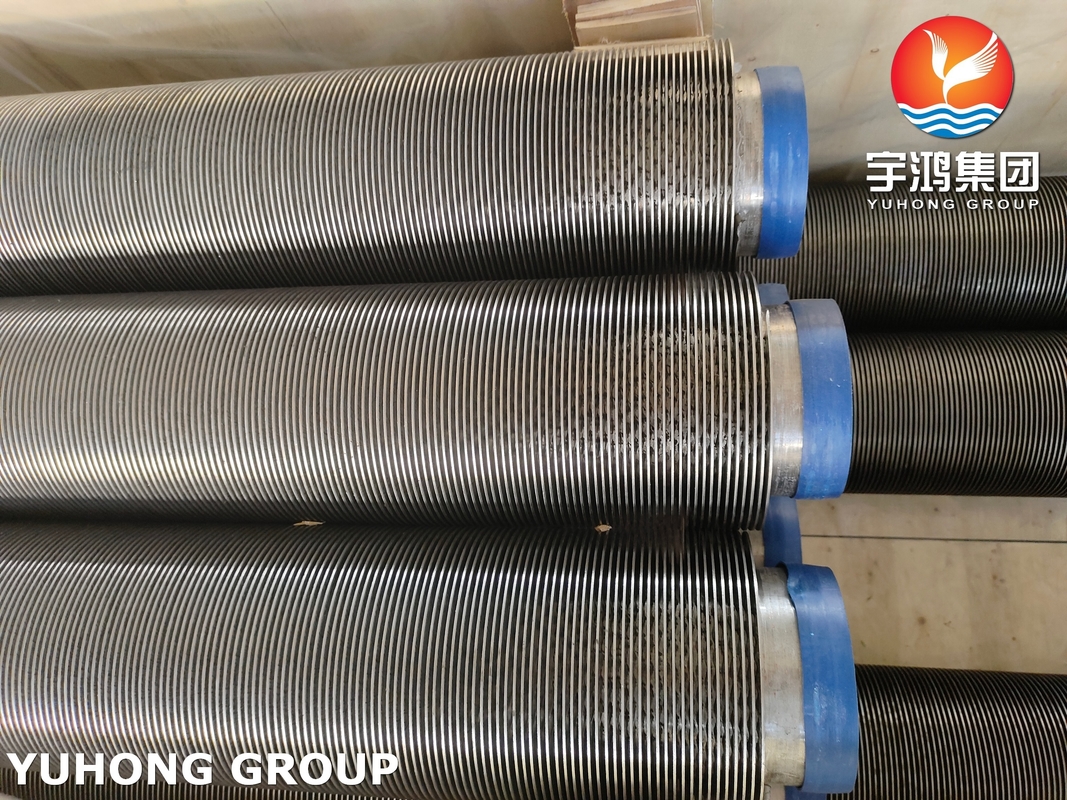

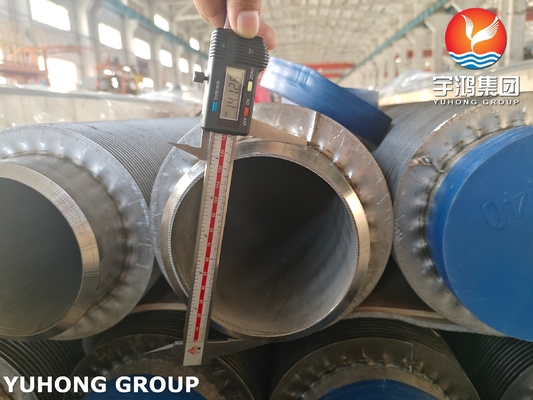

Stainless Steel HFW Finned Tubes ASTM A213 TP347H For Petroleum Refining Project
| Grade | C | Mn | P | S | Si | Cr | Ni |
|---|---|---|---|---|---|---|---|
| TP347H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 17.00-19.00 | 9.0-13.0 |
| Grade | Tensile Strength,min | Yield Strength (0.2%Offset,min) | Tempering Temperature,min |
|---|---|---|---|
| TP347H | 75ksi (515 MPa) | 30ksi (205 MPa) | Hot: 1925°F [1050°C] |
| Elongation in 2 in. | Brinell/Vickers | Rockwell |
|---|---|---|
| 35% | 192HBW/200HV | 90HRB |
ASME SA213/ASTM A213 covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, designated Grades T5, TP304, etc. ASTM A213 TP347H Tubes are high-temperature austenitic stainless steel tubes designed for use in boilers, superheaters, and heat exchangers. TP347H material has excellent oxidation & corrosion resistance and good resistance to sensitization & carbide precipitation.
