Carbon Steel ASTM A179 Embedded Fin Tube For HRSG System

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100kgs
Price:	Negotiable
Packaging Details:	Ply-woonden case with iron frame
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, CCS, BS, LR,

Test:

HT, ET

Fin Hight:

12.7~18mm

Fin Material Grade:

Aluminum 1060, 1100 , 6063

Fin Thick:

0.4 MM

Resistance To Corrosion:

Strong

Size And Details:

According To Clients' Need

Tube Type:

Embedded

Supply Ability:

1000 ton per month

Highlight:

HRSG System Embedded Fin Tube

ASTM A179 Carbon Fin Tube

HRSG System Carbon Fin Tube

Product Description

Carbon Steel Fin Tube, ASTM A179, Embedded Fin Tube, For HRSG System

Product Introduction

The ASTM A179 Carbon Steel Embedded Fin Tube is a specialized heat transfer component used in Heat Recovery Steam Generator (HRSG) systems. It features aluminum or carbon steel fins mechanically embedded into the grooved carbon steel base tube. This design ensures excellent thermal contact and mechanical bonding between the fin and tube, providing efficient and durable heat exchange in high-temperature gas paths typical in HRSG applications.

Chemical Composition – ASTM A179

Element	Content (%)
C	≤ 0.06
Mn	0.27 – 0.63
P	≤ 0.035
S	≤ 0.035
Fe	Balance

Mechanical Properties

Property	Value
Tensile Strength	≥ 325 MPa
Yield Strength	≥ 180 MPa
Elongation	≥ 35%
Max Operating Temp	Up to 400°C

Key Advantages

High Heat Transfer Efficiency
The embedded fin design provides a larger surface area and strong thermal contact, optimizing heat recovery from flue gases.
Strong Mechanical Bonding
Fins are embedded into the base tube using a mechanical rolling process, ensuring long-term durability even under vibration and thermal cycling.
Cost-Effective Option
Carbon steel offers an economical solution for non-corrosive, dry flue gas environments in HRSG systems.
Easy to Fabricate & Replace
ASTM A179 material is easy to bend, cut, and weld, allowing for custom configurations and efficient maintenance.

Applications

Used in HRSG systems as:

Economizer Tubes
Evaporator Coils
Preheater Tubes
Heat Recovery Coils

Position: Installed in the flue gas path of gas turbines or boilers, recovering waste heat to produce steam for combined cycle power plants or process applications.

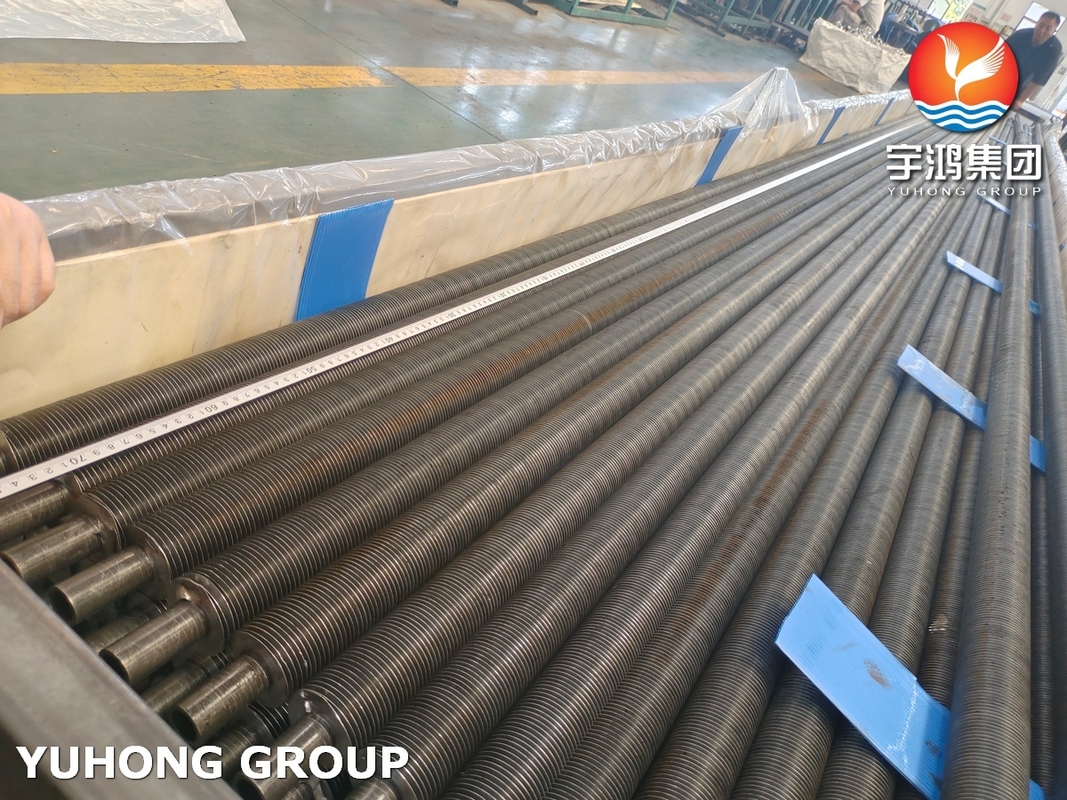

Carbon Steel ASTM A179 Embedded Fin Tube For HRSG System 0
