ASTM A213 T9 Alloy Steel Seamless Studded Fin Tube For HVAC Systems

Brand Name:	YUHONG
MOQ:	200-500KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps）
Payment Terms:	L/C,T/T,AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, ISO, ASTM, SGS

Bare Tube Diameter:

25-219mm

Fin Pitch:

8-30mm

Fin Height:

5-35mm

Fin Thick:

Φ5-20mm

Application:

Heat Exchangers, Refinery Air Cooler, Heater, Cooling Tower

Base Tube Specification & Material::

ASTM A213 T9

Supply Ability:

According to Clients' requirements

Highlight:

ASTM A213 Studded Fin Tube

HVAC Studded Fin Tube

Seamless Studded Fin Tube

Product Description

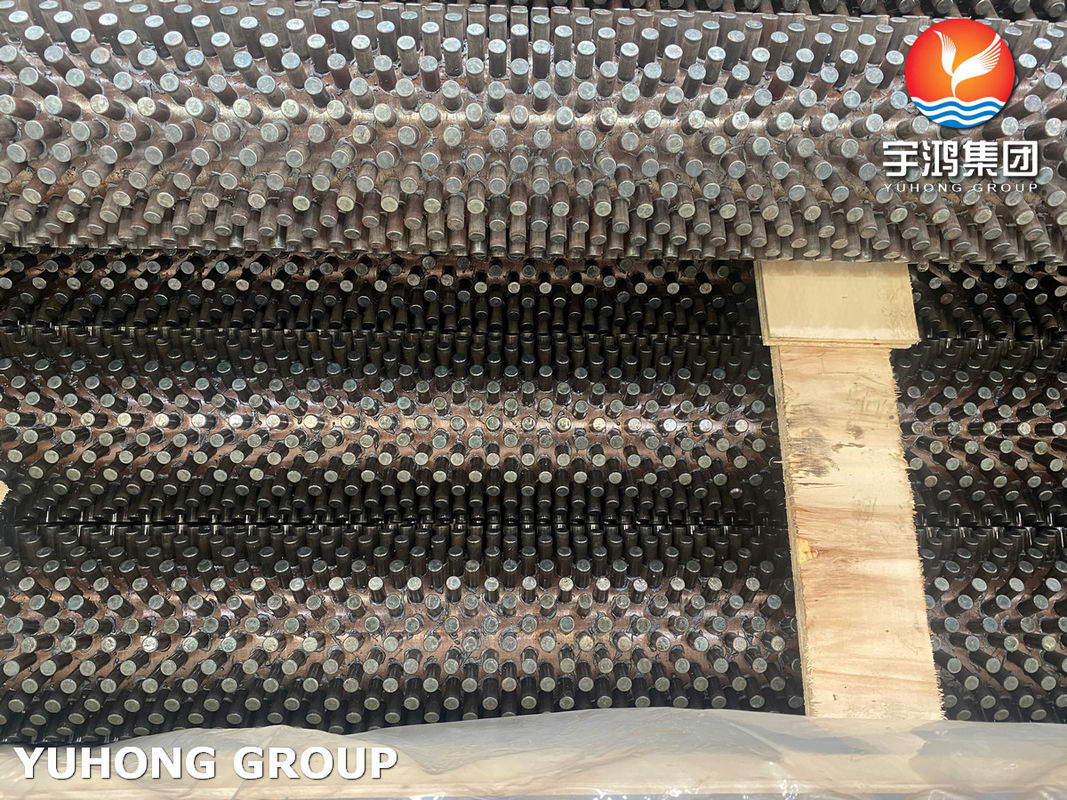

1. What is ASTM A213 T9 Studded Fin Tube?

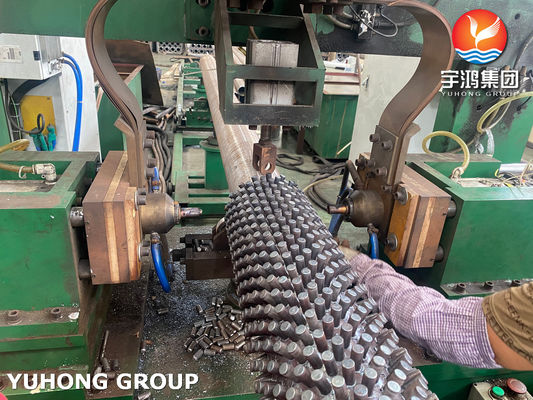

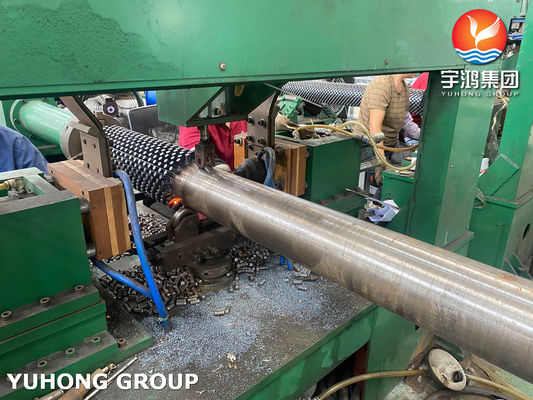

ASTM A213 T9 Studded Fin Tube is a high-temperature heat transfer component engineered for extreme thermal and corrosive service. It consists of a seamless chromium-molybdenum alloy steel base tube (ASTM A213 T9) with stud-type fins resistance-welded perpendicularly to the surface. This robust construction maximizes heat flux in high-ash/flue gas environments (up to 600°C/1,112°F), offering superior oxidation resistance and 3x longer life than carbon steel tubes in waste heat boilers, reformers, and fired heaters.

2. Chemical & Mechanical Properties

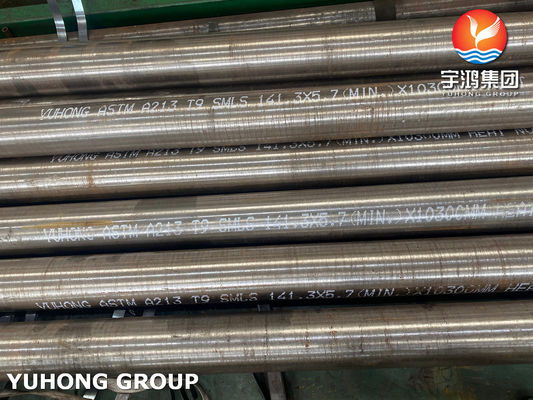

Chemical Composition (ASTM A213 T9 Base Tube)

Element	Content (%)	Critical Function
Chromium (Cr)	8.0–10.0	Oxidation resistance
Molybdenum (Mo)	0.90–1.10	High-temp strength
Carbon (C)	0.15 max	Weldability
Manganese (Mn)	0.30–0.60	Toughness
Silicon (Si)	0.25–1.00	Deoxidation
Phosphorus (P)	≤ 0.025	Purity
Sulfur (S)	≤ 0.025	Ductility

Mechanical Properties (System)

Property	Base Tube (T9)
Tensile Strength	≥ 415 MPa
Yield Strength	≥ 205 MPa
Max Service Temp.	600°C (1,112°F)
Hardness	≤ 179 HB
Thermal Conductivity	36.7 W/m·K

3. Key Applications & Competitive Advantages

· Refinery Heaters: Convection sections in CDU/VDU heaters (resists sulfidation).

· Chemical Reformers: Syngas coolers in methanol/ammonia plants.

· Waste Heat Recovery: Boilers in cement/steel mills (handles >80g/Nm³ fly ash).

· Power Generation: SCR system heat exchangers for coal-fired plants.

· Petrochemical: Cracking furnace convection tubes.

4. Why This Solution Dominates:
· 10-Year Lifespan: Withstands 650°C cyclic operation per NACE RP0492.
· Ash Erosion Resistance: Stud spacing blocks ash buildup – 40% lower fouling vs. helical fins.
· Cost Saving: 35% lower OPEX than refractory-lined carbon steel tubes.
· Customization: Stud height (15–40mm), diameter (3–8mm), and pitch optimization.

ASTM A213 T9 Alloy Steel Seamless Studded Fin Tube For HVAC Systems 0
