ASTM A213 TP316L Embedded G Fin Tube With Aluminum 1060 For Refrigeration And Air Conditioning Systems

Brand Name:	Yuhong
MOQ:	200-500KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps)
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Bare Tube Specification&Material:

ASTM A312 TP316L

Bare Tube Diameter:

16-63 MM

Fin Pitch:

2.1-5 MM

Fin Thick:

~0.4 MM

Fin Height:

<17MM

Application:

Power Plant， Air Preheaters, Boiler，Air Conditioning Systems

Supply Ability:

According to Clients'requirements

Product Description

1. What is ASTM A213 TP316L Solid Fin Tube with Aluminum 1060?

The ASTM A213 TP316L Solid Fin Tube with Aluminum 1060 is a premium heat transfer solution engineered for extreme corrosion resistance and high thermal efficiency. It features a seamless low-carbon stainless steel base tube (ASTM A213 TP316L, 16-18% Cr, 10-14% Ni, 2-3% Mo) integrated with solid Aluminum 1060 fins (99.6% pure Al) through an advanced extrusion process. The fins are mechanically bonded to the tube surface, forming a seamless, monolithic structure that eliminates air gaps and maximizes heat transfer. Ideal for hygienic and aggressive environments, this design combines TP316L’s chloride resistance with Aluminum 1060’s ultra-high conductivity (235 W/m·K), delivering unmatched durability and performance.

2.Chemical & Mechanical Properties

Chemical Properties

Component	Chemical Composition	Key Features
ASTM A213 TP316L Base Tube	• Cr: 16–18%, Ni: 10–14%, Mo: 2–3%, C: ≤0.03%, Fe: Balance.	• Superior resistance to pitting, crevice corrosion, and chlorides. • Passivates naturally for hygienic surfaces.
Aluminum 1060 Fins	• Al: 99.6% min, Fe+Si: ≤0.40%, Cu: ≤0.05%.	• Exceptional thermal conductivity (235 W/m·K). • Non-toxic and oxidation-resistant.
Synergy	• Insulated bonding prevents galvanic corrosion between dissimilar metals.	• Ideal for thermal cycling in acidic/alkaline media.

Mechanical Properties

Component	Mechanical Performance	Key Features
ASTM A213 TP316L Base Tube	• Tensile Strength: 485–620 MPa • Yield Strength: 170 MPa (min) • Hardness: 80–90 HRB.	• High-pressure rating (up to 30 MPa). • Cryogenic toughness (-196°C).
Aluminum 1060 Fins	• Tensile Strength: 70–110 MPa • Elongation: 15–25% • Hardness: 23 HB.	• Lightweight (2.71 g/cm³) reduces system load. • Vibration-absorbing ductility.
Bond Integrity	• Shear Strength: ≥45 MPa at fin-tube interface. • Thermal Shock Resistance: Stable under ΔT 300°C.	• Zero fin lift-off in thermal cycling.

3. Key Applications

·Pharmaceuticals: Sterilizable condensers for CIP/SIP systems.

·Food & Dairy: Pasteurizers, fermenters, and FDA-compliant heat exchangers.

·Chemical Plants: Acid scrubbers, HCl coolers, and seawater reactors.

·Marine & Offshore: Desalination units and seawater cooling systems.

·Energy Sector: Geothermal brine heaters and solar thermal collectors.

4. Why Choose This Solid Fin Tube?
·45% Higher Heat Flux vs. bare stainless steel tubes.
·Zero Galvanic Corrosion: Proprietary bonding isolates metals.
·35% Weight Reduction for lower structural costs.
·Certified Safety: ASTM A213, ASME SA-213, ISO 9001, and FDA compliance.
·25+ Year Service Life in pH 2–12 environments.

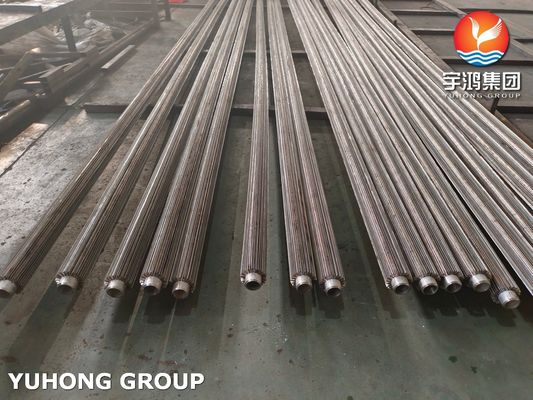

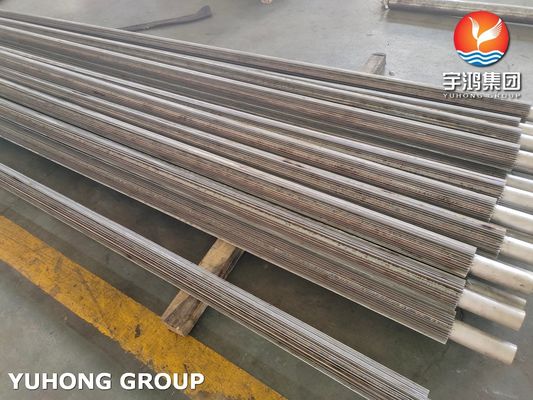

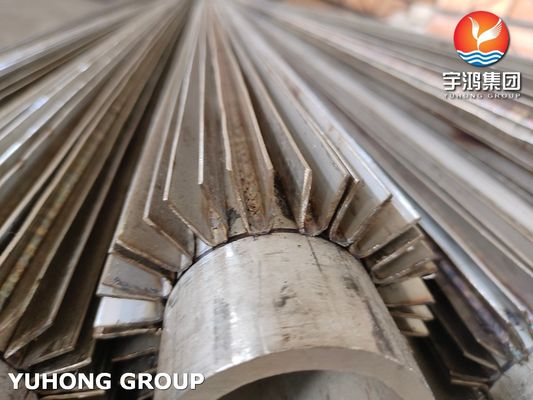

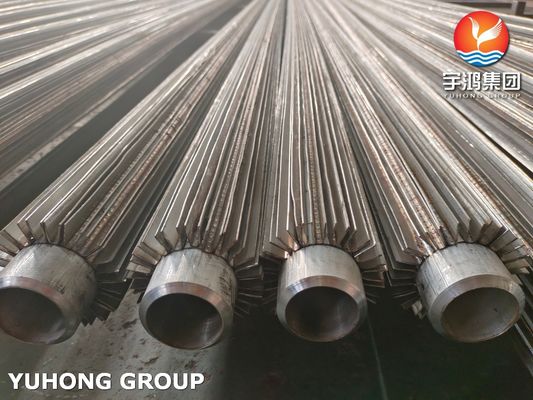

ASTM A213 TP316L Embedded G Fin Tube With Aluminum 1060 For Refrigeration And Air Conditioning Systems 0
