ASTM A179 Carbon Steel G Type Embedded Fin Tube With Al1060 For Air Cooler

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material:

ASTM A179

Fin Material:

Al1060, Al1100

Fin Type:

Embedded Type

Application:

Air Cooler, Refrigeration System

Fin Height:

15.875mm

Fin Thickness:

0.4MM

Product Description

Air Cooler Tube ASTM A179 Carbon Steel Embedded Fin Tube with AL1060 Fin

Key Features:

The G Type Embedded Fin Tube consists of an ASTM A179 carbon steel base tube and Aluminum 1060 fins, mechanically embedded into a machined groove on the tube surface. This structure ensures excellent thermal contact, mechanical strength, and corrosion resistance, making it ideal for high-efficiency air cooling systems.

Chemical Composition:

Element	ASTM A179 Carbon Steel (Base Tube)	AL1060 Aluminum (Fin Material)
Carbon (C)	≤ 0.06%	≤ 0.03%
Manganese (Mn)	0.30% - 0.90%	≤ 0.03%
Phosphorus (P)	≤ 0.035%	-
Sulfur (S)	≤ 0.035%	-
Chromium (Cr)	≤ 0.30%	-
Nickel (Ni)	≤ 0.25%	-
Aluminum (Al)	-	≥ 99.0%

Mechanical Properties:

Property	ASTM A179 Carbon Steel (Base Tube)	AL1060 Aluminum (Fin Material)
Tensile Strength	335 - 485 MPa	70 - 110 MPa
Yield Strength	≥ 205 MPa	30 - 55 MPa
Elongation	≥ 30%	≥ 20%

Advantages of 179 G Finned Tube:

Strong metallurgical bond ensures long service life
Excellent thermal performance and anti-corrosion
High vibration and mechanical stress resistance
Optimized for heat exchange in air-cooled equipment
Lightweight and cost-effective solution

Applications of G Finned Tube:

Air coolers in oil & gas, power plants, and chemical industries
Heat exchangers for air-side applications
Cooling towers, HVAC units, and condensers
Ideal for dry cooling systems operating under harsh ambient conditions

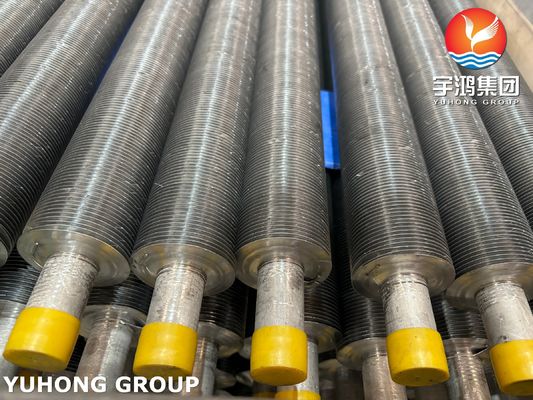

ASTM A179 Carbon Steel G Type Embedded Fin Tube With Al1060 For Air Cooler 0
