ASTM A179 Embedded G Fin Tubes With Aluminum AL1060 For Radiators

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product:

Fin Tubes Or Finned Tube

Type:

Embedded G Type

Standard:

ASTM A179

Material:

Base Tubes SA179 And AL1060 Fins

Application:

Radiators / Heat Exchanger / Economizaer, Etc.

Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

Aluminum Embedded G Fin Tubes

ASTM A179 Embedded G Fin Tubes

Radiators Embedded G Fin Tubes

Product Description

Embedded G Fin Tubes ASTM A179 With Aluminum AL1060 For Radiators

Chemical Composition (%) max

Grade	C	Mn	P	S
A179	0.06-0.18	0.27-0.63	0.035	0.035

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
A179	47ksi (325 MPa)	26ksi (180 MPa)	35%

Details

Manufacture: Tubes shall be made by the seamless process and shall be cold drawn.

Heat Treatment: Tubes shall be heat treated after the ﬁnal cold draw pass at a temperature of 1200°F [650°C] or higher.

Surface Condition: Finished tubes shall be free of scale. A slight amount of oxidation will not be considered as scale.

Hardness Requirements: The tubes shall have a hardness number not exceeding 72 HRB.

Test Methods Referreds: Flattening Test, Flaring Test, Flange Test, Hardness Test, Hydrostatic Test,etc.

Keywords: Cold drawn tubes, Condenser tubes, Heat exchanger tubes, Low carbon tubes, Seamless tubes, Boiler tubes, etc.

ASTM A179 covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus.

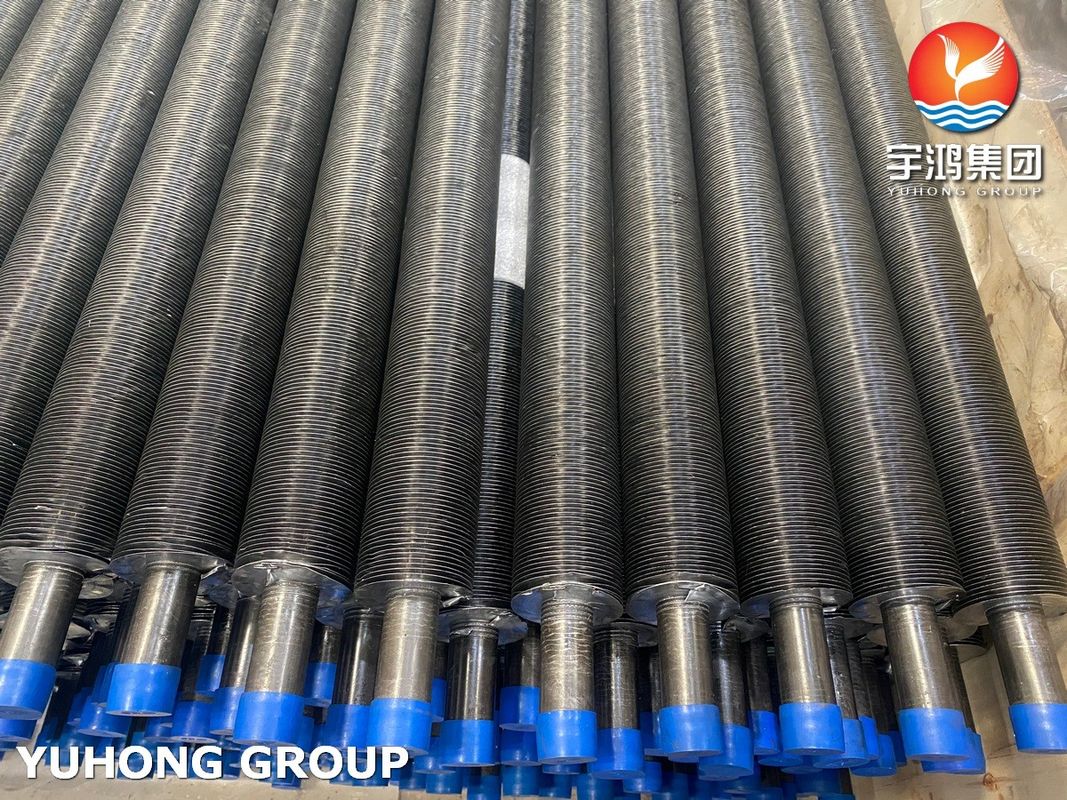

Embedded G Finned Tubes

Embedded fin tubes, also known as integral fin tubes, are heat exchanger components where fins are mechanically embedded or bonded into grooves on the outer surface of the base tube. This creates a strong mechanical bond between the fins and the tube, enhancing heat transfer efficiency.

Processing technology: machining grooves into the outer surface of the base tube, then inserted fins into these grooves.

Base tubes are usually made of materials like carbon steel, stainless steel, or copper alloys. Fins can be made from aluminum, copper, or other high-conductivity materials to improve heat transfer.
Application:power generation, chemical processing, HVAC (Heating, Ventilation, and Air Conditioning), and refrigeration.

Advantages

1.Enhanced Heat Transfer

2.Durability

3.Versatility

However, the manufacturing process can be more expensive compared to other types of fin tubes. And the process of embedding fins requires precise machining and assembly, which can be complex and time-consuming.
