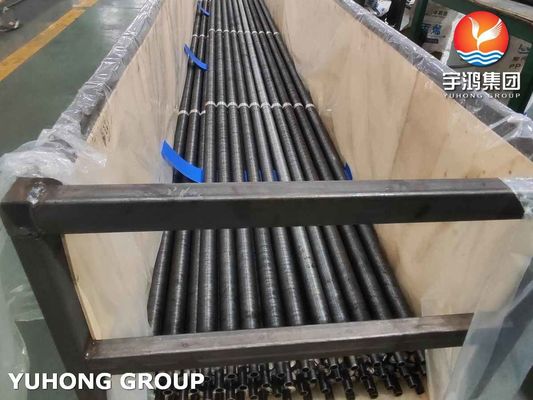

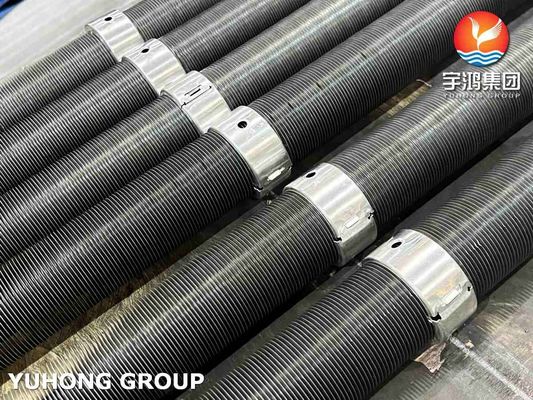

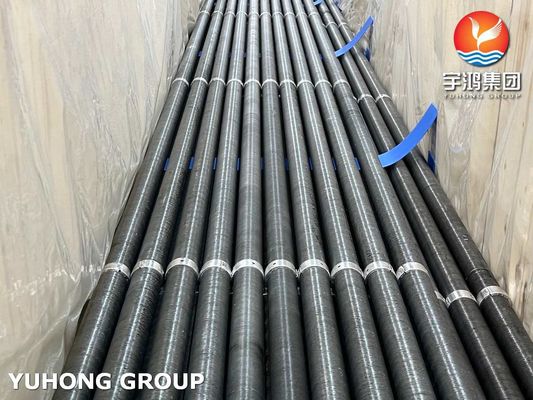

Name: ASTM A179 Carbon Steel Embedded Fin Tube With Al1060 Fin For HVAC System
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: ASTM A179
Price: 10000.00 USD
Availability: InStock

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material:

ASTM A179

Fin Material:

Al1060, Al1100

Fin Type:

Embedded Type

Application:

Air Cooler, Refrigeration System

Fin Height:

15.875mm

Fin Thickness:

0.4MM

Highlight:

Al1060 Embedded Fin Tube

HVAC System Embedded Fin Tube

ASTM A179 Embedded Fin Tube

Product Description

ASTM A179 Carbon Steel Embedded Fin Tube with AL1060 Fin Material for HVAC System Applications

Key Features:

Base Tube Material: ASTM A179 Carbon Steel, offering excellent strength, durability, and heat transfer properties, commonly used in HVAC systems due to its affordability and reliability.
Fin Material: AL1060 Aluminum, known for its exceptional thermal conductivity, lightweight, and resistance to corrosion, making it ideal for high-efficiency heat transfer in HVAC systems.
Fin Type: Embedded Fin, which is integrally bonded to the base tube to create a highly effective heat exchange surface, improving overall system performance.
Application: Designed for use in HVAC systems, particularly in heat exchangers, cooling coils, and air handling units to enhance air conditioning and ventilation efficiency.

Technical Specifications:

Property	Base Tube (ASTM A179 Carbon Steel)	Fin Material (AL1060 Aluminum)
Outer Diameter (OD)	15.88 mm - 50.8 mm	Customizable based on design
Wall Thickness	1.0 mm - 3.0 mm	-
Fin Thickness	-	0.3 mm - 1.5 mm
Fin Height	-	10 mm - 30 mm
Fin Attachment	Embedded (integral bonding)	-

Chemical Composition:

Element	ASTM A179 Carbon Steel (Base Tube)	AL1060 Aluminum (Fin Material)
Carbon (C)	≤ 0.06%	≤ 0.03%
Manganese (Mn)	0.30% - 0.90%	≤ 0.03%
Phosphorus (P)	≤ 0.035%	-
Sulfur (S)	≤ 0.035%	-
Chromium (Cr)	≤ 0.30%	-
Nickel (Ni)	≤ 0.25%	-
Aluminum (Al)	-	≥ 99.0%

Mechanical Properties:

Property	ASTM A179 Carbon Steel (Base Tube)	AL1060 Aluminum (Fin Material)
Tensile Strength	335 - 485 MPa	70 - 110 MPa
Yield Strength	≥ 205 MPa	30 - 55 MPa
Elongation	≥ 30%	≥ 20%

Advantages:

Improved Heat Transfer: The embedded fin design significantly increases the heat exchange surface area, enhancing the cooling or heating performance of HVAC systems.
Corrosion Resistance: AL1060 aluminum provides strong resistance to corrosion, ensuring that the fin tube remains durable even in humid or aggressive environments.
Cost-Effective: The combination of ASTM A179 carbon steel and AL1060 aluminum offers a budget-friendly solution without compromising on performance, making it a popular choice for HVAC systems.
Long-Term Durability: Both the carbon steel base tube and aluminum fins provide excellent strength and longevity, even under extended use and varying environmental conditions.

Applications:

HVAC Systems: Used in air conditioning units, cooling coils, and ventilation systems to enhance heat exchange and improve energy efficiency.
Heat Exchangers: Widely used in HVAC heat exchangers for cooling or heating air, water, or other fluids.
Cooling Coils: For cooling applications in both residential and commercial buildings, improving airflow and temperature control.
Air Handling Units: Commonly found in air handling units (AHUs) for managing air distribution and temperature regulation.

ASTM A179 Carbon Steel Embedded Fin Tube With Al1060 Fin For HVAC System 0
