ASTM A106 Gr B Studded Tubes For Furnaces In Corrosive Environment

Brand Name:	Yuhong
Model Number:	ASTM A106 Gr. B
MOQ:	Depend the size of finned tubes
Price:	Negotiable
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Type:

Studded Tubes

Standard:

ASTM A106

Material:

Gr. B Base Tubes And CS Fins

O.D.:

Generally Greater Than 100mm

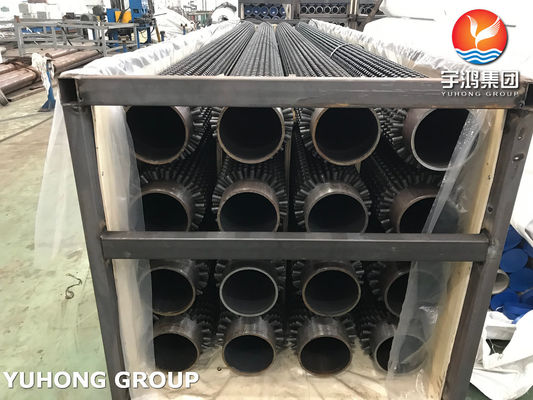

Packing:

Ply-wooden Case With Iron Frame

For Large Equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, Etc

Supply Ability:

1000 tons/month

Highlight:

Furnaces Studded Fin Tubes

Corrosive Environment Studded Fin Tubes

ASTM A106 Gr B Studded Fin Tubes

Product Description

ASTM A106 Gr B Studded Tubes For Furnaces In Corrosive Environment

Detailes of Base Tubes

ASTM A106 This speciﬁcation covers seamless carbon steel pipe for high-temperature service in NPS 1 ⁄ 8 to NPS 48 [DN 6 to DN 1200] inclusive, with nominal (average) wall thickness as given in ASME B36.10M.

Chemical Composition (%)

Grade	C	Mn	P	S	Si	Cr	Cu	Mo	Ni	V
Gr.B	0.30	0.29-1.06	0.035	0.035	0.10	0.40	0.40	0.15	0.40	0.08

Mechanical Properties

Grade	Tensile Strength,min	Yield Strength (0.2%Offset,min)
Gr. B	60ksi (415 MPa)	35ksi (240 MPa)

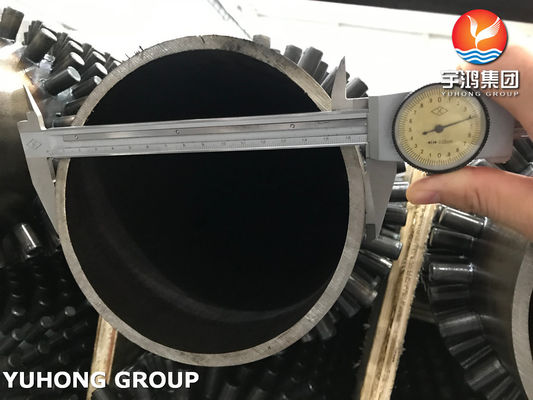

ASTM A106 Gr B Studded Tubes For Furnaces In Corrosive Environment 0

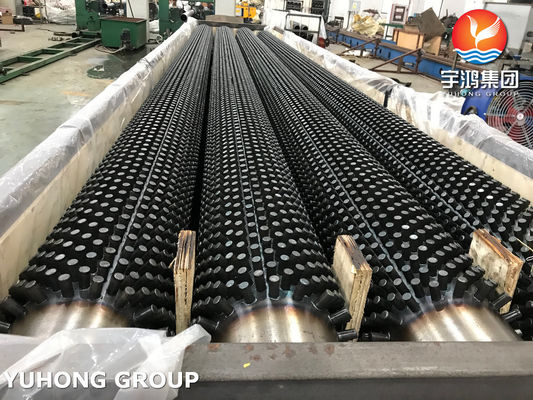

Studded Tubes

The nail head tube ( studded fin tube) is also called nail like ribbed tube. In petrochemical industry, nail head pipe is widely used. Especially in the convection chamber of the tubular furnace, in order to enhance the heat transfer effect outside the tube, the heat transfer element often adopts the nail head tube.

Material: Typically constructed from materials such as carbon steel, stainless steel, alloy or copper, providing durability and resistance to corrosion.

Advantages of Studded Tubes

*Corrosion resistance, wear resistance, low contact thermal resistance, high stability.

*The studs disrupt fluid flow, leading to better mixing and improved thermal performance.

*The studded design significantly improves heat exchange efficiency compared to smooth tubes.

*The robust construction makes them suitable for harsh operating conditions, including high temperatures and pressures.

*With a versatile application, suitable for a wide range of industries, including oil and gas, chemical processing, and power generation.

Application

Cooling systems

Common in cooling towers, condensers, and evaporators, where efficient heat dissipation is essential.

Fired Heaters

Employed in fired heaters and other thermal process equipment to enhance heat transfer efficiency.

Marine Applications

Used in ship cooling systems and other marine heat exchangers where robust performance is required.

Heat exchangers, boilers, furnaces and refineries

Widely used in industrial heat exchangers for power generation, petrochemical processes, and HVAC systems.

Specifications

Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1~5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6~10	<17	0.2-0.4
	Low fin tube / T-type fin tube	10-38	0.6~2	<1.6	~0.3
	Bamboo tube / corrugated tube	16-51	8.0~30	<2.5	~0.3
Wound	L / KL / LL type fin tube	16-63	2.1~5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
	H/HH type fin tube	25-63	8~30	<200	1.5-3.5
	Studed fin tube	25-219	8~30	5~35	φ5-20

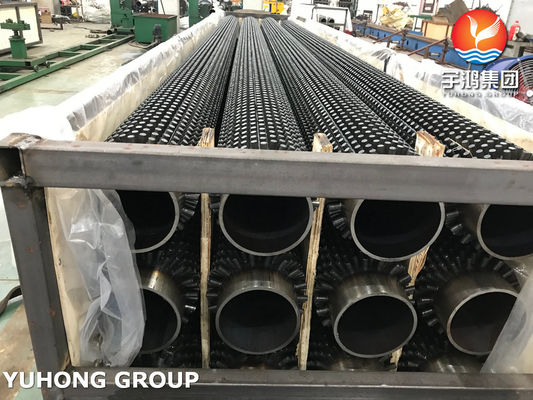

ASTM A106 Gr B Studded Tubes For Furnaces In Corrosive Environment 1
