U Bend HFW Fin Tubes ASTM A106 Gr B Carbon Steel Tubos Aletados For Economizers

Brand Name:	Yuhong
Model Number:	ASTM A106 Gr. B
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product:

Fin Tubes

Type:

High Frequency Welding Fin Tubes

Standard:

ASTM A106

Material:

Gr. B Base Pipes And CS Fins

Length:

According To Clients' Need

Size And Details:

According To Clients' Need

Heat Exchanger / Boiler / Furnaces / Economizers / Condensers / Evaporators, Etc

Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

U Bend HFW Fin Tubes

Economizers U Bend HFW Fin Tubes

Product Description

U Bend HFW Fin Tubes ASTM A106 Gr. B Carbon Steel Tubos Aletados For Economizers

U bend tubes usually used to exchange heat in process fluids in large radiators.The fluid is pumped out through a U-Junction, and then flows back along a pipe parallel to the inflow line.High frequency welding fin tubes are specialized tubes that are manufactured using a high frequency welding process. This technique involves using high-frequency electrical currents to heat the edges of the metal, allowing them to be fused together. U bend fin tube is bent on the basis of the straight forming of the fin tube.What's more, there is another way to make it, consisting of 180° U bend elbows and 2 straight finished finned tubes, fused together by welding.

The general materials of base tubes and of fins about the HF welding finned tube are carbon steel, alloy, stainless steel, etc.

U Bend HFW Fin Tubes ASTM A106 Gr B Carbon Steel Tubos Aletados For Economizers 0

Detailes of Base Tubes

ASTM A106 This speciﬁcation covers seamless carbon steel pipe for high-temperature service (Note 1) in NPS 1 ⁄ 8 to NPS 48 [DN 6 to DN 1200] (Note 2) inclusive, with nominal (average) wall thickness as given in ASME B36.10M.

Chemical Composition (%)

Grade	C	Mn	P	S	Si	Cr	Cu	Mo	Ni	V
Gr. B	0.30	0.29-1.06	0.035	0.035	0.10	0.40	0.40	0.15	0.40	0.08

Mechanical Properties

Grade	Tensile Strength,min	Yield Strength (0.2%Offset,min)
Gr.B	60ksi (415 MPa)	35ksi (240 MPa)

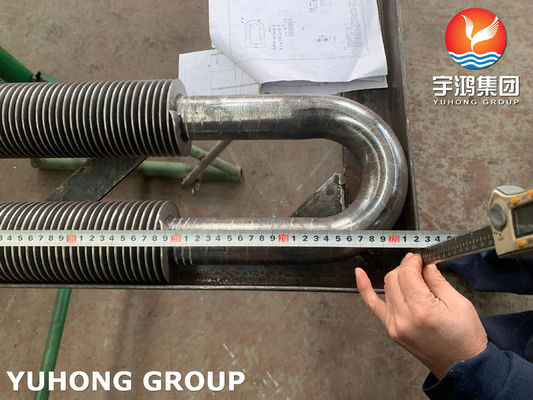

U Bend HFW Fin Tubes ASTM A106 Gr B Carbon Steel Tubos Aletados For Economizers 1

Advantages

Due to the high welding speed and strong self cooling effect, the heat affected zone is small and oxidation is not easy to occur. Therefore, the microstructure and properties of the weld are very good.

The heat exchange area is large, reduce heat transfer and metal flow;reduce the installation space of the required heat transfer surface and at the same time, it has high reliability.

Corrosion resistance, wear resistance, low contact thermal resistance, high stability, anti ash ability.

The pressure drop on the tube side is reduced and the operation cost is reduced;he stiffness and seismic performance of steel pipe are improved.

Application

Economizers

Furnaces

Heater of Driers

Combustion Heater

Condensers

Evaporators

Steam Coils

Heat Exchanger

Waste Heat Recovery

Air Coolers / Oil Coolers / Hydrogen Coolers / Generator Coolers,etc.

Specifications For Various Types Of Finned Tubes

Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1~5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6~10	<17	0.2-0.4
	Low fin tube / T-type fin tube	10-38	0.6~2	<1.6	~0.3
	Bamboo tube / corrugated tube	16-51	8.0~30	<2.5	~0.3
Wound	L / KL / LL type fin tube	16-63	2.1~5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
	H/HH type fin tube	25-63	8~30	<200	1.5-3.5
	Studed fin tube	25-219	8~30	5~35	φ5-20

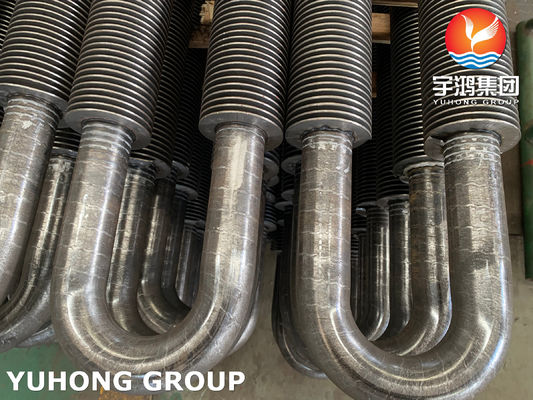

U Bend HFW Fin Tubes ASTM A106 Gr B Carbon Steel Tubos Aletados For Economizers 2
