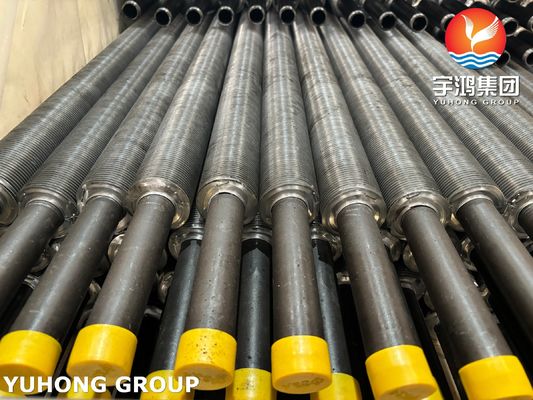

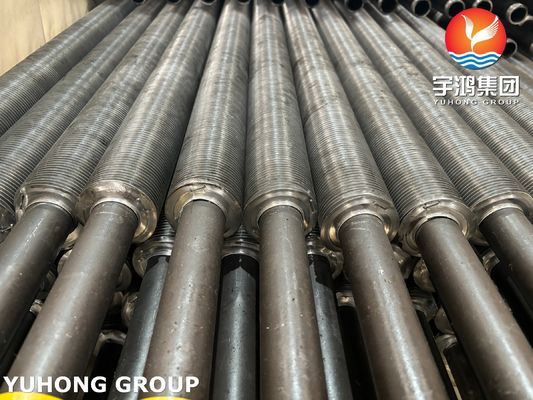

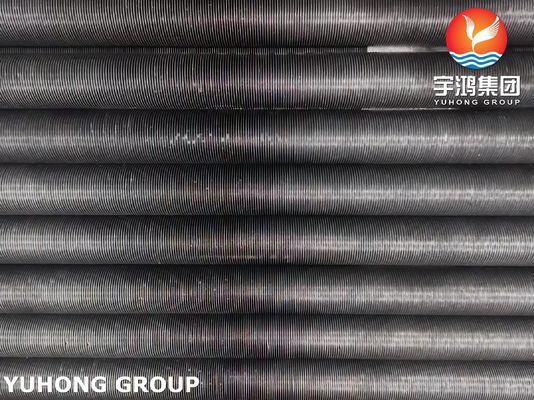

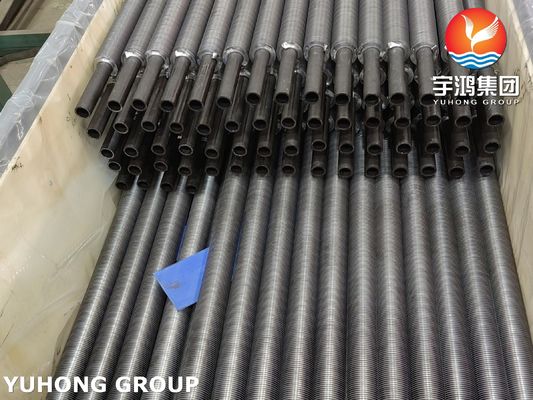

Name: L Type Wound Fin Tube ASTM A179 Carbon Steel Tube Fin Material Al1060 For HVAC
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: ASTM A179
Price: 10000.00 USD
Availability: InStock

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material:

A179

Fin Material:

Al1060, Al1100

Fin Type:

G Type, Embedded

Fin Tube Test:

HT/ET

Fin Thk:

0.4mm

FPI:

9-13

Highlight:

ASTM A179 Wound Fin Tube

HVAC Wound Fin Tube

Carbon Steel Wound Fin Tube

Product Description

Wound Fin Tube L Type ASTM A179 Carbon Steel Tube Fin Material Al1060 For HVAC

Key Features:

Base Tube Material: ASTM A179 Carbon Steel, offering excellent thermal conductivity and mechanical properties.
Fin Material: AL1060 Aluminum, known for its high thermal conductivity, lightweight, and corrosion resistance.
Fin Type: L-Type Wound Fins, mechanically wound for strong attachment and optimized heat transfer.
Application: Designed for HVAC systems, ensuring efficient heat exchange in air conditioning and ventilation applications.

Technical Specifications:

Property	Base Tube (ASTM A179)	Fin (AL1060)
Outer Diameter (OD)	15.88 mm - 50.8 mm	Customizable based on design
Wall Thickness	1.5 mm - 4.0 mm	-
Fin Thickness	-	0.3 mm - 0.5 mm
Fin Pitch	-	3 - 5 fins per inch
Fin Attachment	Mechanically wound (L-type)

Chemical Composition:

Element	ASTM A179 (Base Tube)	AL1060 (Fin)
Carbon (C)	0.06 - 0.18%	≤ 0.03%
Manganese (Mn)	0.27 - 0.63%	≤ 0.03%
Phosphorus (P)	≤ 0.035%	-
Sulfur (S)	≤ 0.035%	-
Aluminum (Al)	-	≥ 99.6%

Mechanical Properties:

Property	ASTM A179 (Base Tube)	AL1060 (Fin)
Tensile Strength	≥ 325 MPa	60 - 100 MPa
Yield Strength	≥ 180 MPa	30 - 50 MPa
Elongation	≥ 35%	≥ 25%

Advantages:

High Thermal Efficiency: AL1060 aluminum fins ensure excellent heat dissipation and energy transfer.
Corrosion Resistance: AL1060 fins resist oxidation in humid HVAC environments.
Durable Design: L-type wound fins provide robust mechanical attachment and durability under thermal cycling.
Lightweight: Aluminum fins reduce overall weight, improving installation and operational efficiency.

Applications:

HVAC Systems: Heat exchangers for air conditioning and ventilation.
Refrigeration Units: Enhancing thermal performance in cooling systems.
Air Handling Units: Optimizing heat exchange for industrial and commercial applications.
