ASTM A213 T5 Tube With Aluminum AL1060 Embedded G Type Fin Tubes For Heater

Brand Name:	Yuhong
Model Number:	ASTM A213
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product:

Fin Tubes Or Finned Tube

Type:

Embedded G Type

Standard:

ASTM A213

Material:

Base Tubes A213 And T5 Fins

Length:

According To Clients' Need

Size And Details:

According To Clients' Need

Application:

Air Cooler / Heat Exchanger / Heater / Economizaer, Etc.

Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

AL1060 Embedded G Fin Tubes

Heater Embedded G Fin Tubes

Product Description

ASTM A213 T5 Tube With Aluminum AL1060 Embedded G Type Fin Tubes For Heater

Detailes of ASTM T5 Base Tubes ( Generally with min. wall thickness )

ASTM A213 This speciﬁcation covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, designated Grades T5, TP304, etc.

General Requirements: Product furnished to thisspeciﬁcation shall conform to the requirements of Speciﬁcation A 1016/A 1016M, including any supplementary requirements that are indicated in the purchase order.

Manufacture: Tubes shall be made by the seamless process and shall be either hot ﬁnished or cold ﬁnished, as speciﬁed.

Heat Treatment: Full or isothermal anneal normalize and temper of 1250°F [675°C] or higher.

Surface Condition: Ferritic alloy cold-ﬁnished steel tubes shall be free of scale and suitable for inspection. A slight amount of oxidation is not considered scale. Ferritic alloy hot-ﬁnished steel tubes shall be free of loose scale and suitable for inspection.

Keywords: Alloy steel tubes, Condenser tubes, Heat exchanger tubes, High-temperature applications, Seamless tubes, Boiler tubes, etc.

Chemical Composition (%) max

Grade	C	Mn	P	S	Si	Cr	Mo
T5	0.15	0.30-0.60	0.025	0.025	0.50	4.00-6.00	0.45-0.65

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min	Hardness max
T5	60ksi (415 MPa)	30ksi (205 MPa)	30%	163HB/170HV, 85HRB

Test Methods Referreds

Flattening Test, Flaring Test, Flange Test, Hardness Test, Hydrostatic Test, Nondestructive Electric Test

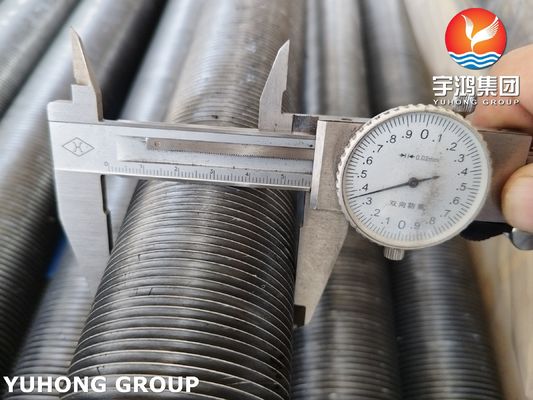

ASTM A213 T5 Tube With Aluminum AL1060 Embedded G Type Fin Tubes For Heater 0

Embedded G Finned Tubes

Embedded G fin tubes, are mechanically embedded into a groove that is plowed into the outer diameter of the base tube. This groove is typically about 0.4 mm deep.The fin strip is tension-wound and placed into the groove.

Base tube material: carbon steel, alloy steel, stainless steel, duplex steel, copper tube;
Fin: Aluminum 1060, aluminum 1100, T2 copper;
Application: air cooler, heat exchanger, heater, radiator economizer (Suitable for high temperature environment, limit temperature 350℃).

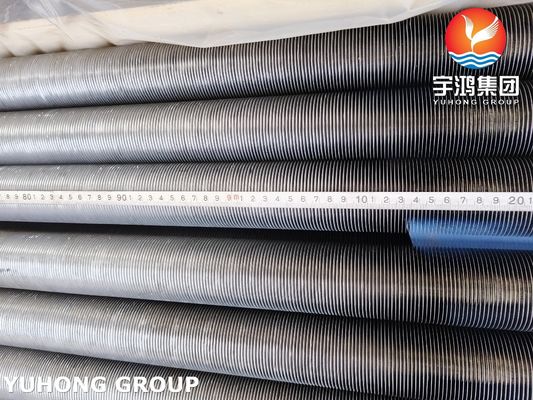

ASTM A213 T5 Tube With Aluminum AL1060 Embedded G Type Fin Tubes For Heater 1

Specifications For Various Types Of Finned Tubes

Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1~5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6~10	<17	0.2-0.4
	Low fin tube / T-type fin tube	10-38	0.6~2	<1.6	~0.3
	Bamboo tube / corrugated tube	16-51	8.0~30	<2.5	~0.3
Wound	L / KL / LL fin type	16-63	2.1~5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
	H / HH type fin tube	25-63	8~30	<200	1.5-3.5
	Studed fin tube	25-219	8~30	5~35	φ5-20

Appliction Area

Natural gas processing;

Compressor cooler

Air conditioning (Freon, ammonia, propane);

Petroleum, chemical and petrochemical industries;
Steel industry: blast furnace and converter systems;
Power generation: condensation of exhaust gas from steam turbines, condensate contact cycle cooling condensation, fossil and nuclear power plants,etc.

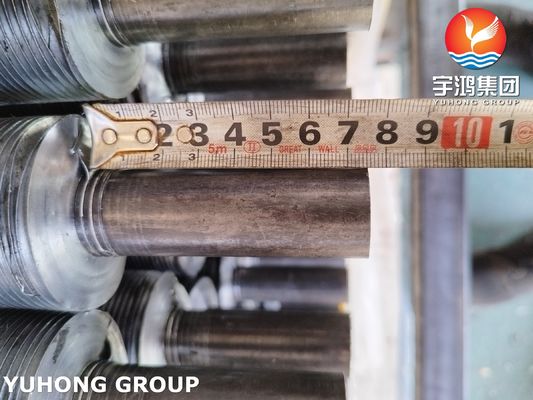

ASTM A213 T5 Tube With Aluminum AL1060 Embedded G Type Fin Tubes For Heater 2

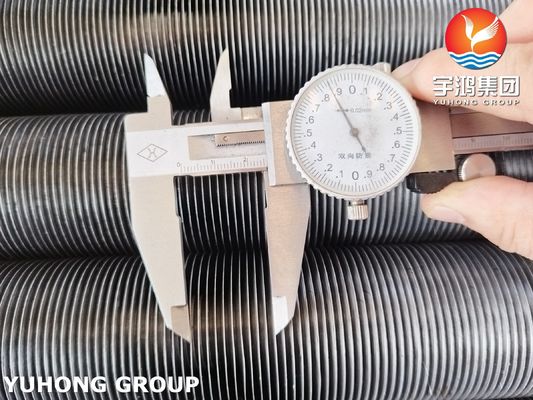

ASTM A213 T5 Tube With Aluminum AL1060 Embedded G Type Fin Tubes For Heater 3
