ASME SA179 Embedded G Type Fin Tube For Air Cooler , Condenser

Brand Name:	Yuhong
Model Number:	Embedded G Type Fin Tube
MOQ:	500 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case / Iron Case / Bundle with plastic Cap
Payment Terms:	TT, LC

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Material Grade:

SA179

Base Tube Material Standard:

ASME SA179, ASTM A179

Fin Material:

Aluminum, Carbon Steel

Max. Working Temperature:

750 °F（400 °C）

Bare Tube Diameter(MM):

16 - 63 Mm

Fin Pitch(MM):

2.1 - 5 Mm

Fin Height(MM):

<17 Mm

Fin Thick(MM):

~0.4 Mm

Supply Ability:

10000 TONS PER MONTH

Highlight:

Condenser Embedded G Fin Tube

Air Cooler Embedded G Fin Tube

ASME SA179 Embedded G Fin Tube

Product Description

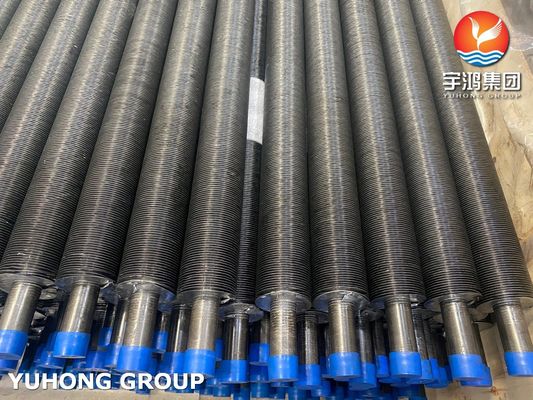

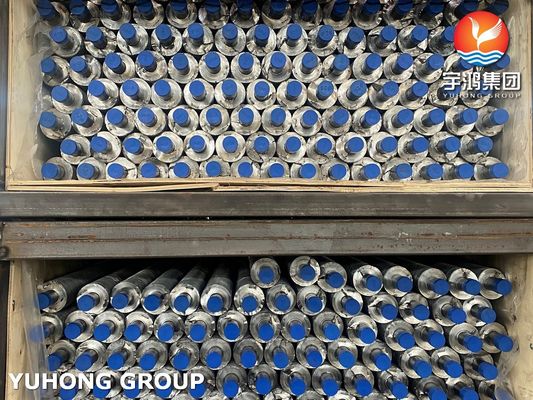

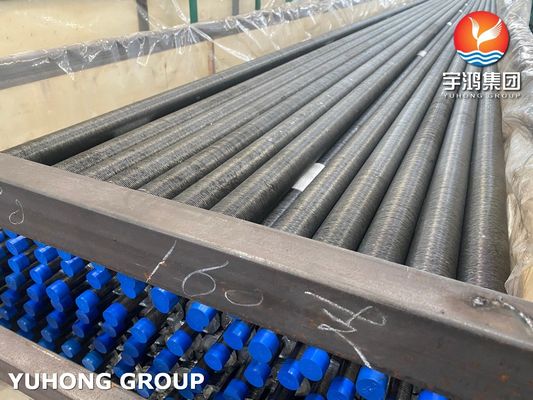

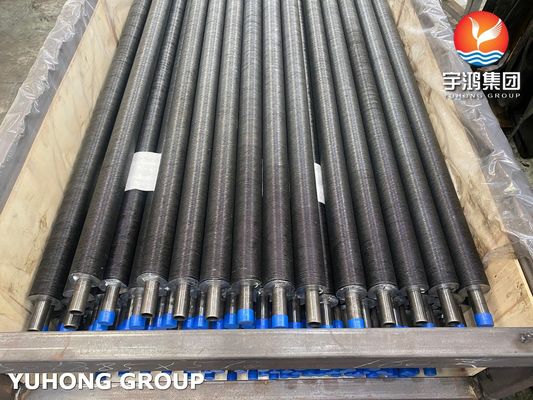

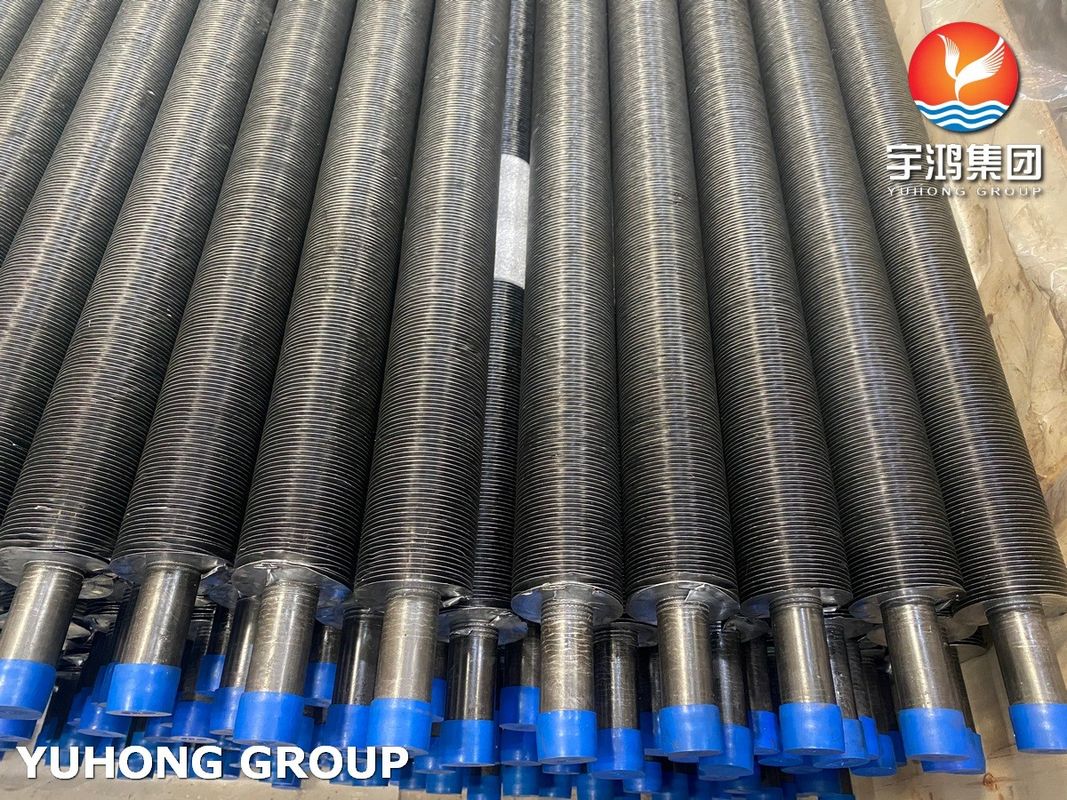

ASME SA179 Embedded G Type Fin Tube For Air Cooler , Condenser

ASME SA179 Embedded G Fin Tube is a heat transfer component designed for enhanced efficiency. The base tube is made from ASME SA179 carbon steel, known for its excellent heat transfer properties and mechanical strength.

The fin strip is wound into a machined groove on the tube surface and securely locked into place by back filling with base tube material. This offers exceptional heat transfer efficiency at higher tube metal temperature.

*Maximum Working Temperature: 750°F(400°C)

*Fin Materials: Aluminum, Copper, Carbon Steel

Chemical Composition:

Grade	C	Mn	P	S
SA179	0.06-0.18%	0.27-0.63%	0.035% max	0.035% max

Mechanical Properties:

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
SA179	≥ 180 MPa (26 ksi)	≥ 325 MPa (47 ksi)	Variable based on diameter	Typically ≤ 72 HRB

Applications:

<Power Generation>

Heat Exchangers:

Used in power plants to improve heat transfer efficiency in steam generation and cooling systems.

Enhances the overall efficiency and output of power generation facilities.

Boilers:

Integral in economizers to recover waste heat and preheat feedwater.

Reduces fuel consumption and increases system efficiency.

<Petrochemical Industry>

Refineries:

Utilized in processes where high thermal efficiency is required.

Helps in maintaining optimal temperatures for catalytic reactions.

Chemical Processing:

Ideal for heat exchangers handling high-temperature and corrosive fluids.

Ensures consistent performance and long-term durability.

<HVAC Systems>

Air Conditioning Units:

Used in condenser and evaporator coils to maximize heat exchange.

Improves energy efficiency and cooling performance.

Refrigeration Systems:

Enhances heat transfer in evaporators and condensers.

Contributes to efficient cooling and energy savings.

<Oil and Gas Industry>

Offshore Platforms:

Suitable for heat exchangers exposed to harsh marine conditions.

Provides reliability and resistance to mechanical stress.

<Natural Gas Processing>

Efficient in heat exchangers that require high thermal performance.

Helps in maintaining process efficiency and reducing energy costs.
