High Frequency Welding Fin Tube ASTM A312 TP347H with 11Cr Fin Material For Fired Heater

Brand Name:	Yuhong
Model Number:	High Frequency weld fin tube, Welding fin tube, Fin Tube, Finned Tube, Solid Fin tube, HFW fin tube
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply wooden case
Payment Terms:	TT, LC

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material:

TP347H

Standard:

ASTM A213 , ASME SA213

Fin Type:

Solid Fin Tube , HFW Fin Tube, Spiral Fin Tube, Welded Helical Solid Finned Tubes

Welding Type:

HFW , GMAW, LASER

Fin Material Grade:

Stainless Steel 304

Application:

Furnace, Fired Heater, Heater, Boiler, Radiant Tube, Coil Tube

Supply Ability:

10000 Tons/Month

Highlight:

High Frequency Welding Fin Tube

ASTM A312 Welding Fin Tube

11Cr Fin Material Welding Fin Tube

Product Description

High Frequency Welding Fin Tube, ASTM A312 TP347H with 11Cr Fin Material , For Fired Heater Application

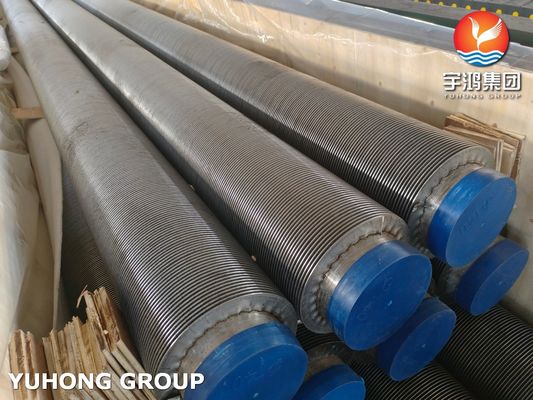

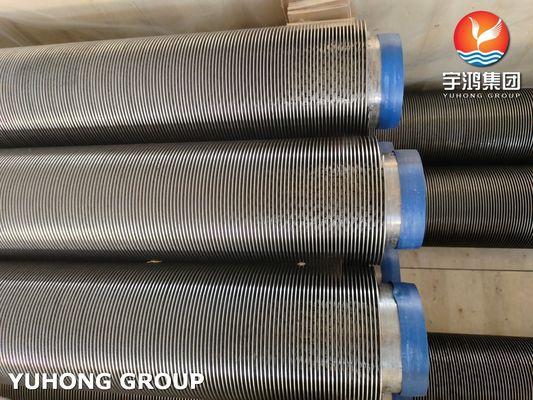

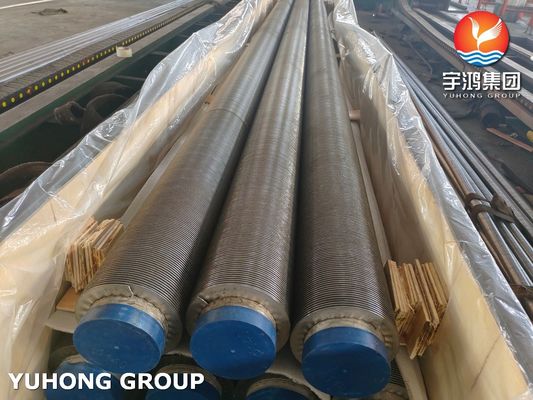

Stainless Steel 304 ASTM A312 TP347H High Frequency Welding Fin Tube is a specialized heat transfer component combining the properties of stainless steel 304 and TP347H. This design provides excellent performance in high-temperature and corrosive environments. The fins are attached using high-frequency welding, increasing the surface area for enhanced heat transfer.

304 Stainless Steel: Known for its corrosion resistance and durability.

TP347H Stainless Steel: Stabilized with niobium, offering enhanced high-temperature strength.

Chemical Composition:

Grade	Ni	Cr
Stainless Steel 304	8.0-15.0%	18.0-20.0%

Grade	Cr	Ni	Nb
TP347H	17.0-19.0%	9.0-13.0% max	Stabilizing element

Mechanical Properties:

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
TP347H	≥ 205 MPa (30 ksi)	≥ 515 MPa (75 ksi)	≥ 35% in 50 mm	Typically ≤ 90 HRB

Applications:

1. Power Generation

Boilers and Heat Exchangers: Used in power plants for efficient heat transfer. Enhances system efficiency under high-temperature conditions.
Superheaters and Reheaters: Suitable for handling high-pressure steam. Improves overall plant performance and durability.

2. Petrochemical Industry

Refineries: Ideal for processes involving high temperatures and corrosive substances. Ensures long-term reliability and efficiency.
Chemical Processing: Handles aggressive chemicals and high thermal loads. Provides consistent performance and safety.

3. Oil and Gas Industry

Offshore Platforms: Used in heat exchangers exposed to harsh marine environments. Offers excellent resistance to corrosion and thermal stress.
Gas Processing Plants: Efficient in systems requiring high thermal performance. Helps maintain process efficiency and safety.

4. Industrial Heating

Furnaces and Kilns: Withstands severe thermal cycling and high-temperature operations. Provides long-lasting support and efficiency.
