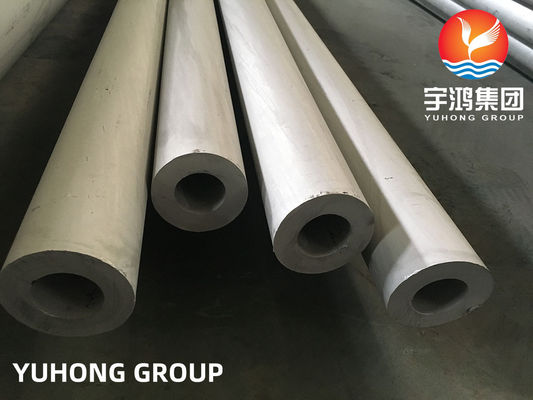

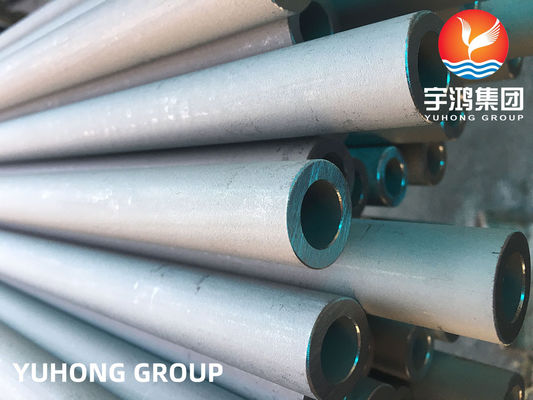

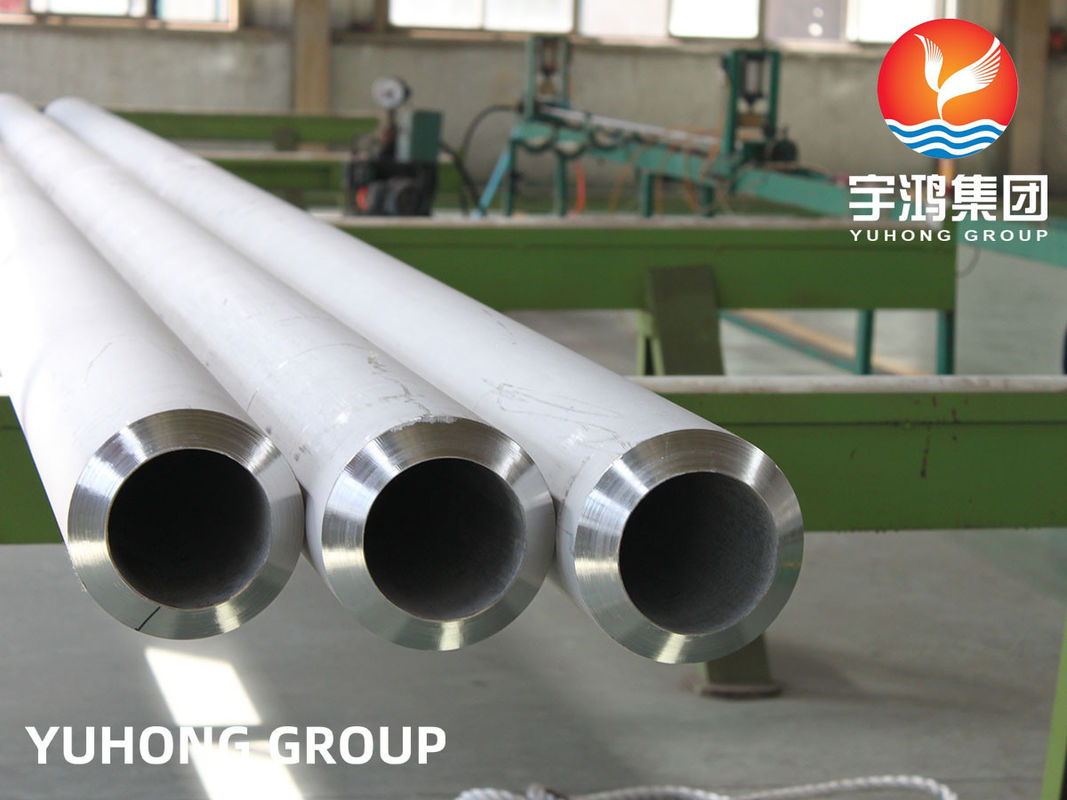

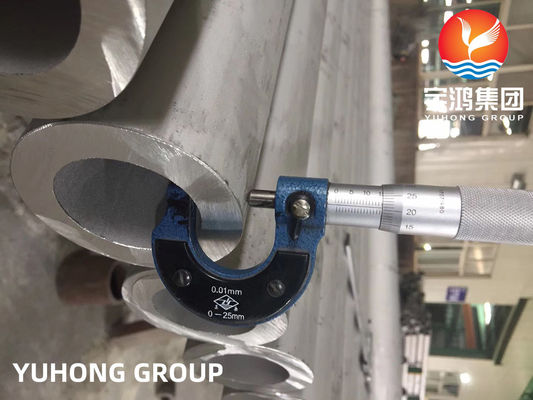

Stainless Steel Boiler Tube, ASME SA213 TP316H, Super Heater Boiler Application

Brand Name:	Yuhong
Model Number:	ASTM A213
MOQ:	1PC
Price:	Negotiable
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material Grade:

TP316, TP316L , TP316H , 1.4401, 1.4404

Material Standard:

ASTM A213, ASME SA213, JIS G3459, EN10216-5, GOST 9941-81

ET, UT, HT, PT, PMI

Size OD:

31.75 ~ 165.2mm

Size Thickness:

2~20mm

Size Length:

Max.: 34m/pc

Supply Ability:

10000 tons/month

Highlight:

31.75mm Stainless Steel Boiler Tube

165.2mm Stainless Steel Boiler Tube

high Tensile Super Heater Boiler tube

Product Description

Stainless Steel Boiler Tube, ASME SA213 TP316H, Super Heater Boiler Application

ASME SA-213 / SA-213M: Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.

Below ASME SA213, it also contain many special grade: TP304H, TP309H, TP309HCb, TP310H, TP310HCb, TP310HCbN, TP316H, TP321H, TP347H, TP347HFG (fine grained) and TP348H are modifications of Grades TP304, TP309S, TP309Cb, TP310S, TP310Cb, TP316, TP321, TP347, and TP348, and are intended for high-temperature service, such as for superheaters and reheaters.

Yuhong Group ASME SA213 TP316H Stainless Steel Boiler Tube datasheet :

Out Side Diameter: 31.75mm , 38.1mm , 44.45mm , 50.8mm , 57.15mm , 63.5mm, 76.2mm, .... 165.2mm ;
Wall thickness: 2mm to 20mm
Length: Max.: 34m/pc

All tubes of ASME SA213 match Grain Size <7. (ASTM E112 );

All tubes with 100% Eddy Current Test (ASTM E426);

All tubes with 100% Hydrostatic Test ( ASTM A1016 - 7Mpa/5s );

Tests of TP316L,TP316H Stainless Steel Boiler Tube
1.Chemical Analysis
2.Mechanical Properties
2.1Tensile Requirement
2.2Hardness Requirement
2.3Flattening Test
2.4Flaring Test
3.Hydrostatic Test or Nondestructive Electric Test

Chemical Composition of ASME SA213 TP316L , TP316H :

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	Niobium	Other
TP316L	min.	-	2.0	1.0	0.045	0.03	16	2~3	10	/	/
	max	0.035					18		14		/
TP316H	min.	0.04	2.0	1.0	0.045	0.03	16	2~3	10	/	/
	max	0.1					18		14		/

Mechanical Properties of ASME SA213 TP316L, TP316H:

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HRB) max	Brinell (HBW) max
TP316L	485	175	35	90	192
TP316H	515	205	35	90	192
TP316H also has a requirement for a grain size of ASTM No 7 or coarser.

ASME SA213 TP316H Stainless Steel Boiler Tube application:

1. Food preparation equipment;
2. Laboratory benches & equipment;
3. Coastal architectural panelling, railings & trim;
4. Power Plant Boiler;
5. Chemical containers, including for transport；
6. Heat Exchanger；
7. Oil and Gas；
8. Petrochemical；
9. Super Heater parts；
10. Furnace.
