Nickel Alloy ASME SB163 N08825 Extruded Fin Tubes For Air Coolers

Brand Name:	Yuhong
Model Number:	Extruded Fin Tubes
MOQ:	Depend
Price:	Negotiable
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Product:

Fin Tubes Or Finned Tube

Finned Tube Type:

Extruded Finned Tubes

Base Tubes Standard:

ASME SB163

Base Tubes Material:

Base Tubes N08825 Seamless Nickel Alloy

Extruded Finned Tubes Length:

According To Clients' Need

Extruded Finned Tubes Size And Details:

According To Clients' Need

Extruded Finned Tubes Use:

Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air Cooler, Etc

Extruded Finned Tubes Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Product Description

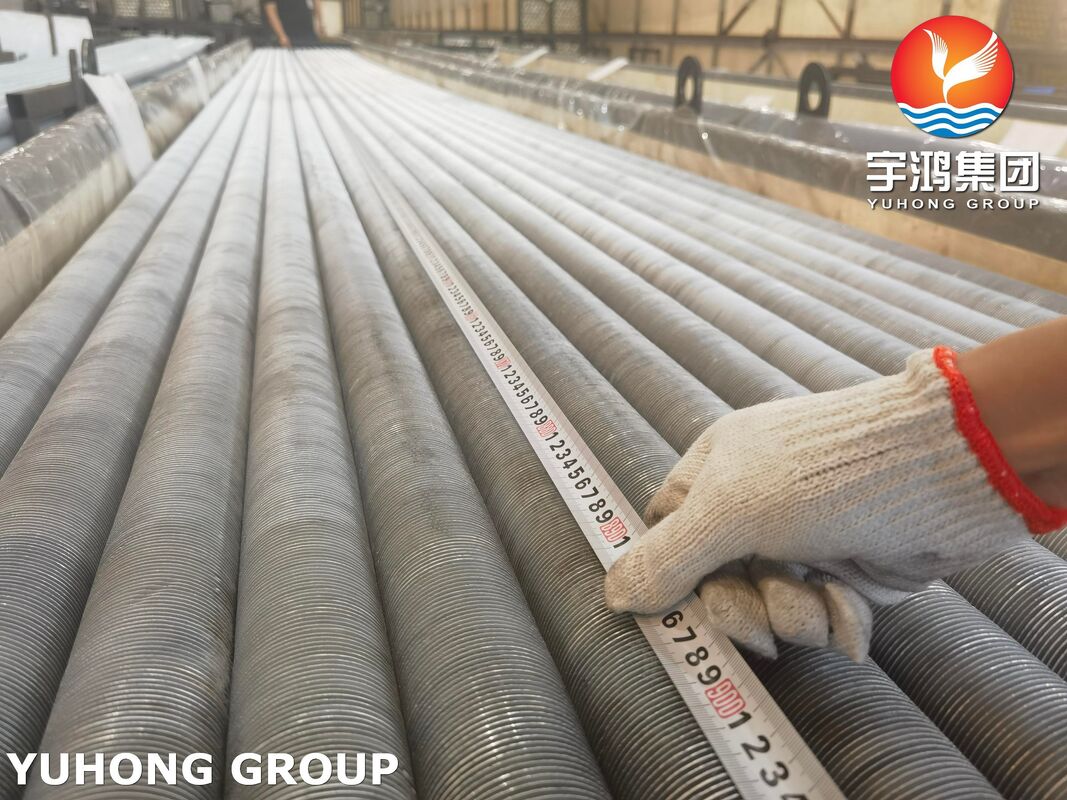

Nickel Alloy ASME SB163 N08825 Extruded Fin Tubes For Air Coolers

Base Tube Destails

ASME SB 163 This specification covers seamless tubes of nickel and nickel alloys,for use in condenser and heat-exchanger service.High-integrity nickel-alloy seamless base tube with integrally extruded fins, engineered for corrosive process streams and high-efficiency dry air cooling in refinery, petrochemical, and offshore service.

Chemical Composition (%) max

Ni	Cu	Mo	Fe	Mn	C	Si	S	Cr	Al	Ti
38.0-46.0	1.5-3.0	2.5-3.5	22.0min	1.0	0.05max	0.5	0.03	19.5-23.5	0.2max	0.6-1.2

Mechanical Properties

Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
85ksi (586 MPa)	35ksi (241 MPa)	30%

ASME SB163 N08825 extruded fin tubes adopt Incoloy 825 seamless base tube, which provides excellent corrosion resistance for aggressive process fluid. Extruded aluminum fins greatly increase heat exchange area for air cooling. Metallurgical bonding ensures low thermal contact resistance and good anti‑vibration performance. These tubes act as pressure‑containing barrier and heat transfer element for air coolers in petrochemical and refinery service.

Nickel Alloy ASME SB163 N08825 Extruded Fin Tubes For Air Coolers

Advantages

Composite finned tubes have the following characteristics:

Highly cost effective;

The fin has good rigidity and is not easy to deform.

High heat transfer performance, small contact thermal resistance;

The contact area between the fin and the pipe is large, the fit is tight and reliable;

Good corrosion resistance, stable long-term use performance;

Nickel Alloy ASME SB163 N08825 Extruded Fin Tubes For Air Coolers
