Extruded Fin Tube , ASTM A249 TP304 Stainless Steel Extruded Fin Tube , Air Cooler , Cooling Tower

Brand Name:	Yuhong
Model Number:	Extruded Fin tube , Aluminum Extruded Fin tube
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case + Iron Frame
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Base Tube Material Grade:

TP304

Base Tube Material Standard:

ASTM A249, ASME SA249

Type:

Straight Tube , U Bend Tube , Coil Tube

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

Extruded Fin Tube , Aluminum Extruded Fin Tube , Fin Tube

Fin Material:

Aluminum , Copper , Stainless Steel , Carbon Steel

Supply Ability:

10000 Tons/Month

Highlight:

ASTM A249 Extruded Fin Tube

Extruded Fin Tube TP304

ASME Stainless Steel Tube

Product Description

Extruded Fin Tube , ASTM A249 TP304 Stainless Steel Extruded Fin Tube , Air Cooler , Cooling Tower

ASTM A249 specification covers seriously cold worked welded tubes and nominal wall thickness welded tubes manufactured using austenitic stainless steel. ASTM A249 is intended for use in heat exchangers, boilers, condensers, and super-heaters. This material is also furnished in a heat-treated condition as per with the needed solution temperature and quenching techniques.

ASTM A249 TP304 Extruded Fin Tube is known for its excellent corrosion resistance and high-temperature strength. ASTM A213 is a standard specification for seamless ferritic and austenitic alloy-steel boilers, superheaters, and heat-exchanger tubes. TP304 is a grade of stainless steel which is often used in high-temperature applications.

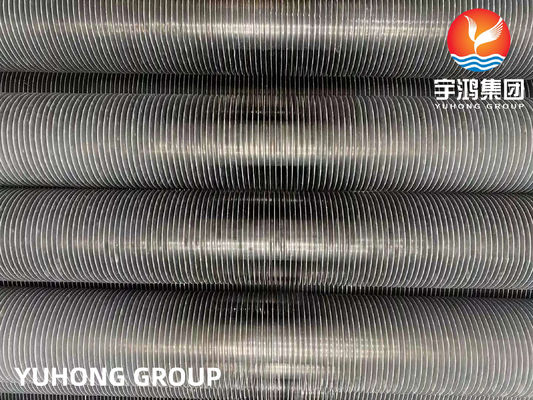

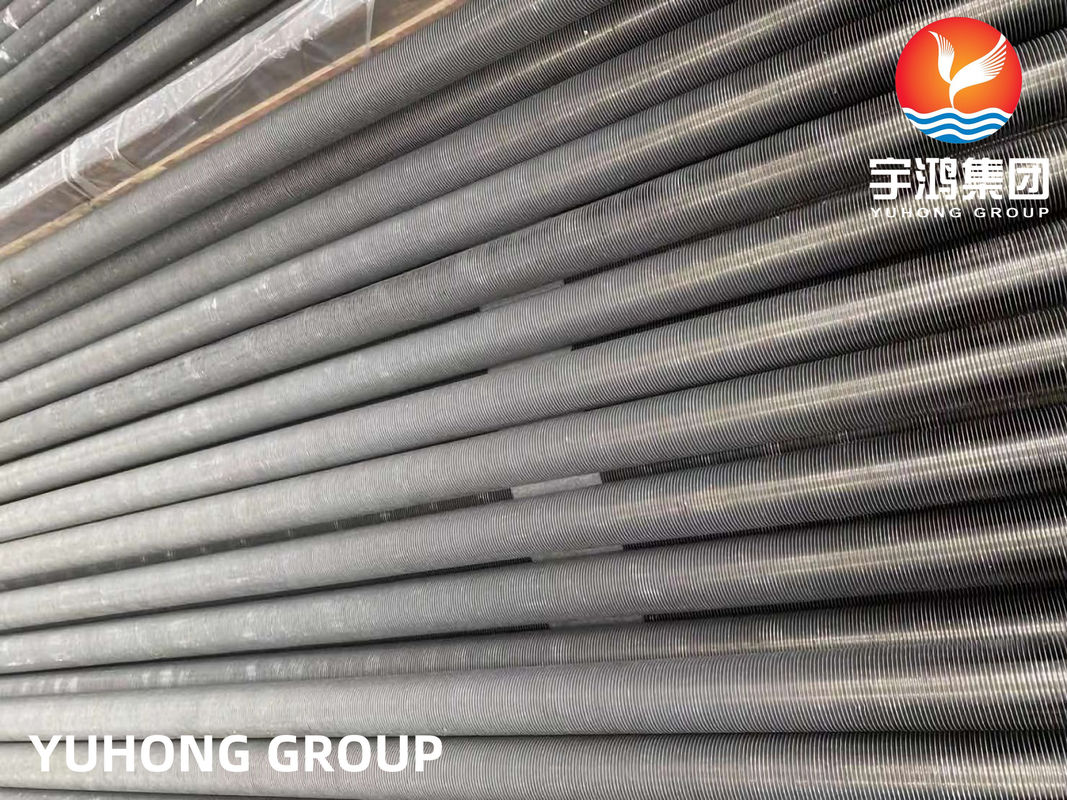

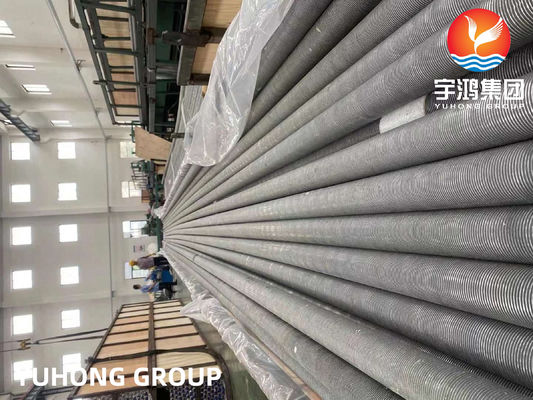

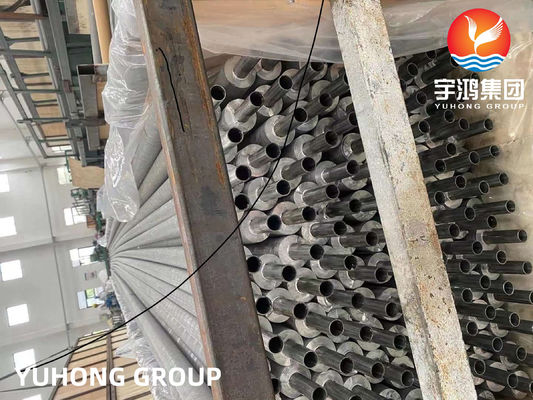

Extruded Aluminum Fin Tubes, also known as “Integral Fin Tubes”. Extruded Aluminum fin tubes are manufactured by rolling process on base tubes. During finning operation, the inside diameter of the tubes is reduced and helical fins are rolled on the tube wall. The pressure required to extrude fins from the aluminum sleeve creates an excellent “pressure bond” between the two materials.

Equivalent Material:

Grade	UNS No	Old British		Euronorm		SS	JIS
		BS	En	No	Name
TP304	S30400	304S31	58E	1.4301	X5CrNi18-10	2332	SUS 304

Chemical Composition:

C	Si	Mn	Cr	Ni	S	P	Fe
0.08	1	2	18 – 20	8 – 11	0.03	0.045	Bal.

Mechanical properties:

Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
			Rockwell B (HRB) max	Brinell (HB) max
515	205	40	92	201

Applications:

Heat Exchangers
Condensers
Power Plants
Steam Generators
Petrochemical Industries
Marine Applications
Refrigeration Equipments
