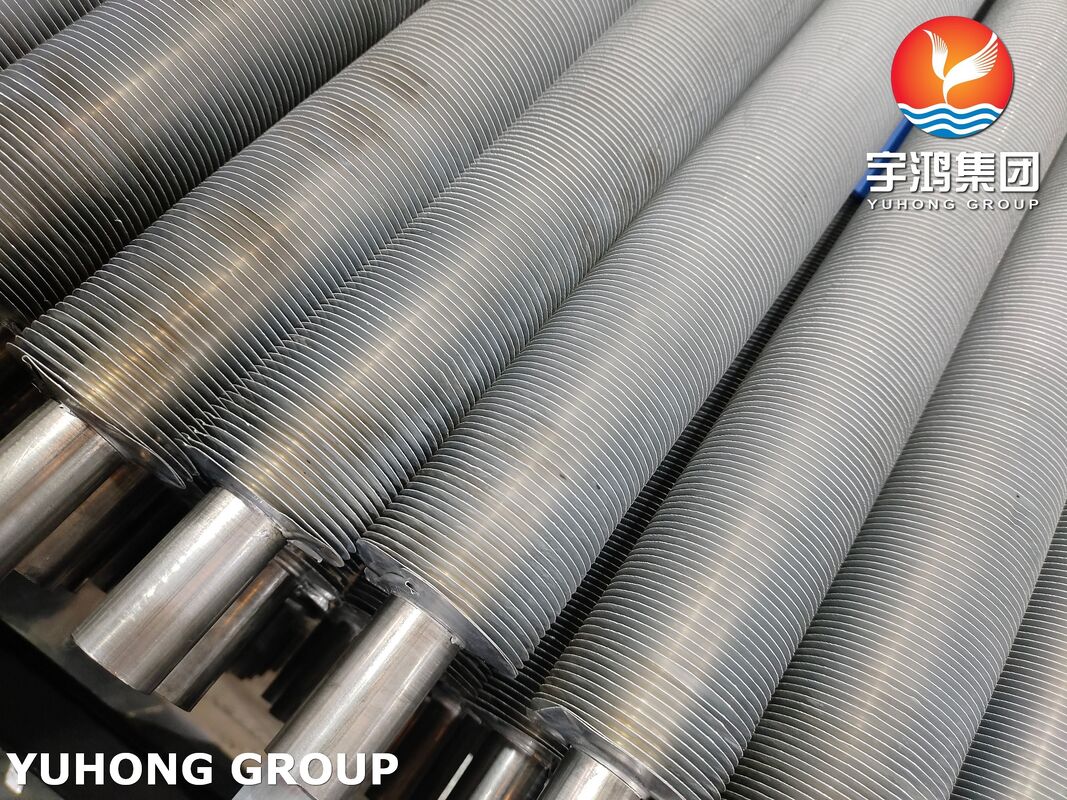

ASTM A179 Carbon Steel Extruded Fin Tube For HVAC Economizers

Brand Name:	YUHONG
Model Number:	Extruded Fin Tubes
MOQ:	Depend
Price:	Negotiable
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	T/T,L/C

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ISO 9001-2015,ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS

Fin Tubes Type:

Extruded Fin Tubes

Extruded Fin Tubes Forming:

Integral Fin Tube

Extruded Fin Tubes Material:

ASTM A179 Carbon Steel Base Tubes, Al1100 Fins

Extruded Fin Tubes Size:

By Costomers' Requirements

Extruded Fin Tubes Application:

Air-cooled Heat Exchangers & Air Coolers,Air Cooled Condensers (ACC) In Power Plants,Oil Coolers & Hydraulic System Coolers,Furnace Waste Heat Recovery Equipment,etc.

Extruded Fin Tubes Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

ASTM A179 carbon steel fin tube

extruded fin tube for HVAC

carbon steel economizer fin tube

Product Description

ASTM A179 Carbon Steel Extruded Fin Tube For HVAC Economizers

HVAC Economizers (Flue Gas/Air Heat Exchangers) are installed in the flue ducts of boilers/chillers, with A179 extruded fin tubes as the core component:cold water/fresh air flows inside the tubes, while high-temperature flue gas passes outside the tubes.Fins of fin tubes increase the outer surface area by 8–12 times, with heat transfer efficiency far exceeding bare tubes.ASTM A179 has high thermal conductivity (45–50 W/m·K), excellent pressure resistance, high ductility (suitable for extrusion process).

Chemical Composition (%) Maximum

Grade	C	Mn	P	S
A179	0.06-0.18	0.27-0.63	0.035	0.035

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
A179	47ksi (325 MPa)	26ksi (180 MPa)	35%

Some Important Advantages of A179 Extruded Fin Tubes for HVAC Economizers

Medium and Low Temperature Conditions: The temperature resistance limit of aluminum fins is approximately 260°C (500°F), perfectly matching the flue gas temperature of HVAC boilers.

A179 High Cost Performance: 50–70% lower cost than stainless steel and copper-nickel alloys.Compact Design: Smaller equipment size under the same heat transfer capacity, saving machine room space.

Applications of A179 Extruded Fin Tubes

Economizers supporting gas/oil-fired boilers

Industrial Plant HVAC: Waste heat recovery for hot water/steam boilers

District Heating/Cooling: Combined heat and power (CHP) systems

Heat Pumps and Chillers: Evaporators/condensers of flue gas heat pumps.

Ratings & Review

Overall Rating

4.3

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

33%

4 stars

67%

3 stars

2 stars

1 stars

All Reviews

K*w

Malaysia Feb 21.2026

Helpful (8)

It's hot and humid here, and our old wrap-on tubes used to rust like crazy. Switched to your extruded ones—the aluminum fin covers the steel pipe perfectly, so corrosion shouldn't be an issue.

Sajid

Pakistan Jan 12.2026

Helpful (4)

Tube ends were clean, dimensions accurate. Our fitters didn't complain about fit-up.

Kumar

India Nov 8.2025

Helpful (2)

No corrosion issues so far, though we're running below dew point carefully. Installation was straightforward—tube sheets lined up, ends clean, rolling into the header went smooth.
