ASTM A269 TP316L BA Tube Bright Annealing Tubing Stainless Steel Heat Exchanger Tube

Brand Name:	YUHONG
Model Number:	ASTM A269 TP316L Stainless Steel Seamless Tube
MOQ:	500kgs
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C,T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Product Name:

Heat Exchanger Tube

Standard:

ASTM A269， ASME SA269

Material:

TP316/316L

1/4" , 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", Etc.

Thickness:

BWG10-25

Length:

Can Custom

Plain End, Beveled End

Highlight:

ASTM A269 TP316L Stainless Steel Seamless Tube, BA Heat Exchanger Tube

Product Description

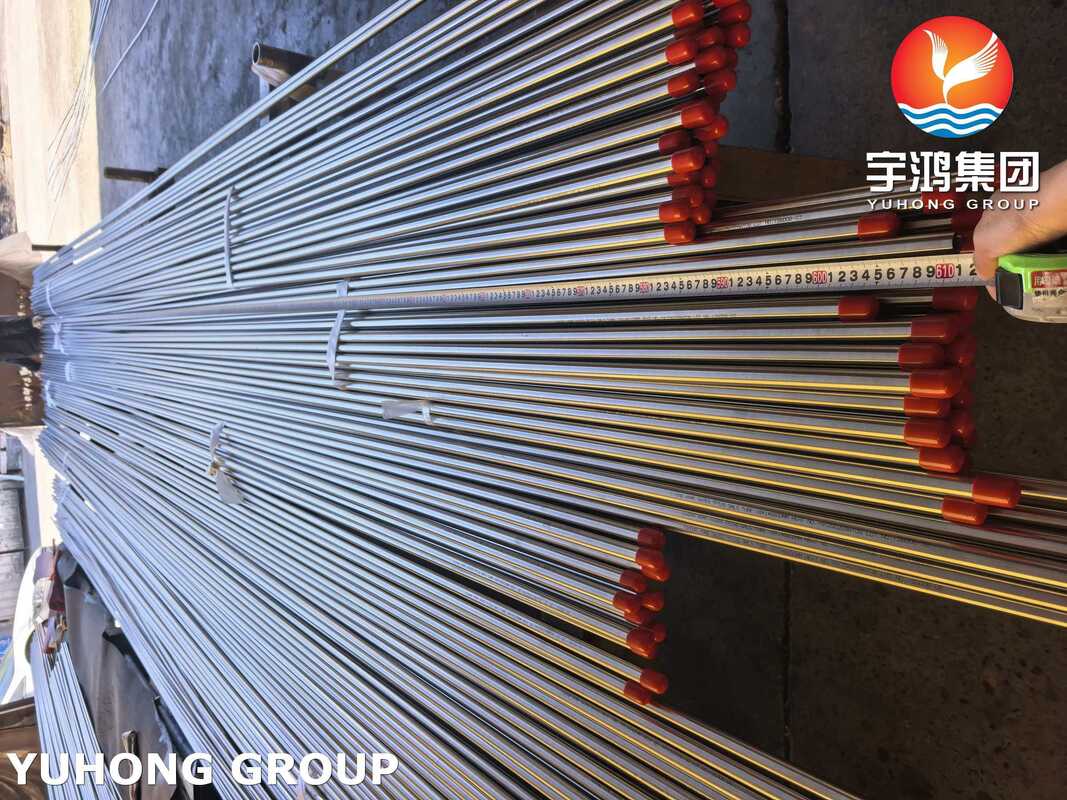

ASTM A269 TP316L Stainless Steel Seamless Tube Bright Annealing Heat Exchanger Tube

Heat Exchanger tubes are designed to transfer heat from one fluid to another. They require precise dimensions (outside diameter and wall thickness), excellent thermal conductivity (for stainless steel), and the ability to be expanded or rolled into tube sheets without cracking.

For heat exchangers, a smooth surface improves heat transfer efficiency and is easier to keep clean (less fouling).

The tube is heat treated in a furnace with a controlled atmosphere (usually hydrogen or a vacuum) rather than open air. Because there is no oxygen present, no scale (oxidation layer) forms on the surface. The tube comes out of the furnace with its original bright, shiny, and smooth surface intact.

Chemical Composition % of ASTM A269 TP316L Stainless Steel Heat Exchanger Tube bright Annealed Tubing

Grade	UNS Designation	C	M	P	S	Si	Ch	Ni	Mo
TP316L	S31603	0.035	2	0.045	0.03	1	16.0–18.0	10.0–14.0	2.00–3.00

Mechanical properties of ASTM A269 TP316L Stainless Steel Heat Exchanger Tube bright Annealed Tubing

Grade	Tensile Str (MPa) min	Yield Str 0.2% Proof (MPa) min	Elong (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
316L	485	170	40	95	217

Physical Properties of ASTM A269 TP316L Stainless Steel Heat Exchanger Tube bright Annealed Tubing

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Elec Resistivity (nΩ.m)
			0-1000C	0-3150C	0-5380C	At 1000C	At 5000C
316/L	8000	193	15.9	16.2	17.5	16.3	21.5	500	740

Bright Annealing (BA) Process Details:

Atmosphere: The furnace uses pure Hydrogen (H₂), Argon, or a vacuum. Hydrogen acts as a reducing agent.
Temperature: Annealing occurs around 1900°F to 2050°F (1040°C to 1120°C) .
Cooling: Rapid cooling (gas quenching) in the protected atmosphere to prevent carbide precipitation.
Surface Finish: The resulting BA finish typically has a surface roughness (Ra) of 0.2 µm to 0.6 µm (8 to 25 micro-inches). This is smoother than standard Pickled finishes.

Application

Heat exchangers, condensers, and boiler tubes.
Chemical processing, petrochemical, and refinery equipment.
Pharmaceutical and food-processing systems.
Power generation (e.g., superheaters, rebollers).
