ASTM A213 TP316L Stainless Steel Seamless Heat Exchanger Tube

Brand Name:	Yuhong
Model Number:	Seamless Tube
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, DNV, CCS, LR

Material:

TP316L

Standard:

ASTM A213 , ASME SA213

Ends:

PE , BE

Testing:

HT , ET

Size:

1/2 Inch - 98 Inch

Application:

Heat Exchanger

Supply Ability:

10000 Tons/Month

Highlight:

98in Stainless Steel Heat Exchanger Tube

TP316L Stainless Steel Heat Exchanger Tube

smls Heat Exchanger Tube

Product Description

ASTM A213 TP316L Stainless Steel Seamless Heat Exchanger Tube

Grade TP316L is a low-carbon austenitic stainless steel with excellent corrosion resistance, especially against sulfuric and chloric acids.

This material offers excellent corrosion resistance, good weldability, and high and low-temperature performance, making it commonly used in the chemical processing, petrochemical, pharmaceutical, food and beverage, and marine industries. TP316L is a versatile and reliable material suitable for a wide range of industrial and commercial applications.

Chemical Composition:

Grade	C	Mn	Si	P	S	Cr	Ni	Mo	N	Fe
TP316L	≤0.03%	≤2.00%	≤0.75%	≤ 0.045%	≤0.030%	16.00-18.00%	10.00–14.00%	2.00–3.00%	≤ 0.10%	Balance

Mechanical Properties:

Grade

Ultimate Tensile Strength

Yield Strength

(0.2% Offset)

Elongation

Hardness

TP316L

485 MPa (70,000 psi) minimum

170 MPa (25,000 psi) minimum

40% minimum in 50 mm

≤ 95 HRB

Key Features:

Corrosion Resistance:

Excellent resistance to a wide range of environmental and chemical exposures, such as those found in the paper, textile, and chemical industries.

Weldability:

Low carbon content reduces the risk of carbide precipitation during welding, maintaining corrosion resistance in as-welded structures.

Temperature Resistance:

Performs well at both low and high temperatures, making it suitable for cryogenic applications and high-temperature environments.

Biocompatibility:

Often used in medical applications due to its non-reactive nature with body tissues.

Applications:

1. Chemical Processing Industry

Heat Exchangers: Used in heat exchangers where corrosive chemicals are processed, ensuring high performance and longevity.
Reactors and Pressure Vessels: Suitable for reactors and pressure vessels dealing with aggressive chemicals at moderate to high temperatures.
Distillation Columns: Ideal for distillation processes involving corrosive substances.

2. Petrochemical Industry

Refinery Equipment: Used in components such as catalytic crackers and reformers that operate in corrosive environments.
Furnaces and Boilers: Suitable for furnace and boiler components where resistance to high-temperature oxidation is required.

3. Power Generation

Condenser Tubes: Used in power plant condensers where high efficiency and corrosion resistance are required.
Heat Recovery Systems: Ideal for heat recovery systems that require durable and corrosion-resistant tubing.
Boilers: Suitable for boiler tubes in power plants.

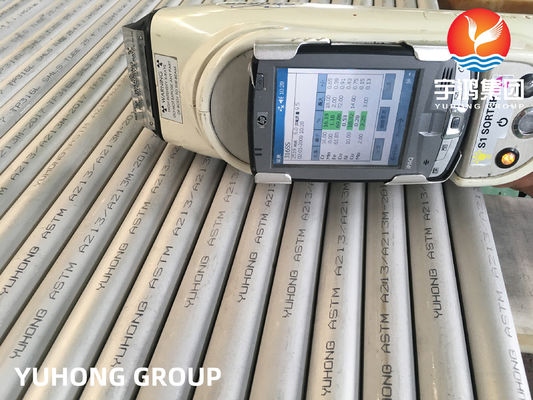

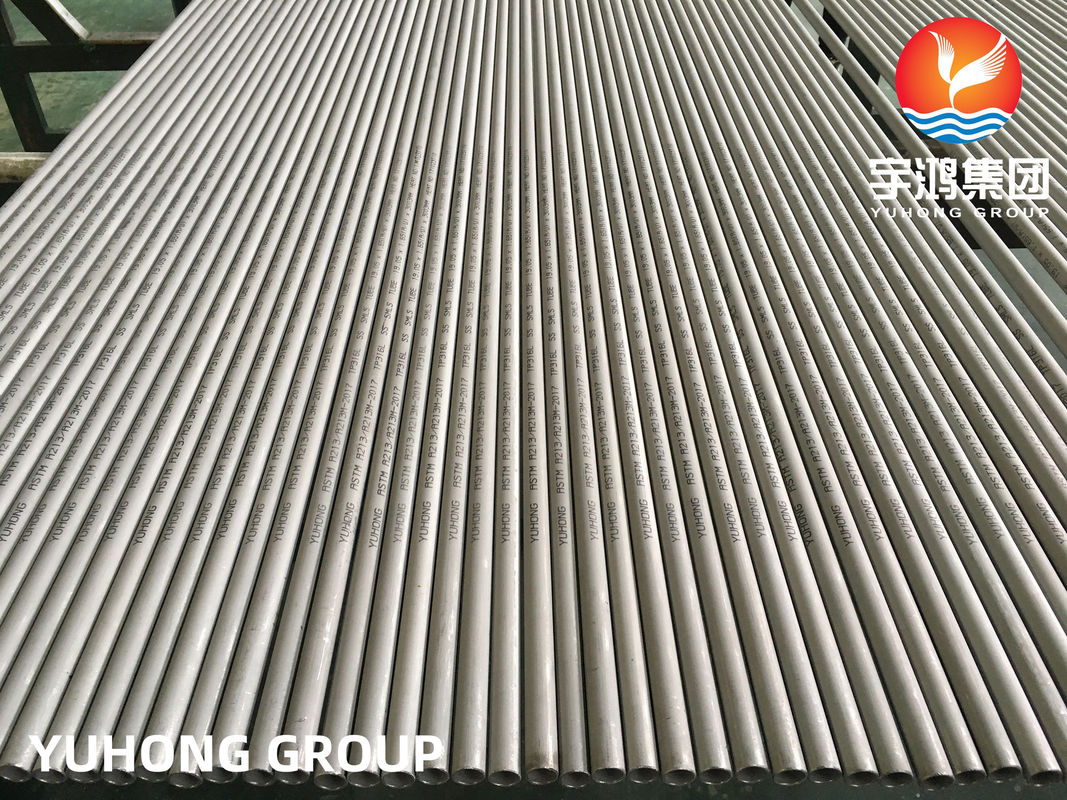

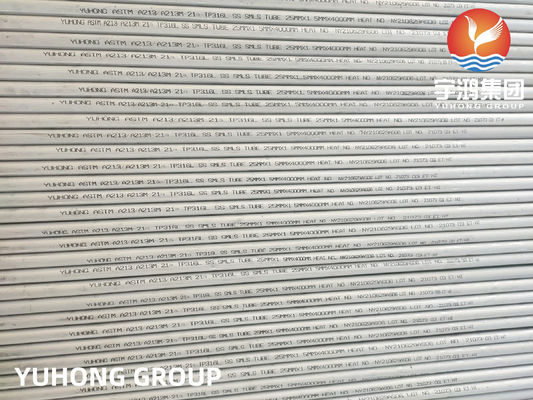

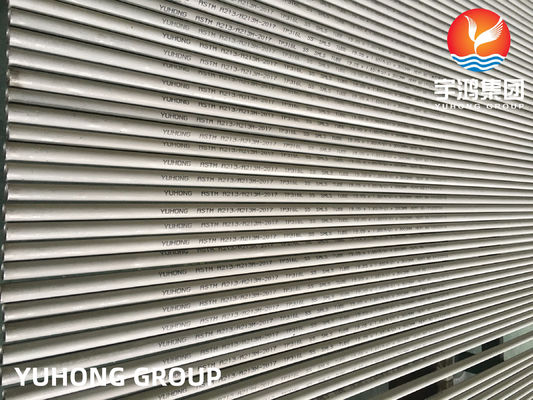

ASTM A213 TP316L Stainless Steel Seamless Heat Exchanger Tube 0
