| Brand Name: | YUHONG |
| Model Number: | Extruded Fin Tubes |
| MOQ: | Depend |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons/month |

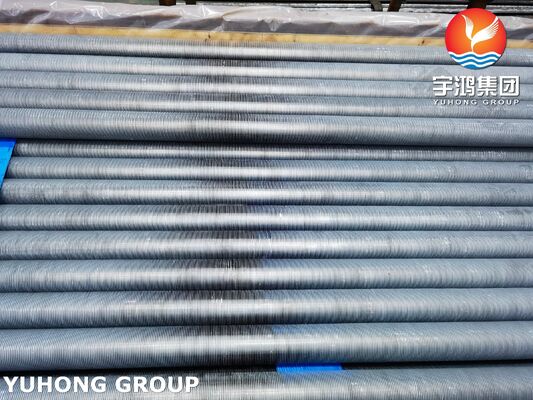

ASTM A179 Carbon Steel Extruded Fin Tubes With Al1060 Fins For Air Cooled Condenser (ACC)
ASTM A179 This specification covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus.ASTM A179 cold-drawn low-carbon seamless pipe is the most popular and cost-effective base pipe choice for extruded finned tubes (especially steel-aluminum extruded finned tubes). Its core advantages lie in four key aspects: processing adaptation, heat transfer, structure, and cost. It perfectly meets the process and working condition requirements of extruded fins.
Seamless structure: No weld seams, uniform wall thickness, avoiding cracking due to stress concentration at weld seams during compression and poor connection of fins.
The King of Cost Performance: Low-carbon steel combined with mature cold drawing technology. The price is only 1/3 to 1/5 of that of stainless steel / copper tubes. In non-severe corrosive conditions, the overall cost is the lowest.
Chemical Composition (%) max
| Grade | C | Mn | P | S |
| A179 | 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 |
Mechanical Properties
| Grade | Tensile Strength min | Yield Strength min | Elongation in 2" or 50mm min |
| A179 | 47ksi (325 MPa) | 26ksi (180 MPa) | 35% |
Definition
Extruded finned tubes are bimetallic tubes whose outer aluminium surface is finned by cold plastic deformation.Extruded finned tubes have the following characteristics:1. High heat transfer performance, small contact thermal resistance;2. The contact area between the fin and the pipe is large, the fit is tight and reliable;3. Good corrosion resistance, stable long-term use performance;4. highly cost effective;5. The fin has good rigidity and is not easy to deform.
Extruded Fin Tubes Applications
Air-cooled heat exchangers & air coolers
Air cooled condensers (ACC) in power plants
Oil coolers & hydraulic system coolers
Gas coolers & compressor intercoolers
Furnace waste heat recovery equipment
Petrochemical & refinery heat exchange units
HVAC & refrigeration heat exchangers
Heat pumps & energy-saving heat transfer equipment
Marine heat exchangers & shipboard cooling systems
Automotive & engine cooling systems
